Automatic flowmeter filler for liquid packaging
Streamline your liquid production with precise filling capabilities, reducing waste and increasing throughput. Perfect for operations seeking accuracy and efficiency across diverse product lines, this filler adapts to various liquid viscosities and offers quick adjustments to changing production demands.
Fills and Dispenses Liquid Products Efficiently

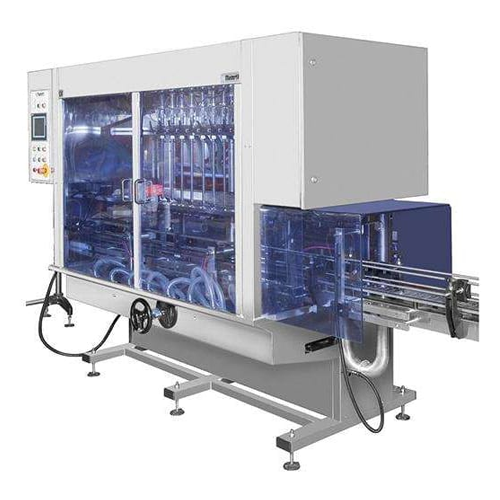

The Masterfil Automatic Flowmeter Filler from Adelphi Masterfil is designed to revolutionize your liquid filling operations across diverse industries. What sets this equipment apart is its exceptional accuracy of up to ±0.2%, ensuring minimal waste and enhanced profitability. It accommodates a vast range of fill volumes from 250ml to 30L, making it suitable for products like detergents, essential oils, and liquid medications. With the capacity to fill up to 4,500 containers per hour using 2 to 12 adjustable filling heads, its flexible configuration supports expanding production needs.
This machine integrates seamlessly with existing lines, requiring minimal downtime for product and container changeovers through its easy-to-recall filling profiles. Its durable construction, featuring hygienic 316L stainless steel and PTFE contact parts, is ideal for harsh environments. The equipment offers variable speed filling to handle both foaming and non-foaming liquids efficiently. Available with ATEX compliance for flammable products, it ensures safety and regulatory adherence. Maintenance is simplified with a user-friendly design and optional CIP system, ensuring cleanliness without extensive downtime.
Benefits
- Enhances production efficiency by filling up to 4,500 containers per hour with precise accuracy.
- Adapts to production growth with an easily expandable number of filling heads.
- Minimizes product wastage and increases profitability through exceptional filling precision.
- Simplifies operation with easy recall of filling profiles, reducing skill requirements.
- Ensures safety and compliance with optional ATEX-certified components for handling flammable liquids.
- Applications
- Personal care,Food,E-liquid,Research,Beverage,Laboratory,Household products,Oil,Cosmetics,Veterinary,Chemical,Lube oil,Agrochemical,Pharmaceutical
- End products
- Vape juices,Sauces,Cleaning liquids,Detergents,Liquid soaps,Shampoos,Veterinary medicines,Engine oils,Liquid medications,Chemical samples,Juices,Fertilizers,Essential oils
- Steps before
- Purification,Mixing,Blending,Emulsification
- Steps after
- Capping,Labeling,Packing
- Input ingredients
- low viscosity liquids,high viscosity liquids,foaming products,non-foaming products
- Output ingredients
- filled containers,up to 4,500 containers per hour,containers from 250ml to 30L
- Market info
- Accuracy
- ±0.2%
- Filling speed
- Up to 4,500 containers per hour
- Filling volume
- 250ml to 30L
- Number of filling heads
- 2 - 12
- Material
- 316L stainless steel / PTFE contact parts
- Automation
- Automatic
- Compliance Option
- ATEX compliant for flammable products
- Product Viscosity
- Low to high viscosity liquids
- Working mechanism
- Flowmeter-based filling
- Batch vs. continuous operation
- Inline Continuous
- Automation level
- PLC
- Changeover time
- Minimal down time
- CIP/SIP
- Not specified,PTFE contact parts for hygiene
- Air incorporation control
- Adjustable nozzles for foaming products
- Cleaning method
- Not specified
- Hygienic grade
- 316L stainless steel / PTFE
- Corrosive resistance (e.g. acids)
- Yes,suitable for harsh environments
- Viscosity handling
- Low to high viscosity liquids
- Foam control
- Nozzle adjustability for foaming products
- Container type
- Multiple profiles for various container types
- Discharge method
- Adjustable nozzles
- Control panel type
- PLC-controlled
- HMI Type
- Touchscreen Interface
- Filling Head Options
- 2 - 12 Fill Heads
- Adjustable Nozzles
- Foaming and Non-foaming Products
- ATEX Compliance
- Optional for Flammable Products
