Automatic detergent shampoo filling solution

Streamline your filling process with precise volume control, achieving consistent product quality and reducing waste across a range of viscosities, including shampoos and detergents.

Fills and Caps Liquid Products

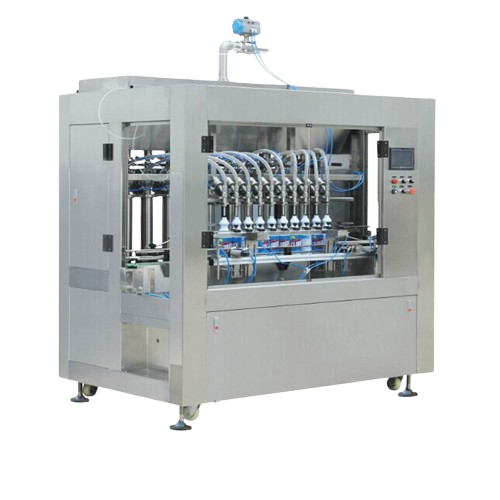

The SNYG-10 from Alps Machinery is an automatic filling machine that excels in handling liquid products with varying viscosities, such as shampoos and detergents. Employing a servo motor-driven volumetric piston system, it ensures fast, precise filling with anti-leakage and anti-foam functionality. Capable of filling 1,000 to 5,000 liters per hour, it integrates seamlessly into existing production lines with its PLC controls and adaptability to different bottle sizes from 100ml to 2L. Constructed from SUS316L stainless steel, it promises durability and chemical resistance. Designed with clean-in-place (CIP) features for easy maintenance, it’s suitable for industries including cosmetics, food, and pharmaceuticals, offering customization to meet specific requirements.

Benefits

  • Enhances production efficiency with high-speed, precise filling.
  • Lowers operational costs by reducing labor needs through automated control.
  • Supports a wide range of product viscosities, increasing production flexibility.
  • Minimizes maintenance downtime with integrated clean-in-place technology.
  • Ensures long-term reliability with durable, corrosion-resistant stainless steel construction.

General


Applications
Cleaning liquids,Medicine,Detergents,Shampoos,Honey,Grease,Cosmetics,Chemical industry,Pesticides,Tomato sauces,Foodstuff,Daily chemical industry,Vegetable oils
End products
Hair conditioner,Sunflower oil,Weed killer,Pasta sauce,Engine oil,Glass cleaner,Hair shampoo,Hand sanitizer,Insect repellent,Olive oil,Liquid laundry detergent,Moisturizers,Lubricant oil,Fabric softener,Liquid soap,Syrup suspension,Salad dressing,Ketchup,Cough syrup,Liquid dish soap,Facial cleanser,Liquid foundation,Sunscreens
Steps before
Purification,Mixing,Blending,Emulsification
Steps after
Capping,Labeling,Packing,Quality Control
Input ingredients
water agent,semi-fluid,paste,cleaning liquid,tomato sauce,honey,vegetable oil,detergent,pesticide,chemical products
Output ingredients
filled plastic bottles,filled glass bottles,bottle sizes from 100ml to 2L
Market info
Alps Machine is known for specializing in the design and manufacturing of industrial engineered-to-order equipment, providing innovative solutions and reliable machinery tailored to the specific needs of industries like beverage and packaging.

Technical Specifications


Capacity
1000-5000 liters per hour
Bottle Sizes
100ml to 2L
Filling system
Volumetric filling / Piston filling
Filling Accuracy
±0.5%
Working Power
220VAC
Air Pressure
6~7 kg/cm²
Air Consumption
1 m³/min
Total Power
3.2kw to 7.5kw
Height
2.3m
Weight
1500kg to 2800kg
Filling Heads
4 to 16 heads

Operating Characteristics


Automation level
PLC-controlled
Batch vs. continuous operation
Batch / Inline Continuous
CIP/SIP
CIP 121°C
Cleaning method
CIP / Manual

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Machine Footprint
Based on height and weight,approx. 2.3m height,weight varies 1500kg-2800kg
Tank Size
Material holding size up to 5L
Filling Heads
4 to 16 heads
Control Panel Type
Automatic,PLC-controlled
Discharge Method
Volumetric/Piston filling
Bottle Size Compatibility
100ml to 5L

Custom Options


Control panel type
PLC-controlled
Filling volume customization
Different filling volume 1L / 2L / 3L / 5L
Filling system type
Volumetric/Piston filling
Integration possibilities
Compatible with various bottle types and sizes
Material
SUS316L
