Automatic cereal bar production line

Efficiently transform diverse ingredients into consistent, high-quality cereal bars with a fully integrated production line that seamlessly handles mixing, forming, cutting, and packaging tasks.

Processes and Forms Cereal Bars Efficiently

The Sesame Peanut Cereal Bar Production Line from Zhengzhou Taizy Machinery Co., Ltd. is a comprehensive solution for snack manufacturers aiming to streamline the production of cereal bars such as peanut sesame bars, granola, and muesli bars. This production line stands out by employing a multi-step process comprising mixing, stirring, conveying, cutting, and forming, enabling seamless production flow and high throughput efficiency.

Designed for integration in food and confectionery processing environments, this equipment handles both liquid and solid ingredients, ideal for creating diverse snacks like rice candy and Shaqima. The automated system supports continuous high-speed operations, ensuring consistent quality and volume output.

The production line features a syrup mixing machine for thorough ingredient integration, followed by a cooling conveyor to maintain texture consistency before entering the snack bar forming machine, which precisely shapes and cuts the bars to desired specifications. The final packaging stage utilizes a high-speed packaging machine, suitable for various snack shapes and sizes, ensuring fresh product delivery.

Constructed with stainless steel and fitted with a user-friendly interface for easy control and monitoring, the line offers improved energy efficiency with its variable-speed motor. The equipment is configured for easy cleaning and maintenance, making it highly suitable for compliance with food safety standards. Customization options, such as adjustable bar thickness and length, accommodate diverse product requirements, while engineering support is available to tailor machine operations to specific processing needs.

Benefits

  • Enhances production efficiency with continuous and automated operation.
  • Reduces labor costs through easy-to-use interface and minimal manual intervention.
  • Maintains product consistency with precise ingredient mixing and forming controls.
  • Optimizes energy use with variable-speed motor, lowering operational expenses.
  • Facilitates compliance with food safety standards through easy cleaning and maintenance.

General


Applications
Oat bars,Granola bars,Candy,Snacks,Muesli snack bars,Nuts,Sweets,Cereal bars,Rice candy
End products
Muesli bars,Frozen rice candy,Shaqima,Oatmeal bars,Fried rice candy,Black rice cake,Peanut sesame bars,Peanut chikki,Peanut brittle
Steps before
Mixing ingredients,Cooking sugar syrup
Steps after
Cooling,Packing
Input ingredients
syrup,grains,milk,sugar,peanuts,puffed rice,wheat,nuts
Output ingredients
cereal bar snacks,peanut sesame bar,peanut chikki,granola bar,muesli snack bar,peanut candy,Shaqima,rice candy,frozen rice candy,fried rice candy,black rice cake
Market info
Taizy Food Machinery is known for manufacturing industrial food processing equipment, specializing in engineered-to-order (ETO) machinery. They have a reputation for innovative, high-quality solutions tailored to meet various customer specifications globally.

Technical Specifications


Voltage
380V/50Hz
Power
15kw
Size
1470*905*990mm
Weight
480kg
Capacity
10KG/once
Packaging speed
50-300pcs/min
Packaging length
50-300mm
Packaging width
50-310mm
Automation
Automatic cutting and forming
Material
Stainless steel and PVC for conveyor belt
Cooling method
3 fans for cooling
Power
2.5kw (Packaging machine)
Capacity
3-4t/h (Forming machine)
Power
2.2kw (Forming machine)
Size
11800*1000*1200mm (Forming machine)
Volume
∮840mm
Heating method

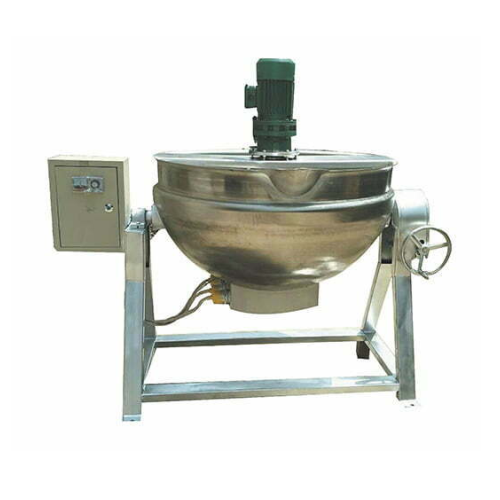

Electric heating (Sugar boiled pot)
Thickness and length adjustability
Achieved by six handles on forming machine

Operating Characteristics


Automation level
PLC
Batch vs. continuous operation
Batch
Changeover time
Quick
Cleaning method
Manual
Energy efficiency
High efficiency

Material Compatibility


Cleanability
High
Corrosive resistance (e.g. acids)
Yes
Density/particle size
Variable


CE marking
Yes
FDA compliance
Yes
FDA materials
Yes
GMP Compliance
Yes

Physical Characteristics


Machine footprint
1470*905*990mm (Sugar boiled pot),700*800*1200mm (Mixing machine),2500*820*1080mm (Conveyor),11800*1000*1200mm (Forming machine),3800*780*1500mm (Packaging machine)
Construction material
Stainless steel
Conveyor belt material
PVC
Control panel type
Imported single-chip microcomputer,man-machine interface

Custom Options


Control panel type
Man-machine interface,frequency conversion control
