Automatic bagging station for powdery products

Streamline your packaging line with a reliable solution designed for high-speed, precise bagging of powdery products, ensuring consistency and efficiency while minimizing product waste.

Automates Bagging and Weighing of Powder Products

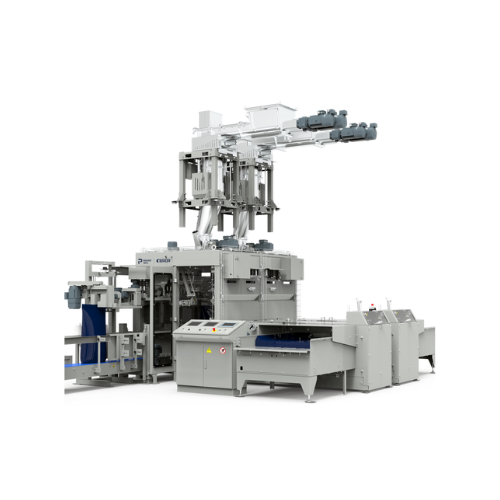

The CHRONOS OMP-2090 B from Bühler, in collaboration with Premier Tech, is a fully automatic bagging station designed for precise handling of powdery products like flour, semolina, and maize grits. Equipped with integrated weighing and dosing systems, it ensures accuracy within ±0.2% at 2σ, effectively reducing product waste and optimizing throughput at up to 900 bags per hour. This system automates the entire bagging process, seamlessly integrating into existing operations with its compact monobloc structure. Ideal for food and feed industries, it supports various bag types and materials such as paper and woven polypropylene. Fully PLC-controlled, it offers a reliable solution with minimal downtime, thanks to its robust design and comprehensive safety features. The unit prioritizes hygiene and operational safety, making it suitable for environments demanding high cleanliness standards. Custom configurations and engineering support are available to meet specific production needs.

Benefits

  • Increases profitability by minimizing product waste with precision bagging accuracy of ±50 g.
  • Enhances operational efficiency with a fully automatic and robust design, reducing labor costs.
  • Maximizes uptime through a reliable bag handling system suitable for diverse bag types.
  • Ensures high product and operational safety with consistent hygienic design features.
  • Integrates seamlessly into existing operations with its compact monobloc structure.

General


Applications
Flour,Powdery products,Maize grits,Fine semolina
End products
Cornmeal bags,White flour bags,Semolina pasta bags,Baking powder bags,Protein powder bags
Steps before
Milling,Grinding,Flaking
Steps after
Packing,Palletizing,Sorting
Input ingredients
powdery products,flour,fine semolina,maize grits
Output ingredients
10 to 50 kg bags,open-mouth bags,pillow bags,bags with gusset,crossbottom bags,pasted flat hexagonal bottom bag
Market info
Buhler is renowned for manufacturing advanced process solutions for food, feed, and advanced materials. They are highly regarded for their innovation in milling technology and equipment quality.

Technical Specifications


Automation
Fully automatic
Bagging Speed
Up to 900 bags per hour
Bag Size
10 to 50 kg
Accuracy
±0.2% at 2σ
Bag Type
Open-mouth
Bag Material
Paper,Woven Polypropylene
Bag Closing System
Integrated
Product Compatibility
Powdery and non-free flowing products

Operating Characteristics


Automation level
Fully automatic
Batch vs. continuous operation
Inline Continuous
Cleaning method
Manual
Maximize uptime
Robust design and bag handling

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Powdery product handling
Flour,fine semolina,maize grits
Container size
10 to 50 kg bags
Consistency and material type compatibility
Non-free flowing products
Bag material
Paper,woven polypropylene,woven polypropylene with inner liner

Physical Characteristics


Compact footprint
Monobloc design
Discharge method
Open-mouth bag handling
Control panel type
Integrated control system
Machine footprint
Compact and easily integrable
Bag type
Pillow bags,Bags with gusset,Crossbottom bags,Pasted flat hexagonal bottom bag
Bag material
Paper,Woven polypropylene,Woven polypropylene with inner liner
