Autoclave passive opener for sterilisation of passive valves

When sterilising passive valves, ensuring maximum exposure of product contact surfaces is crucial for maintaining sterility in production workflows.

Opens Passive Valves for Sterilization Process

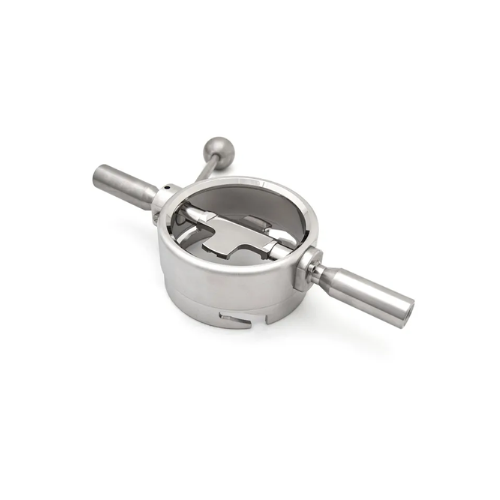

The Autoclave Passive Opener, by ChargePoint Technology, is engineered to effectively sterilize passive valves and integrated containers in pharmaceutical, biotech, and chemical industries. It stands out by securely opening passive units without requiring a full active assembly, using a hygienic tri-clamp option for secure docking within an autoclave. The design maximizes exposure of product contact surfaces through a unique ‘cruciform’ disc configuration, ensuring comprehensive sterilization during cleaning cycles. Compatible with valve sizes DN50 (2”) to DN200 (8”), this opener is constructed from corrosion-resistant PEEK and 316L or Alloy 22 materials, with FKM or FFKM seals for optimal chemical resistance. It supports GMP-compliant operations, allowing efficient drainage of condensate to maintain sterility assurance. Suitable for sterilization and containment of APIs, sterile powders, and biologic materials, it integrates seamlessly into manual and batch operations for demanding sterility and containment solutions.

Benefits

  • Enhances sterility assurance by fully exposing product contact surfaces to the cleaning cycle.
  • Reduces equipment complexity and costs with the need for minimal active components.
  • Provides versatile integration with optional hygienic tri-clamp connection for secure docking.
  • Ensures efficient drainage and reduced contamination risk thanks to its GMP-compliant design.
  • Improves chemical compatibility with robust PEEK and Alloy 22 material construction.

General


Applications
Containment solutions,Fine chemicals,Sterile powders,Active pharmaceutical ingredients (apis),Sterility assurance,Biopharmaceuticals,Powder containment,Industrial biotechnology applications,Pharmaceuticals
End products
Controlled-release capsules,Sterile early-intermediate compounds,Pharmaceutical tablets,Monoclonal antibodies,Api powders,High-purity chemical reagents,Biologic vaccines,Sterile injectable formulations,Precision fermentation products
Steps before
Cleaning,Valve Inspection,Pre-Sterilization Setup
Steps after
Sterilization,Packaging,Shipment Preparation
Input ingredients
passive valve,passive unit,connected container,IBC
Output ingredients
sterilised product contact surfaces,sterilised sealing areas,sterilised passive valve,sterilised connected container,sterilised IBC
Market info
Chargepoint Technology is known for its expertise in designing and manufacturing high containment and sterile transfer solutions for pharmaceutical and biopharmaceutical industries, particularly in powder containment and aseptic transfer systems.

Technical Specifications


Valve Size Compatibility
DN50 (2”) to DN200 (8”)
Material of Construction
PEEK and 316L or Alloy 22
Seal Material
FKM or FFKM

Operating Characteristics


Working mechanism
Passive valve opening
Integrated steps
Sterilisation in autoclave
Cleaning method
Autoclave cycle
Attached container operation
IBC compatibility
Condensate drainage
GMP design drain
Automation level
Manual interlocks

Material Compatibility


Abrasion resistance
Yes
Biological compatibility
Yes
Cleanability
High
Corrosive resistance (e.g. acids)
Yes
Density/particle size
0.5–2.5 g/cm³

Product type Characteristics


Heat sensitivity
Resistant to autoclave temperatures
Container compatibility
IBC / Passive valve containers
Sterilization capability
Ensures product contact surfaces are sterilized

Physical Characteristics


Valve size compatibility
DN50 (2”) to DN200 (8”)
Material of construction
PEEK and 316L or Alloy 22
Seal material
FKM or FFKM
Compact footprint
Yes

Custom Options


Valve size compatibility
DN50 (2") to DN200 (8")
Material of construction
PEEK and 316L or Alloy 22
Seal material
FKM or FFKM
Connection type
Hygienic tri-clamp
