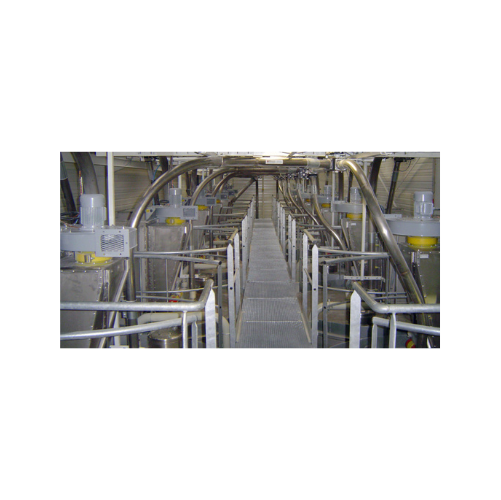

Atex certified flanged round dust collectors

Designed for potentially explosive environments, these flanged round dust collectors ensure optimal filtration and separation, enhancing safety and compliance in your facility’s dust management processes.

Collects and Separates Dust in Explosive Atmospheres

The WAMFLO ATEX Flanged Round Dust Collector from WAMGROUP is engineered to enhance safety in environments susceptible to explosive atmospheres. This collector specializes in capturing dust particles through a compressed air pulse-jet system, featuring vertically mounted filter elements like bags or cartridges. Ideal for industries such as feed, food, plastics, and chemicals, it effectively processes dust in continuous, automated operations. With filter surfaces ranging from 1 to 48 m², and air volumes between 60 and 6,000 m³/h, it is suitable for diverse applications from animal feed to pharmaceuticals.

The stainless-steel casing is designed for anti-corrosion, and its increased thickness ensures robust explosion resistance. The system operates with multi-voltage support and an integrated modular electronic control panel to optimize cleaning cycles as per specific work processes. ATEX-certified for Zones 21 and 22, it ensures compliance with stringent safety regulations. Maintenance is streamlined with a quick and safe filter replacement system, and customization options include fans or connecting flanges for centralized dust suction, various material constructions, and electronic control enhancements for precise operation management.

Benefits

  • Enhances safety in explosive environments with ATEX certification.
  • Minimizes maintenance time with easy, quick filter replacements.
  • Reduces emissions due to certified low-emission filter elements.
  • Increases durability with corrosion-resistant stainless-steel construction.
  • Allows seamless integration into existing systems with configurable options.

General


Applications
Chemicals,Lime,Animal feed,Feed,Petfood,Pharmaceuticals,Minerals,Detergents,Cosmetics,Soap,Flour,Plastics,Foods,Gypsum,Rice,Refractory products,Cement
End products
Liquid detergent,Cornflakes,Gypsum wallboard,Bar soap,Cement bags,Vitamin tablets,White flour,Eye shadow,Face cream,Rice flour,Granola,Fish feed pellets,Pet kibble,Shampoo,Pvc pellets,Rubber gloves,Instant noodles
Steps before
Dust Generation,Material Transport,Material Processing,Grinding,Mixing
Steps after
Dust Collection,Air Filtration,Material Conveying,Ventilation,Packing
Input ingredients
dust particles,dusty air,suspended particles,air flow
Output ingredients
filtered air,collected dust
Market info
WAMGROUP is known for its expertise in manufacturing bulk material handling and processing equipment, including screw conveyors, dust collectors, and valve systems, with a strong reputation for innovation, quality, and global market presence.

Technical Specifications


Filter surface
1 ~ 48 m² (11 ~ 517 sq ft)
Air volume
60 ~ 6,000 m³/h (35 ~ 3,530 cfm)
Filter elements
round bags,elliptical bags,cartridges,POLYPLEAT
Compressed air
pulse-jet cleaning (4 ~ 6 bar)
Dust temperature
-20 ~ 80 °C (-4 ~ 176 °F)
Design material
304 stainless-steel
ATEX-version
Zone 22 (Category 3D),Zone 21 (category 2D)
PRED
1 barg
Electronic control panel
Multi-voltage and multifunctional
Filter replacement
Quick and safe,from clean or dirty air side

Operating Characteristics


Airflow control
60 ~ 6,000 m³/h
Automation level
Integrated modular electronic control panel
Cleaning method
Compressed air pulse-jet cleaning
Batch vs. continuous operation
Continuous operation
Filter replacement
Quick and safe from clean or dirty air side
Pressure resistance
ATEX reduced pressure (PRED= 1 barg)

Material Compatibility


Abrasion resistance
Yes
Corrosive resistance (e.g. acids)
Yes
Cleanability
Easy to clean
Density/particle size
0.5–2.5 g/cm³
Heat resistance
Up to 80°C (176°F)

Physical Characteristics


Casing Material
304/316 Stainless Steel
Casing Shape
Cylindrical
Filter Type
Round Bags,Elliptical Bags,Cartridges,POLYPLEAT
Discharge Method
Flanged Bottom Ring
Installation Type
Flanged

Custom Options


Suction Fan Option
Available with or without suction fan
Dust collector versions
Insertable and/or vacuum versions available
Material Options
304 / 316 stainless-steel casing and seal frame
Explosion Relief
ATEX explosion relief panel or appropriate pre-arrangement
