Aseptic filling line for biopharmaceuticals

Streamline your aseptic filling process with precision dosing and minimal space requirements, ensuring sterility and efficiency in high-speed operations for advanced therapies and biopharmaceuticals.

Fills and Seals Sterile Injectable Vials

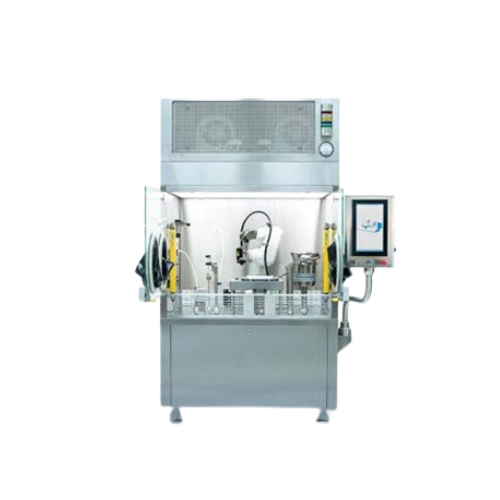

The Crystal™ L1 Robot Line in RABS, developed by SKAN, is a cutting-edge aseptic filling line tailored for the pharmaceutical and biotech industries. It excels in the precise filling of sterile injectable drugs, including monoclonal antibodies, viral vectors, and CAR-T cell therapies. Utilizing a high-class cleanroom 6-axis robotic arm, the system fills, seals, and caps vials with up to 500 unit throughput per hour. Its operation is managed via a Human Machine Interface, ensuring exceptional dosing accuracy. Designed to integrate into existing production lines, it features a Restricted-Access Barrier System (RABS) that maintains a controlled environment for sensitive biotherapeutics. The Crystal™ L1’s minimal footprint and single-use materials allow for rapid deployment and reduced cross-contamination risks. Furthermore, it meets cGMP and CFR 21 Part 11 compliance, ensuring adherence to industry standards while supporting scalability from pilot operations to full-scale production.

Benefits

  • Enhances production efficiency with high-speed, precise vial filling.
  • Simplifies compliance with cGMP and CFR 21 Part 11 standards.
  • Minimizes contamination risk through single-use material utilization.
  • Accelerates production scale-up with rapid, on-site installation.
  • Optimizes workspace with a compact footprint and integrated RABS.

General


Applications
Next generation biologics,Compounding,Biopharmaceuticals,Cell and gene therapy,Aseptic filling
End products
Car-t cell therapies,Customized compounded medications,Viral vectors,Monoclonal antibodies,Sterile ophthalmic solutions,Rna vaccines,Freeze-dried biotherapeutics,Injectable drugs,Lipid nanoparticles
Steps before
Bulk product container preparation,Aseptic liquid connection setup,AT-Closed Vial® preparation
Steps after
Sterilization,Container closure integrity verification,Packing
Input ingredients
bulk product container,single-use material,AT-Closed Vial®,aseptic liquid connector
Output ingredients
filled AT-Closed Vial®,capped and re-sealed vials,processed AT-Nest™
Market info
Aseptic Technologies is known for its innovative solutions in the field of aseptic filling and finishing systems. They specialize in advanced equipment designed for sterile manufacturing processes, particularly in the pharmaceutical and biotech industries.

Technical Specifications


Filling volume
0.1 ml to 50 ml
Filling speed
Up to 500 vials/hour
Automation
Robotic / HMI-Controlled
Accuracy
High dosing accuracy
Footprint
Minimal
Installation time
Installed and qualified in 1 week
Compliant Standard
CFR 21 part 11
Single-use material
Yes
Operating environment
Grade B
Connection type
Aseptic liquid connector

Operating Characteristics


Automation level
Robotic arm / HMI controlled
Batch vs. continuous operation
Batch
Changeover time
Minimum
CIP/SIP
N/A (Single-use material)
Cleaning method
Single-use materials
Integrated Steps
Filling,laser re-sealing,capping
Operating Environment
Grade B (RABS)
Working Mechanism
6-axis robotic arm

Material Compatibility


Biological compatibility
Aseptic filling process
Cleanability
Minimal footprint
Corrosive resistance (e.g. acids)
cGMP materials
Single-use materials
Yes

Product type Characteristics


Container type
AT-Closed Vial®

Physical Characteristics


Compact footprint
Minimal
Machine footprint
Small
Filling volume
0.1 ml to 50 ml
Filling speed
Up to 500 vials/hour
Single-use material
Yes
Control panel type
HMI (Human Machine Interface)
Discharge method
Mousehole mechanism

Custom Options


Control panel type
Human Machine Interface (HMI)
Integration possibilities
AT-Port™ System for Aseptic Liquid Connection
Robotic Arm
6-axis Cleanroom Robotic Arm
Footprint
Minimal
Material Usage
Single-use materials
Filling Volumes
0.1 ml to 50 ml
Vial Processing Capability
Up to 500 AT-Closed Vial® per hour
