Apron extractor weigh feeder for large-scale material extraction
Achieve precise material dosing and metering under challenging conditions with this robust, durable feeder designed for seamless extraction of high-moisture and abrasive materials in continuous industrial processes.
Automates Precise Material Dosing and Extraction

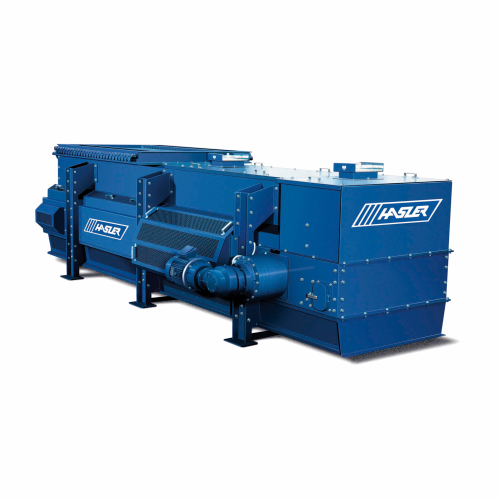

The MAMMUTHUS Apron Extractor Weigh Feeder from HASLER Group is a robust solution designed for industries that handle challenging, high-volume material dosing and extraction tasks. This equipment excels with its dual functionality combining an apron feeder’s strength with belt feeder’s metering precision. It’s widely applied in cement, fertilizers, mining, and specialty chemicals processing, efficiently managing diversified materials like clinker, gypsum, and copper concentrate. With a processing capacity adaptable to high flow rates, it features automated, PLC-controlled operations seamlessly integrating within continuous production lines. Its construction uses durable materials suited for harsh conditions, minimizing maintenance with features like integrated inspection doors. Customization options in apron widths and lengths allow it to fit varied industrial requirements, ensuring optimal performance.
Benefits
- Ensures precise material dosing with a metering accuracy of ±1%, enhancing product consistency.
- Reduces operational footprint and maintenance needs by integrating extraction and metering into one compact unit.
- Adapts to rigorous industrial environments with robust construction for continuous 24/7 operation.
- Minimizes maintenance downtime with easy-access inspection doors for quick serviceability.
- Configurable for diverse industrial needs with customizable apron widths and lengths, enhancing application versatility.
- Applications
- Polymers,Amino acids,Hydrometallurgy,Flue gas desulphurization (fgd),Water treatment,Fertilisers,Metals processing,Metals recycling,Minerals processing,Specialty acids,Technical ceramics,Resins,Mining,Aluminium slags,Cement
- End products
- Aluminium ingots,Citric acid,Alumina powder,Recovered metals,Ammonium nitrate,Specialty ceramic components,Amino acid supplements,Clinker,Limestone aggregates,Gypsum,Iron ore pellets,Urea granules,Pvc pellets,Calcined clay,Epoxy resin blocks,Sulfuric acid,Zinc concentrate,Copper concentrate
- Steps before
- Mining,Extraction,Crushing,Material Loading
- Steps after
- Screening,Material Storage,Blending,Packing
- Input ingredients
- limestone,gypsum,clay,pozzolana,iron ore,steel,copper,zinc
- Output ingredients
- precisely metered materials,extracted materials,discharged materials,weighed materials
- Market info
- HASLER Group is known for manufacturing and supplying industrial engineered-to-order (ETO) equipment, specializing in mixing, filtration, and sealing solutions for various industries, with a reputation for quality and innovation in handling challenging process applications.
- Accuracy
- ±1%
- Automation
- Controlled by SCMIII controller
- Capacity
- High flow rates
- Material Compatibility
- Difficult-to-extract materials
- Durability
- Robust construction for harsh conditions
- Modularity
- Five apron widths and four lengths
- Maintenance
- Simple annual check
- Inspection Doors
- Integrated for easy servicing
- Working mechanism
- Metal apron extractor with belt feeder
- Integrated steps
- Discharge and metering in single equipment
- Automation level
- Controlled by SCMIII controller
- Batch vs. continuous operation
- Continuous
- Changeover time
- Minimal due to modularity
- Cleaning method
- Inspection doors for maintenance
- Material handling capacity
- Handles difficult-to-extract materials
- Density/particle size
- 0.5–2.5 g/cm³ / 50–1000 µm
- Machine footprint
- Compact
- Metal apron width
- Multiple size options
- Apron length
- Multiple length options
- Discharge method
- Weigh feeder with metal apron
- Enclosure
- Entirely enclosed for continuous process
- Control panel type
- SCMIII controller compatible
- Flow meters Integration
- Yes
- Inspection doors
- Integrated
- Control panel type
- SCMIII controller
- Integration possibilities
- Material flow control system
- Modularity
- Five apron widths and four lengths
- Connectivity
- Real-time data transmission
- Scraper system
- Chain-driven recovery system
- Barred gate
- Equally spaced bars
