Agitated nutsche filter dryer for solid-liquid separation
Achieve high-purity solid-liquid separation with optimized throughput and contamination prevention, addressing critical process challenges in achieving homogeneous products across varied production lines.
Performs Filtration, Separation, and Vacuum Drying

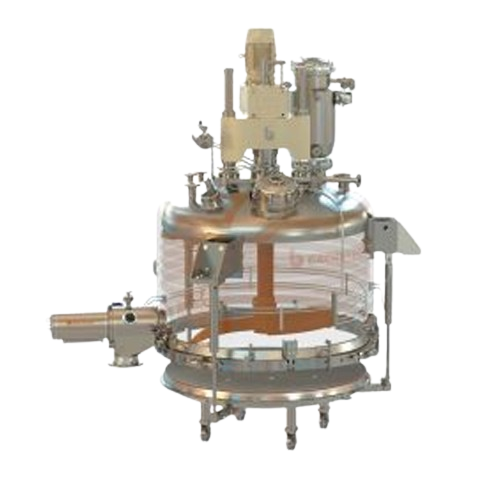

The Nutsche Filter Dryer (FNB-S) by Bachiller combines agitated pressure filtration and vacuum drying to meet demanding solid-liquid separation needs, especially in pharmaceuticals and fine chemicals. Its hermetic design prevents contamination, making it ideal for hazardous materials. Operating under pressures up to 3 bar(g) and temperatures up to 200°C, this equipment supports reactions, drying, and cake washing in batch modes. Its versatile filtering surface ranges from 0.07m² to 15m², with capacities from 19L up to 15,000L, catering to various production scales. Constructed from durable materials like Hastelloy, and compliant with cGMP and EHEDG standards, it ensures purity while minimizing waste. The FNB-S integrates smoothly into production lines with automation options and energy-efficient features, supported by CIP/SIP systems for streamlined cleaning. Optional mirror polishing and electro-polishing enhance its corrosion resistance, while hardware and software control options offer precise process management.
Benefits
- Eliminates contamination risk with hermetic processing.
- Saves time and labor costs through semi-automatic and automatic batch operations.
- Ensures high product purity suitable for sterile applications.
- Reduces energy usage through optimized vacuum drying processes.
- Complies with GMP and EHEDG standards for pharmaceutical and fine chemical industries.
- Applications
- Polymers,Vitamins,Fine chemicals,Chemical additives,Natural extracts,Metallic powders,Animal extracts,Essential oils,Biochemicals,Pigments,Flavorings,Pharmaceuticals
- End products
- Iron oxide powders,Protein peptides,Fish oil extracts,Antibiotic crystals,Synthetic polymers,Lemon essential oil,Active pharmaceutical ingredients (apis),Vanilla flavor extract,Synthetic pigments,Vitamin c supplements,Plant-based extracts
- Steps before
- Reaction,Suspension,Re-dissolution
- Steps after
- Filtration,Washing,Drying
- Input ingredients
- solid-liquid mixture,suspensions,raw pharmaceutical ingredients,chemical substances,slurries,metallic powders,minerals,colorants,polymers,natural extracts
- Output ingredients
- purified solids,filtered solids,dry solids,antibiotics,API's,vitamins,biotechnology products,chemical additives,essences and flavours,food additives
- Market info
- Bachiller specializes in industrial engineered-to-order equipment, known for high-quality process equipment in the chemical, petrochemical, pharmaceutical, and food industries. They are recognized for their expertise in designing and manufacturing pressure vessels, reactors, and mixing equipment.
- Filtering Surface
- 0.07 m² to 15 m²
- Operation Capacity
- 19L to 15,000L
- Operation Pressure
- 3 bar(g)
- Operation Temperature
- Up to 200º C
- Design Standards
- ASME VIII div.1,AD-2000,EN-13445
- Automation Level
- Full automatic / semi-automatic
- Batch Operation
- Yes
- Drying Method
- Vacuum / Ultra Vacuum
- Material Compatibility
- Textile,Synthetics,Metal,Multilayer (Sintered),Ceramic
- Heating/Cooling
- Body and/or Agitator
- Sealing System
- SUPERCLAMP
- Cake Unloading
- Lateral Valve
- Operation mode
- Batch operation
- Automation level
- Full automatic and semi-automatic
- Pressure handling
- Up to 3 bar(g)
- Temperature range
- Up to 200º C
- Drying method
- Vacuum drying
- CIP/SIP
- Available with Riboflavin test validation
- Changeover time
- Quick due to easy exchangeable filtering cloth
- Cake unloading mechanism
- Lateral valve
- Cake washing system
- Integrated
- Abrasion resistance
- High
- Biological compatibility
- GMP and EHEDG compliant
- Cleanability
- Easy exchangeable filtering cloth
- Corrosive resistance (e.g. acids)
- Hastelloy C22
- Cake washing system
- Available
- Filtering surface
- 0.07–15 m²
- Operation capacity
- 19–15,000 L
- Operation pressure
- 3 bar(g)
- Operation temperature
- Up to 200°C
- Bottom filtering system
- Automatic lifting and lowering
- Bottom sealing system
- SUPERCLAMP
- Agitation
- Agitated Nutsche system
- Heating/Cooling
- Body and/or agitator
- Filter types
- Textile,synthetics,metal,multilayer (sintered),ceramic
- Unloading method
- Lateral valve
- Construction material
- Hastelloy C22
- Insulation
- Welded stainless steel cover
- Internal finish
- Mirror polished Ra ≤ 0.6 µm,electro polished Ra ≤ 0.2 µm
- External finish
- According to requirements up to mirror polishing
- Drying system
- Vacuum drying
- Footprint
- Compact
