Accurate net weight filling for liquid and semi-liquid products

Ensure precise filling of diverse viscosities, from thin juices to thick creams, with advanced weighing technology that optimizes production accuracy and reduces material waste.

Accurately Fills Liquid and Semi-Liquid Products

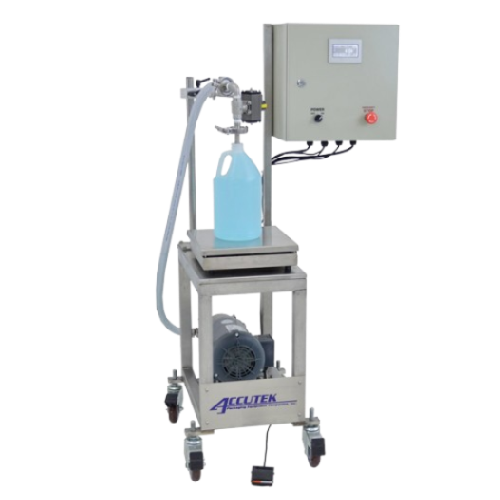

The AccuWeight from Accutek Packaging is a versatile net weight filling machine designed to provide precision in the packaging process for liquids and semi-liquids. This equipment offers a reliable solution for industries ranging from food and beverages to chemicals and cosmetics, ensuring each container is filled with exact amounts. Operating with a pneumatic system, it supports hazardous product handling and integrates seamlessly into automated production lines with multi-speed filling and adjustable nozzle settings. Capable of filling a variety of containers, the AccuWeight is ideal for applications like olive oil, ketchup, detergents, and more. Featuring a durable stainless steel construction, it is resistant to corrosion and suitable for rigorous industrial environments. Its design facilitates easy maintenance and supports a clean-in-place system for efficient cleaning. Configurations include automatic bottle indexing and various nozzle options to meet specific production needs.

Benefits

  • Ensures precise product dosing to minimize waste and control costs.
  • Adapts to varied production lines, reducing setup time and increasing flexibility.
  • Enhances operational safety with pneumatic operation suitable for hazardous materials.
  • Requires minimal manual intervention, lowering labor costs and increasing efficiency.
  • Constructed from stainless steel for durability and easy sanitation, ensuring long service life.

General


Applications
Sauces,E-liquids,Thin food products,Household chemicals,Perfumes,Viscous products,Heavy food products,Non-carbonated beverages,Oils,Liquid products,Semi-liquid products,Automotive fluids,Dressings,Industrial chemicals,Cannabis products,Glues,Creams,Essential oils
End products
Ketchup,Olive oil,Vape juice,Cannabis oil,Paint,Lavender oil,Milk,Honey,Brake fluid,Mayonnaise,Detergent,Juice,Moisturizing cream,Epoxy adhesive,Salad dressing,Tomato sauce
Steps before
Unscrambling,Preparation,Emulsification
Steps after
Capping,Labeling,Packing
Input ingredients
liquid products,semi-liquid products,foamy products,corrosive products,heated products
Output ingredients
filled drum containers,filled bucket containers
Market info
Accutek is known for manufacturing high-quality engineered-to-order (ETO) equipment, specializing in custom automation and packaging solutions. They are reputed for their innovation, reliability, and ability to meet complex industrial needs.

Technical Specifications


Height
75” (1,905 mm)
Length
28” (711.2 mm)
Depth
28” (711.2 mm)
Weight
Approx. 160 lbs. (72.57 kg)
Product Speed
Up to 5 CPM
Fill Size
2 oz – 7 gal
Viscosity Range
up to 2000 cps (Centipoise)
Electrical
110 VAC – 5 amps
Air Requirements
90 PSI @ 3 CFM
Foamy Product
YES
Corrosive Product
YES
Heated Product
YES
Particulates
NO
Pneumatic operation
for hazardous products
Suckback nozzle
to reduce dripping
Casters
for easy relocation
Fume hood
for hazardous liquids

Operating Characteristics


Automation level
Automatic / Manual / Semi-automatic
Batch vs. continuous operation
Batch / Inline Continuous
CIP/SIP
CIP 121°C / SIP 135°C
Multi-speed filling setpoints
Adjustable
Automatic fill sequencing
Yes
Pneumatic operation for hazardous products
Yes
No container no fill sensor
Yes
Remote emergency stop
Yes
Suckback nozzle to reduce dripping
Included

Material Compatibility


Corrosive resistance
Yes
Cleanability
Sanitary stainless steel contact parts
Biological compatibility
Food grade manifold
Material used
Stainless steel

Physical Characteristics


Height
75” (1,905 mm)
Length
28” (711.2 mm)
Depth
28” (711.2 mm)
Weight
Approx. 160 lbs. (72.57 kg)

Custom Options


Filling nozzle
Adjustable stainless steel
Fill sequencing
Automatic
Fill platform
Roller conveyor
Nozzle options
Various types
Relocation
Casters
Emergency Stop
Remote
Liquid Handling
Fume hood available
