50l jacketed glass reactor with explosion-proof motor

Enhance your reaction processes with precise temperature and pressure control in hazardous environments, ensuring reliable results for volatile and reactive chemicals in laboratory and industrial settings.

Controls Temperature and Pressure for Safe Chemical Reactions

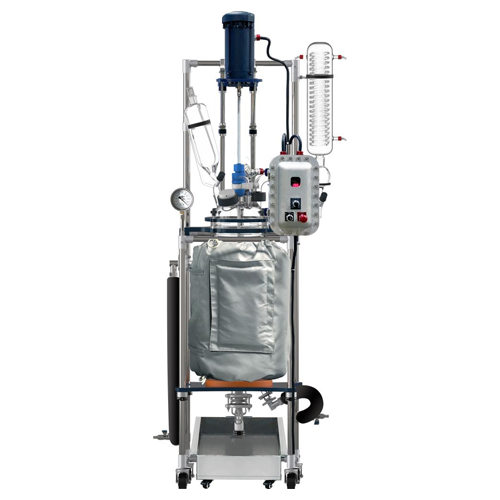

The Ai R50ex from Across International is a 50L explosion-proof jacketed glass reactor designed for laboratories and industrial settings that require precise control over synthesis, mixing, and reaction processes. This reactor excels in maintaining temperature and pressure environments, crucial for producing biopharmaceuticals, fine chemicals, nutraceuticals, and botanical extracts, including CBD oil and Ibuprofen.

The R50ex operates through a dual jacket system, enabling vacuum application to enhance temperature stability and solvent recovery efficiency. Its explosion-proof construction is vital for preventing ignition within hazardous atmospheres, certified for use with chemicals like ethanol and hexane. Adjustable stirring speeds and a large condenser ensure efficient material recovery and process control.

This reactor’s hand-made borosilicate glass is both heat and corrosion-resistant, featuring solvent-resistant PTFE seals for durability. The digital interface allows precise monitoring, while the stainless steel frame with casters offers durability and easy mobility. Suitable for batch and pilot operations, the Ai R50ex integrates smoothly into existing lab setups with optional multi-layer stirring blades and customizable configurations available to suit specific production needs.

Benefits

  • Enhances operational safety with explosion-proof design, preventing accidental ignition of volatile substances.
  • Improves product quality with precise temperature and pressure control, essential for complex chemical reactions.
  • Reduces energy costs by extending chiller life and optimizing thermal insulation.
  • Increases production flexibility with adjustable stirring rates and multi-layer stirring options.
  • Simplifies mobility and maintenance with a durable stainless steel frame and lockable casters.

General


Applications
Chemistry,Fine chemicals,Pharmaceuticals,Nutraceuticals,Botanical extraction,Material science,Industrial process,Biopharmaceuticals,Solvent recovery,Essential oils
End products
Polyethylene,Cannabidiol (cbd) oil,Ethanol,High-performance polymers,Hydrochloric acid,Hexane solvent recovery,Cannabis extracts,Ibuprofen,Lavender essential oil,Vitamin d3 supplements
Steps before
Material Preparation,Weighing,Mixing,Solvent Addition
Steps after
Cooling,Condensation,Vacuum Filtration,Product Collection
Input ingredients
Ethanol,Pentane,Hexane,Heptane,Isopropyl Alcohol,Acetone,Methanol
Output ingredients
Distillate,Recovered solvents,Extracted materials
Market info
Across International is known for manufacturing high-quality thermal management equipment, such as vacuum ovens, furnaces, and laboratory equipment, with a strong reputation for reliability and innovation in industries like materials research, cannabis processing, and laboratory testing.

Technical Specifications


Explosion-proof motor power
3/4 HP,560 watts
Main vessel capacity
50 liters (13 gallons)
Fluid jacket capacity
16 liters (4.2 gallons)
Temperature range
-80°C to +200°C (-112°F to +400°F)
Ultimate vacuum level
20 torr
Maximum fluid jacket pressure
4.4 psi or 0.03 MPa
Unit dimensions (WxDxH fully setup)
26 x 33 x 85 inches
Shipping dimensions (WxDxH)
27 x 80 x 32 inches
Weight
330 lbs
Stirring rate
Adjustable
Power requirements
220V 50/60Hz single phase
Material
Borosilicate glass 3.3
Stirring rod material
304 stainless steel with PTFE coating

Operating Characteristics


Automation level
Manual / PLC / SCADA
Adjustable stirring speeds
Yes
Constant pressure feeding funnel
Yes
Temperature operation range
-112F to 400F
Visual operation
Digital speed and temperature displays
Mobility and stability
Lockable casters
Explosion-proof design
Yes
Vacuum and pressure control
Ultimate vacuum level
Batch vs. continuous operation
Batch

Material Compatibility


Corrosive resistance (e.g. acids)
Borosilicate glass
Heat resistance
High borosilicate glass
Chemical resistance
PTFE sealing components
Temperature tolerance
-112°F to 400°F
Biological compatibility
Food grade materials

Product type Characteristics


Corrosion resistance
Yes


Explosion-proof certification
C1D1 environment
UL/CSA certification
Optional for chiller
PSI peer reviewed
For use with specified solvents

Physical Characteristics


Machine footprint
26 x 33 x 85" (WxDxH)
Shipping dimensions
27 x 80 x 32" (WxDxH)
Vessel volume
50 liters (13 gallons)
Fluid jacket volume
16 liters (4.2 gallons)
Drain port ground clearance
12.5"
Material
Borosilicate glass 3.3
Stirring mechanism
Rugged stainless steel reinforced PTFE stirrer with anchored agitator
Adjustable frame
Optional upgrade
Viewing window
Open/close with insulation jacket
Support framework
Heavy duty stainless steel with lockable casters

Custom Options


Control panel type
Explosion-proof controller
Jacket type
Single jacketed,Dual jacketed
Frame type
Adjustable frame
Blades type
Multi-layer stirring blades
Feeding funnel
Glass material feeding funnel
Condenser ports
1 vacuum and 2 chilling fluid ports
Pump type
Welch ex-proof pump
Temperature probe
Explosion-proof temperature probe
Chiller options
Julabo A80t,Ai C30
