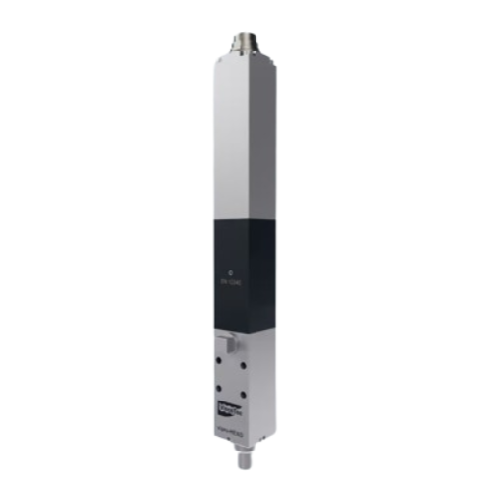

3d print head for high-viscosity fluids and pastes

Enhance your 3D printing capabilities by reliably handling high-viscosity fluids and pastes, ensuring precise control, consistent results, and expanded material possibilities in additive manufacturing.

Processes High-Viscosity Materials with Precision

The vipro-HEAD series by ViscoTec offers a versatile range of 3D print heads designed for high-viscosity and complex material applications. Utilizing the endless piston principle, these print heads ensure precise and volumetric dosing, ideal for complex end-products like silicone seals and epoxy resin components. The vipro-HEAD can easily integrate with existing 3D printing systems, providing a plug-and-play solution that enhances your production line with capabilities for printing, dosing, mixing, heating, and transporting various materials. These print heads excel in handling processes involving UV-curable adhesives, ceramic pastes, and metal pastes, making them indispensable for industries such as aerospace, automotive, and medical technology. Featuring programmable suck-back functions and optional heating capabilities up to 70°C, the vipro-HEAD maintains consistent print quality by stabilizing process parameters and preventing material dripping. Configurable for one- or two-component applications, and available with modular upgrades like the vipro-HEAD color for ink delivery, these print heads offer low-maintenance operation tailored to your manufacturing needs.

Benefits

  • Enables high-precision printing of complex materials, enhancing product quality and design flexibility.
  • Expands material capabilities, facilitating the use of diverse high-viscosity and abrasive substances.
  • Plug-and-play integration simplifies setup, minimizing system modification and downtime.
  • Programmable features ensure consistent application, reducing waste and improving process reliability.
  • Optional heating function supports a broader range of material applications by maintaining optimal temperature control.

General


Applications
Automotive,E-mobility,Consumer goods,Cosmetics,Dental products,Food industry,Additive manufacturing,General industry,Aerospace,Medical technology,Electronics,Pharmaceuticals
End products
Polyurethane automotive interiors,Ceramic dental implants,Uv-curable adhesive layers,Bio-technical suspension circuits,Light-curing dental restoratives,Metal paste prototypes,Epoxy resin electronic components,Inkjet color prints,Abrasive ceramic coatings,Silicone seals,Polyester resin aerospace panels
Steps before
Material Preparation,Material Pre-mixing,Heating for Viscosity Adjustment
Steps after
Curing,Post-processing,Quality Inspection,Coating,Finishing
Input ingredients
one-component materials,two-component materials,viscous materials,highly filled abrasive fillers,silicones,UV adhesives,ceramic pastes,polyurethanes,epoxy resins,metal pastes,acrylate,grease,inks,waxes,bio-technical suspensions,abrasive pastes,polyester resins
Output ingredients
3D printed objects,printed beads,printed dots,layered applications
Market info
Visco Tec is known for its precision dispensing and dosing technology, specializing in equipment for viscoelastic fluids, offering reliable, high-quality solutions for industries like pharmaceuticals, food, cosmetics, and general manufacturing, renowned for engineering excellence and innovation.

Technical Specifications


Viscosity capacity
Up to 1,000,000 mPas
Volumetric flow rate
0.03 – 6.0 ml/min
Material compatibility
One- and two-component materials
Heating function temperature
Up to 70 °C
Mixing ratio
1
Weight (single component print head)
About 500 g
Weight (two component print head)
About 1,100 g
Modular concept for ink delivery
0.03 – 3.3 ml/min
Suck-back function
Programmable
Start and end point precision
Defined by withdrawal effect

Operating Characteristics


Working mechanism
Endless piston principle
Automation level
Plug and play
Volumetric dosing
Precise start and end points
Batch vs. continuous operation
Continuous inline
Heating function
Up to 70°C
Programmable suck-back function
Control of material flow
Control precision
Static mixing tube
Process fluctuations management
Temperature,viscosity,pressure

Material Compatibility


Abrasion resistance
Yes
Corrosive resistance (e.g. acids)
Yes
Biological compatibility
No
Cleanability
Yes
Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Multi-component materials
1-component and 2-component materials

Physical Characteristics


Weight
500 g for 1-component,1,100 g for 2-component
Theoretical volumetric flow
0.03 – 6.0 ml/min for 1-component,0.03 – 6.00 ml/min per mixing head part for 2-component
Heating function
Optional,up to 70 °C

Custom Options


Control integration
Plug and play with 3D printer signals
Modular upgrades
Modular concept for ink delivery system
Heating option
Up to 70°C
Print head configuration
One and two-component materials
Mixing ratio adjustment
1
