3.5 Hp air-cooled chiller for industrial cooling

Optimize your production with high-efficiency cooling, essential for maintaining precise temperature control in diverse industrial processes.

Controls Temperature and Cools Industrial Processes

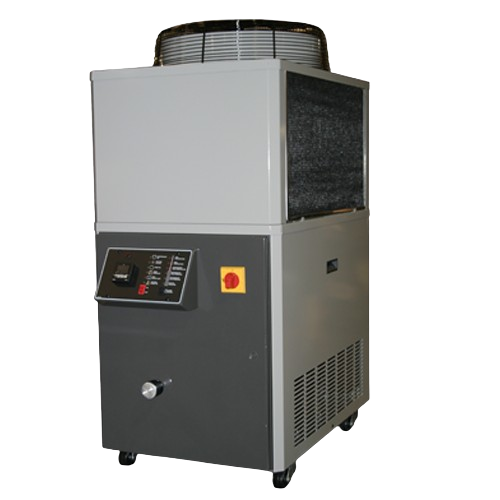

The PS Series 3.5 HP Air-Cooled Chiller from AEC is engineered to efficiently manage temperature control across a variety of industrial applications, including plastics manufacturing, food processing, and chemical production. Distinguished by its compact footprint and 3.5 hp scroll compressor, it integrates seamlessly into existing production lines, offering a leaving fluid temperature range of 30°F to 65°F. The chiller’s unique enclosure design simplifies service and maintenance, conserving valuable floor space. It features a hot gas bypass capacity control and a microprocessor-based PID auto-tuning controller, ensuring precision and energy efficiency. Designed for continuous operation, it operates with R-410a refrigerant and includes non-ferrous piping to prevent corrosion. This product supports quick integration with standard 2.5” valved process connections and offers UL/cUL-listed electrical safety. Customizable options and engineering support are available to meet specific production needs.

Benefits

  • Enhances operational efficiency by maintaining precise temperature control critical for high-quality production.
  • Minimizes energy usage with optimized scroll compressor and hot gas bypass technology.
  • Simplifies maintenance and reduces downtime with easily accessible design.
  • Ensures reliable operation in corrosive environments with non-ferrous piping.
  • Allows flexible integration into diverse production layouts with compact and modular design.

General


Applications
Blow molding,Chemical processing,Automotive parts,Plastics manufacturing,Electronics cooling,Food and beverage processing,Aerospace components,Film extrusion,Pharmaceutical manufacturing,Metalworking,Injection molding
End products
Plastic bottles,Automotive plastic parts,Pharmaceutical tablets,Automotive engine parts,Electronic circuit boards,Plastic packaging,Beverage bottles,Aerospace composite components,Metal machined components,Plastic films
Steps before
Cooling Process Planning,System Configuration,Fluid Preparation
Steps after
Temperature Regulation,Production Monitoring
Input ingredients
water,glycol,refrigerant
Output ingredients
chilled water
Market info
AEC (ACS Group) is known for manufacturing industrial equipment such as cooling, heating, and conveying solutions, serving various industries with a reputation for high-quality engineered-to-order systems and reliable customer support.

Technical Specifications


Operating leaving water temperature range
30°F to 65°F (-1°C to 18°C)
Compressor type
Scroll compressor
Refrigerant type
R-410a
Tank capacity
6 Gallon
Piping material
Non-ferrous
Compressor power
3.5 hp
Pump power
1.5 hp
Voltage
460/3/60
Pressure gauge type
2.5” dual scale liquid-filled
Cut-out pressure levels
High and low refrigerant pressure
Relief valve type
High pressure spring-actuated refrigerant relief valve
Expansion valve type
Balanced-port thermal expansion valve
Insulation type
Fully insulated refrigeration and process piping
Control system
Microprocessor-based PID auto-tuning controller
Alarm system
Audible and visual for high and low water temperature,low water flow,and high and low refrigerant pressure
UL/cUL certification
Listed electrical subpanel

Operating Characteristics


Automation level
Microprocessor-based PID auto-tuning controller
Batch vs. continuous operation
Continuous
Cleaning method
Manual

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Compact footprint
Yes
Tank size
6 Gallon
Enclosure design
Unique,service-friendly
Discharge method
Valved Process fluid connections

Custom Options


Control panel type
Microprocessor-based PID auto-tuning controller
Integration possibilities
Compatible with existing production layouts
Enclosure design
Unique for simplified service and maintenance
External connections
Valved Process fluid connections
Footprint
Compact
Bypass control
Manual bypass
