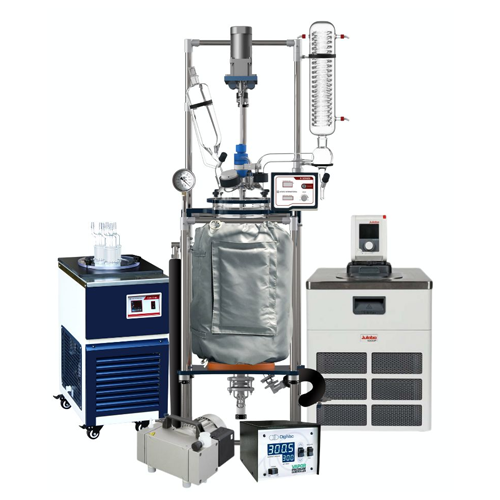

20l glass reactor for crystallization and isolation processes
Optimize your lab’s crystallization and isolation processes with precise temperature and vacuum control, ensuring high-purity outcomes for chemical synthesis and botanical extractions.
Facilitates Crystallization and Isolation for High-Purity Compounds
The Ai R20-CP1000F-MPC301 from Across International is a versatile jacketed glass reactor designed to streamline crystallization and isolation processes for pharmaceutical, chemical, and botanical extraction industries. This equipment features a dual jacket design that maintains precise temperature control, essential for high-purity chemical synthesis and extraction tasks. Its robust PTFE sealing and stainless steel components ensure long-lasting durability and chemical resistance, while the wide temperature range from -110°F to 400°F supports diverse reactions. The integrated digital controller with variable frequency drive offers fine-tuned control, maximizing process efficiency. Additionally, the reactor complies with GMP standards, making it ideal for pharmaceutical applications. Customizable options such as vacuum regulators and chiller systems enhance adaptability to specific operational needs. With a focus on energy efficiency and seamless integration into existing lab setups, this reactor is a reliable choice for laboratory and R&D settings.
Benefits
- Enhances product purity with precise temperature and vacuum control.
- Reduces energy costs through efficient thermal insulation.
- Complies with GMP standards for safe pharmaceutical processes.
- Offers flexibility for diverse chemical reactions across a wide temperature range.
- Minimizes maintenance with durable, corrosion-resistant materials and components.
- Applications
- Liquid formulations,Fine chemicals,Pharmaceuticals,Nutraceuticals,Botanical extraction,Biopharmaceuticals,Chemical synthesis,Essential oils
- End products
- Active pharmaceutical ingredients,High-purity chemical compounds,Monoclonal antibodies,Cbd oil,Liquid cough syrup,Benzyl alcohol,Lavender essential oil,Dietary supplements
- Steps before
- Material Preparation,Solution Mixing,Heating,Initial Reaction Setup
- Steps after
- Condensation,Cooling,Material Recovery,Packaging
- Input ingredients
- synthetic materials,reactants,chemical compounds,viscous materials,solvents
- Output ingredients
- crystallized compounds,isolated materials,condensed solvents,reaction products
- Market info
- Across International is known for manufacturing high-quality thermal management equipment, such as vacuum ovens, furnaces, and laboratory equipment, with a strong reputation for reliability and innovation in industries like materials research, cannabis processing, and laboratory testing.
- Capacity
- 5.3 gallons (20L)
- Cooling/Heating Jacket Capacity
- 1.6 gallons (6L)
- Glass Material
- High borosilicate glass 3.3
- Power Requirements
- 110V 60Hz or 220V 50/60Hz,1-PH,90W
- Maximum Jacket Pressure
- 4.4 psi or 0.03 MPa
- Agitator Material
- 304 stainless steel with PTFE liner
- Vacuum Level
- 20 torr
- Glass Vessel Temperature Range
- -110F to 400F
- Drain Port Ground Clearance
- 13 inches
- Reactor Dimensions
- 20 x 27 x 80"
- Shipping Dimensions
- 24 x 75 x 31"
- Shipping Weight
- 265 Lbs
- Condenser Design
- Dual-cooling coil design
- Stirring Rate
- Adjustable
- Temperature control range
- -110°F to 400°F
- Stirring speed adjustment
- Variable
- Vacuum environment
- Yes
- Automation level
- Digital controller
- Operation type
- Batch
- Cooling method
- Dual-cooling coil design
- Material feeding
- Constant pressure feeding funnel
- Condenser type
- Built-in condenser
- Jacket type
- Single/Dual jacketed
- Material recovery
- Controlled rate
- Corrosive resistance (e.g. acids)
- Yes
- ETL Certification
- ETL tested to UL/CSA standards
- Food Grade Certification
- High borosilicate glass
- FDA Materials Compliance
- PTFE components
- Machine footprint
- 20 x 27 x 80 inches
- Glass vessel capacity
- 20L (5.3 gallons)
- Glass material
- High borosilicate glass 3.3
- Jacket capacity
- 1.6 gallons (6L)
- Control panel type
- Digital controller with variable frequency drive
- Discharge method
- Flush seal design with large opening and flat flange clamp
- Glass vacuum valve
- PTFE open/close valve
- Drain port ground clearance
- 13 inches
- Chiller for top condenser
- Ai C30 220V -30°C/-22°F 20L/min 17L vol chiller
- Delivery liftgate service
- Yes / No
