1-component industrial dispenser for precision dosing
Achieve unparalleled precision in microdispensing across diverse applications with cutting-edge volumetric control, ensuring reliable and repeatable results for intricate manufacturing processes.
Dispenses and Doses Fluids with Precision

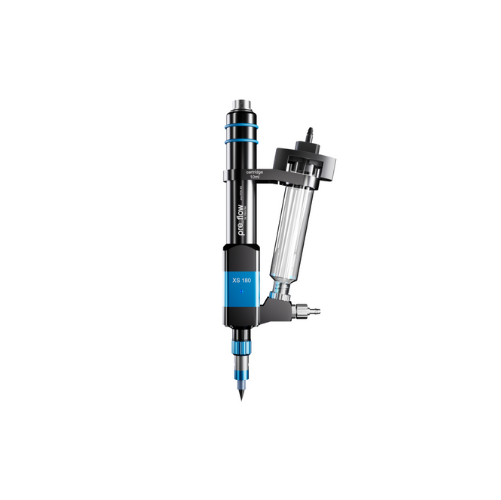

The eco-PEN Series from ViscoTec is a range of volumetric microdispensers designed for precise and reliable fluid dispensing across various industrial applications. Leveraging the ViscoTec endless piston principle, these dispensers operate through a rotational positive displacement mechanism, ensuring consistent dosing regardless of viscosity fluctuations. Ideal for processes like bonding, encapsulating, and thermal management, they support industries from electronics to aerospace in manufacturing adhesive dots, LED modules, and protective coatings. These dispensers are adaptable to both manual and automated environments, and offer precise control with a dosing accuracy of ±1% and a repeat accuracy of over 99%. Integration into production lines is seamless with options for desktop or built-in configurations. The eco-PEN Series is engineered from robust materials to resist chemical wear, and features a suck-back function to prevent drips, simplifying maintenance and ensuring consistent operation. Optional customizations, such as PTFE seals and diamond-coated rotors, are available to meet specific application needs.
Benefits
- Achieves precise dosing accuracy, boosting product quality and consistency.
- Minimizes waste with clean, controlled cut-off to prevent drips.
- Flexible integration for desktop or automated systems, enhancing production versatility.
- Supports a wide range of viscosities, expanding material compatibility.
- Reduces maintenance frequency with durable, self-sealing components.
- Applications
- Fill,Underfill,Dam,Thermal management,Optical bonding,Encapsulating,Conformal coating,Microdispensing,Bonding,Glob top
- End products
- Protective conformal coatings,Oled screens,Printed circuit boards (pcbs),Microprocessors,Semiconductor chips,Integrated circuits (ics),Adhesive dots,Electronic assemblies,Battery packs,Led modules
- Steps before
- Material preparation,Viscosity adjustment,Material mixing
- Steps after
- Quality inspection,Curing,Assembly,Packaging
- Input ingredients
- single-component fluids,1-component fluids,low viscous liquids,pasty liquids,low viscosity fluids,high viscosity fluids,pastes
- Output ingredients
- precise volumetric microdispenser,dosing quantities in nano and microliter range,precision dispensing,clean material cut-off,controlled material thread-break,no dripping,material thread-break
- Market info
- Visco Tec is known for its precision dispensing and dosing technology, specializing in equipment for viscoelastic fluids, offering reliable, high-quality solutions for industries like pharmaceuticals, food, cosmetics, and general manufacturing, renowned for engineering excellence and innovation.
- Smallest dispensing quantity
- 0.001 – 0.060 ml
- Adjustable dispensing flow
- 0.0044 – 60.0 ml/min
- Dosing accuracy
- ± 1%
- Repeat accuracy
- > 99%
- Dosing pressure
- 16 to 20 bar
- Weight
- 175 g – 650 g
- Working Mechanism
- Rotating positive displacement
- Pressure Tightness
- Perfectly Pressure-tight
- Automation Level
- Manual / Automated
- Batch vs. Continuous Operation
- Inline Continuous
- Suck Back Option
- Prevents Dripping
- Viscosity Range
- Low to High Viscosity
- Viscosity range compatibility
- Low viscous to pasty
- Density/particle size
- Nano/micro liter range
- Discharge method
- Volumetric
- Control panel type
- Desktop / Monitor / Built-in
- Integration possibilities
- Desktop,automated systems,control cabinets,front panel modules
- Control panel type
- eco-CONTROL EC200 2.0,plug’n’dose 2.0
- Integration with automation systems
- PLC integration
- Pressure and temperature monitoring
- Available
