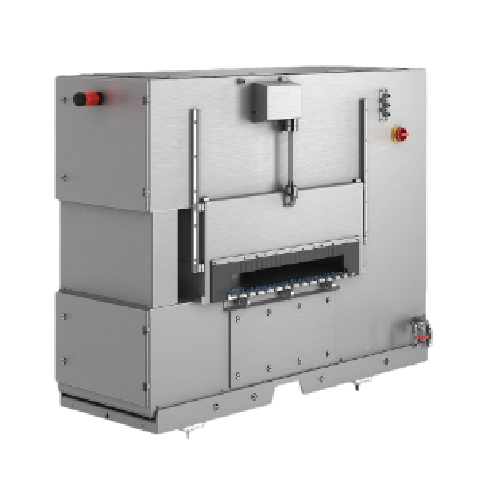

X-ray scanner for sealed container inspection

Ensure the integrity and quality of sealed containers while seamlessly integrating an X-ray scanner into your filling line to detect foreign bodies and control fill levels with precision.

Scans and Inspects Sealed and Thermoformed Containers

The SC-I X-ray Scanner from Wipotec offers an unmatched solution for inspecting sealed and thermoformed containers across diverse industries such as food, pharma, and cosmetics. Positioned downstream of the sealing station, it ensures foreign body detection and fill level control through high-resolution camera detectors and type-approved metal-ceramic tubes. This system excels in processing solid, viscous, and liquid products like yogurt cups and pharmaceutical vials during a standstill inspection method, thus maintaining stringent quality standards. Integrating seamlessly into filling lines with minimal space requirements, the SC-I supports continuous and high-speed operations. It’s equipped with servo motor technology for precise control and offers various material compatibility options, ensuring compliance with industry regulations. Its design facilitates easy integration, enabling automated processes that boost productivity and reliability in quality control.

Benefits

  • Enhances quality assurance by detecting foreign objects in sealed containers.
  • Optimizes production space with compact integration into existing lines.
  • Increases operational efficiency with servo technology for precise control.
  • Supports high productivity levels with seamless high-speed inspections.
  • Ensures regulatory compliance for food, pharma, and cosmetic products.

General


Applications
Thermoformed containers,Viscous products,Liquid products,Sealed containers,Solid products,Deep-drawn containers
End products
Cosmetic cream containers,Sauces bottles,Fruit juice cartons,Pudding pots,Yogurt cups,Cheese trays,Sterile pharmaceutical vials,Jam jars,Soup pouches,Personal care product tubes,Milk bottles,Ready meal packages
Steps before
Product filling,Sealing
Steps after
Quality control,Packing
Input ingredients
solid products,viscous products,liquid products,deep-drawn containers,thermoformed containers,unseparated containers
Output ingredients
inspected sealed containers,verified fill levels,foreign body detected containers
Market info
Wipotec is renowned for its precision weighing technology and high-speed checkweighers used in various industries, including pharmaceuticals and food. They are recognized for their innovation and high-quality engineered-to-order solutions in weight measurement and inspection systems.

Technical Specifications


Camera resolution
Highest resolution
Integration
Seamless filling line integration
Space requirement
Minimum space requirements
Detection type
X-ray
Product compatibility
Solid,viscous,liquid
Motor technology
Servo technology
Scan type
Standstill scan
Container compatibility
Deep-drawn,thermoformed

Operating Characteristics


Integration with filling systems
Seamless
Inspection process
Standstill scan
Space requirement
Minimum
Automation level
PLC controlled
Inspection technology
X-ray
Inspection target
Sealed containers
Operation in sterile environments
Outside sterile section
Camera technology
High resolution

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Product Viscosity
Solid,Viscous,Liquid
Container Type
Deep-drawn,Thermoformed
Container Size
Unspecified
Container Shape
Sealed Containers

Physical Characteristics


Machine footprint
Compact
Integration type
Seamless integration into filling line
Space requirements
Minimum
Scanner position
Downstream of sealing station
Product type compatibility
Solid,viscous,liquid in sealed containers
Inspection standstill mode
Scan during standstill

Custom Options


Integration into filling line
Seamless mechanical and electronic integration
Mounting position
Downstream of the sealing station
Container feeding method
Single layer,unseparated
Compact space requirement
Minimum space due to integration
