Wet grinding system for coffee flavor preservation
Achieve unparalleled coffee flavor and aroma by integrating a low-temperature wet grinding technique that maximizes yield and enhances taste, setting your instant and freeze-dried coffee products apart in the competitive market.
Processes Coffee for Optimal Flavor Preservation

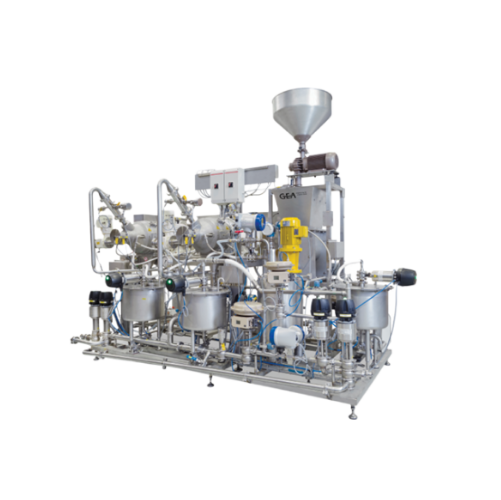

The GEA MicroWet Grinding System is a specialized solution for coffee producers seeking to maintain coffee essence while increasing production efficiency. This system uniquely employs a low-temperature wet grinding process that integrates into coffee extract lines, ensuring optimal flavor and aroma retention. Starting with pre-ground coffee, it mixes with coffee extract, cooling before undergoing double grinding via corundum stone mills to produce fine particles around 20 μm. This method enables coffee solutions for spray or freeze drying, enhancing mouthfeel and flavor while utilizing 100% of the coffee bean’s potential. Operationally, the system handles up to 3,000 kg/h of extract with adjustable roast coffee dosing up to 100 kg/h, making it a versatile choice for both spray-dried and freeze-dried coffee products.
Its continuous, low-temperature processing is designed to fit seamlessly into existing coffee production setups or work independently, offering increased dryer capacity and product quality improvements. Constructed with industrial compatibility in mind, it ensures efficiency and reliability, minimizing energy waste and maintaining operational standards for food safety. The system supports customizable integration with existing processes, providing the scalability and engineering support necessary for modern coffee production facilities.
Benefits
- Enhances coffee flavor and aroma retention through low-temperature wet grinding.
- Boosts drying capacity, allowing for increased production output.
- Achieves 100% yield from the coffee beans, maximizing resource utilization.
- Integrates seamlessly with existing production lines, facilitating easy adoption.
- Improves product mouthfeel, setting your coffee products apart in the market.
- Applications
- Spray-dried coffee,Freeze-dried coffee,Coffee extract
- End products
- Freeze-dried coffee crystals,Soluble coffee granules,Instant coffee
- Steps before
- Roasting,Pre-grinding,Mixing
- Steps after
- Spray drying,Freeze drying,Packing
- Input ingredients
- roast and ground coffee,coffee beans,coffee extract
- Output ingredients
- improved coffee flavor,enhanced mouthfeel coffee,spray-dried coffee,freeze-dried coffee
- Market info
- GEA is known for its expertise in engineering innovative and sustainable equipment and solutions, focusing on sectors such as food, beverages, pharmaceuticals, and energy, with a reputation for quality, efficiency, and advanced technological applications in industrial processing.
- Extract inlet feed capacity
- Up to 3,000 kg/h
- Roast coffee dosing
- Up to 100 kg/h (adjustable)
- Particle size (D(v,50))
- ≈ 20 μm
- Particle size (D(v,90))
- ≈ 60 μm
- Outlet temperature
- ≈ 30°C,max. 40°C
- Grinding method
- Wet grinding
- Grinding temperature
- Low temperature
- Particle size
- 20 μm
- Batch vs. continuous operation
- Integration with existing line or standalone
- Aroma preservation
- High retention
- Extraction and grinding sequence
- Pre-ground,mixed with extract,double-ground
- Yield from coffee beans
- 100% yield
- Abrasion resistance
- High abrasion resistance materials used to extend equipment life
- Cleanability
- CIP / Manual cleaning possible
- Corrosive resistance (e.g. acids)
- Corrosion-resistant materials used to handle acidic coffee extracts
- Density/particle size
- 20 μm–60 μm particle size compatibility
- Machine footprint
- Compact design
- Grain size achieved
- 20 μm to 60 μm
- Temperature range
- Max 40°C
- Discharge method
- Immediate to dryer feed
- Milling type
- Corundum stone mills
- Integration capabilities
- Standalone / inline with coffee line
- Integration possibilities with existing coffee lines
- Standalone or integrated
- Control panel type
- Customizable
- Temperature settings
- Low-temperature operation
- Particle size adjustment
- 20 μm - 60 μm
- Roast coffee dosing
- Adjustable up to 100 kg/h
- Compatibility with drying methods
- Spray or freeze-dried
