Water cooled screw chiller for industrial cooling
Optimize your beverage production line with precise temperature control and energy-efficient cooling, ensuring consistent product quality and operational efficiency.
Provides Precise Cooling for Liquid Processes

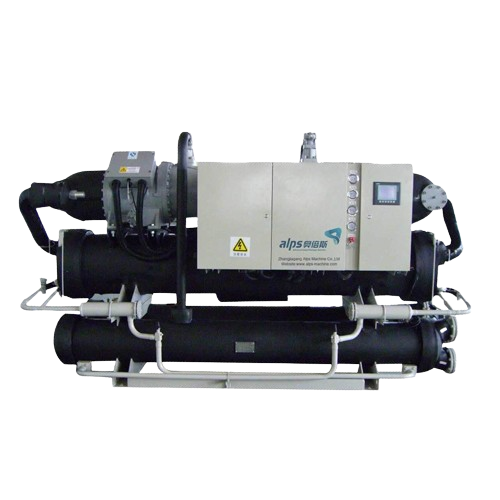

The SW115SX Water Cooled Screw Chiller from Alps Machinery is engineered for high-efficiency cooling in beverage and industrial applications. Equipped with a semi-closed twin-screw compressor, it offers continuous operation with low noise levels and significant operational longevity. The chiller employs a PLC microcomputer control from Siemens, featuring an LCD touch screen for intuitive operation. It supports multiple energy regulation stages (0-100%), accommodating various processing needs.
This chiller is ideal for cooling processes in mineral water, juice, carbonated beverages, and more, ensuring optimal temperature control across the production line. With a cooling capacity ranging from 51,000 to 194,000 Kcal/hr, it effectively meets demanding industrial cooling requirements. The system integrates advanced safety features, including high and low-pressure protection, ensuring reliable performance.
Designed for seamless integration into existing setups, it operates efficiently with low temperature chilled water and can be customized to match specific operational conditions. Additionally, its durable construction and thoughtful design facilitate easy maintenance, making it a valuable addition to any processing line.
Benefits
- Enhances production efficiency with precise temperature control for varied liquid processes.
- Operates quietly and with reduced wear, minimizing maintenance costs.
- Reduces energy consumption through efficient motor control and staged energy regulation.
- Integrates easily with existing industrial systems, offering flexibility in operation.
- Ensures operational safety with comprehensive protection features, minimizing risk of downtime.
- Applications
- Carbonated beverages,Liquid formulations,Edible oil processing,Beer brewing,Beverage cooling,Juice processing,Mineral water processing,Canned drink processing,Industrial cooling
- End products
- Orange juice packs,Canned sodas,Mineral water bottles,Ale bottles,Vegetable oil packaging,Olive oil containers,Apple juice cartons,Flavored water bottles,Lager cans,Carbonated soft drinks
- Steps before
- Water treatment,Refrigerant charging,System setup,Water inlet preparation
- Steps after
- Beverage cooling,Heat exchange,Condensate management,Temperature regulation
- Input ingredients
- cooling water,chilled water,glycol water,calcium chloride,refrigerant R22
- Output ingredients
- chilled water,heat
- Market info
- Alps Machine is known for specializing in the design and manufacturing of industrial engineered-to-order equipment, providing innovative solutions and reliable machinery tailored to the specific needs of industries like beverage and packaging.
- Cooling Capacity
- 51000–508000 Kcal/h
- Compressor Type
- SeMi-closed 5
- Cooling Water Inlet/Outlet Temperature
- 0°C/-5°C
- Condensate Water Inlet/Outlet Temperature
- 30/35°C
- Chilled Water Outlet Temperature
- -7°C/-5°C
- Cooling Water Inlet Temperature
- 19°C~33°C
- Automation
- PLC microcomputer control from SIEMENS
- Refrigerant Type
- R22
- Refrigerant Volume
- 14.8–53.4 kg
- Power Supply
- 380V/3N/50HZ
- Startup Type
- Y-Δ
- Rated Current
- 36.6–112.3 A
- Energy Regulation
- 0-33%-66%-100% / 0-25%-50%-75%-100%
- Evaporator Type
- Pipe dry high efficiency heat exchanger
- Condenser Type
- Pipe high efficiency heat exchanger
- Water Pressure Drop,Evaporator
- 45.0–55.0 kPa
- Water Pressure Drop,Condenser
- 42.0–52.0 kPa
- Machine Weight
- 850–1780 kg
- Operating Weight
- 890–1880 kg
- Overall Dimensions (LxWxH)
- 2450x660x1450 mm to 3250x960x1750 mm
- Automation level
- PLC
- Energy efficiency
- Low kWh/kg
- Temperature control
- -7℃ to -5℃
- Batch vs. continuous operation
- Continuous
- Cooling range
- -5°C chilled water outlet
- Cooling capacity
- 51000~508000 Kcal/h
- Operational noise level
- Low noise level
- Human-machine interface
- LCD Touch Screen
- Density/particle size
- 0.5–2.5 g/cm³ / 50–1000 µm
- Machine footprint
- Length
- Weight
- Machine weight
- Control panel type
- PLC microcomputer control with LCD touch screen
- Discharge method
- Pipe high efficiency heat exchanger
- Control panel type
- SIEMENS PLC microcomputer control with LCD touch screen
- Language interface
- English / Chinese
- Compressor brand
- Twin screw compressor
