Waste powder recovery cyclone for pharmaceutical processes
Efficiently recover up to 99.9% of waste powder from oral solid dosage processes, reducing filter maintenance and minimizing material loss, while seamlessly integrating into your existing dust extraction systems.
Great for making:
Captures and Recovers Pharmaceutical Process Dust

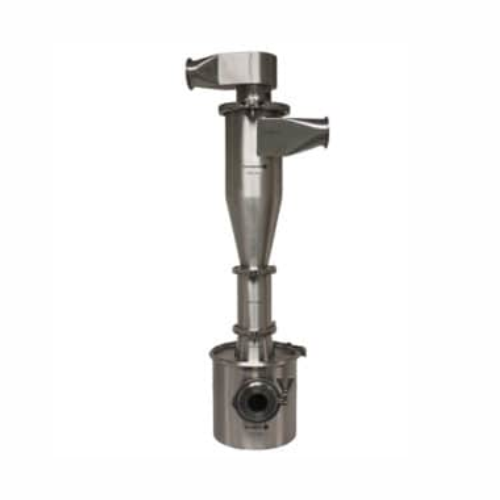

The Hanningfield Uni-Dust Cyclone series is designed for effective powder recovery in pharmaceutical and nutraceutical manufacturing, ensuring efficient dust collection and reduced material loss. The cyclone works by utilizing vortex separation to capture waste powder from OSD processes like tableting and encapsulation. This system can be integrated with tablet presses and capsule filling machines, preventing filter blinding and extending the life of central dust extraction systems.
Uni-Dust cyclones can handle airflows ranging from 25 to 1200 m3/hr, making them adaptable to various production scales. Constructed from GMP-compliant stainless steel, they are suitable for use in ATEX Zone 0/20 environments. The equipment is maintenance-free with no moving parts, ensuring quiet operation and minimal operational costs.
The system is compatible with existing production lines through flexible hose or stainless steel pipework and can be customized with options like safe-change and level control for precise operational control. Full validation documentation and engineering support are available, ensuring the systems meet FDA and GMP standards.
Benefits
- Optimizes material recovery, minimizing waste and increasing batch yields.
- Reduces maintenance costs with its filterless and part-free design.
- Enhances air quality by preventing clogging in central dust extraction systems.
- Increases operational flexibility with customizable configurations.
- Ensures compliance with GMP and FDA standards, supporting regulatory obligations.
- Applications
- Oral solid dosage,Nutraceuticals,Pharmaceutical powder,Tablets,Dust collection,Capsules
- End products
- Pharmaceutical tablets,Tablet coatings,Encapsulation powder,Osd powder blends,Powdered nutraceutical supplements,Capsule fillings
- Steps before
- Compression,Encapsulation,Sachet Filling,Spray Drying,Inhalation
- Steps after
- Batch Reconciliation,Reintroduction to Process
- Input ingredients
- waste powder from pharmaceutical processes,dust from tablet press,dust from capsule filling machine,excess dust from sachet filling,spray drying dust,inhalation process dust
- Output ingredients
- captured waste powder,cleaned air,recovered powder,reusable waste material,particle-free air
- Market info
- Hanningfield Process Systems is known for manufacturing high-quality, customized process handling, and containment equipment for industries such as pharmaceutical, food, and chemical, specializing in milling, sieving, and powder handling solutions.
- Capture Efficiency
- 90 – 99.9%
- Airflow Range (Uni-Dust Type 2)
- 25-50 m³/hr (15-30 CFM)
- Airflow Range (Uni-Dust Type 5)
- 100-150 m³/hr (59-88 CFM)
- Airflow Range (Uni-Dust Type 10)
- 150-250 m³/hr (88-147 CFM)
- Airflow Range (Uni-Dust Type 20)
- 250-300 m³/hr (147-177 CFM)
- Airflow Range (Uni-Dust Type 30)
- 300-400 m³/hr (177-235 CFM)
- Airflow Range (Uni-Dust Type 40)
- 400-600 m³/hr (235-350 CFM)
- Airflow Range (Uni-Dust Type 50)
- 600-800 m³/hr (350-470 CFM)
- Airflow Range (Uni-Dust Type 60)
- 800-1200 m³/hr (470-700 CFM)
- Cyclone Body Diameter (Uni-Dust Type 2)
- 50.8mm (2" T/C)
- Cyclone Body Diameter (Uni-Dust Type 5)
- 101.6mm (4″ T/C)
- Cyclone Body Diameter (Uni-Dust Type 10)
- 139.7mm (5½” T/C)
- Cyclone Body Diameter (Uni-Dust Type 20)
- 152.4mm (6” T/C)
- Cyclone Body Diameter (Uni-Dust Type 30)
- 168.2mm (6⅝” T/C)
- Cyclone Body Diameter (Uni-Dust Type 40)
- 203.2mm (8” T/C)
- Cyclone Body Diameter (Uni-Dust Type 50)
- 254mm (10” T/C)
- Cyclone Body Diameter (Uni-Dust Type 60)
- 304.8mm (12” T/C)
- Inlet/Outlet Pipe Diameter (Uni-Dust Type 2)
- 25.4mm (1" T/C)
- Inlet/Outlet Pipe Diameter (Uni-Dust Type 5)
- 50.8mm (2” T/C)
- Inlet/Outlet Pipe Diameter (Uni-Dust Type 10)
- 63.5mm (2½” T/C)
- Inlet/Outlet Pipe Diameter (Uni-Dust Type 20)
- 63.5mm (2½” T/C)
- Inlet/Outlet Pipe Diameter (Uni-Dust Type 30)
- 76.2mm (3” T/C)
- Inlet/Outlet Pipe Diameter (Uni-Dust Type 40)
- 101.6mm (4” T/C)
- Inlet/Outlet Pipe Diameter (Uni-Dust Type 50)
- 127mm (5” T/C)
- Inlet/Outlet Pipe Diameter (Uni-Dust Type 60)
- 139.7mm (5½” T/C)
- Product Discharge Diameter (Uni-Dust Type 2)
- 50.8mm (2" T/C)
- Product Discharge Diameter (Uni-Dust Type 5)
- 63.5mm (2½” T/C)
- Product Discharge Diameter (Uni-Dust Type 10)
- 101.6mm (4” T/C)
- Product Discharge Diameter (Uni-Dust Type 20)
- 101.6mm (4” T/C)
- Product Discharge Diameter (Uni-Dust Type 30)
- 101.6mm (4” T/C)
- Product Discharge Diameter (Uni-Dust Type 40)
- 139.7mm (5½” T/C)
- Product Discharge Diameter (Uni-Dust Type 50)
- 168.2mm (6⅝” T/C)
- Product Discharge Diameter (Uni-Dust Type 60)
- 203.2mm (8” T/C)
- Noise Level
- 0 dB (no moving parts / no mechanical noise generated)
- Construction Material - Contact Parts
- 316L stainless steel (1.4404)
- Construction Material - Non-Contact Parts
- 304 stainless steel (1.4301)
- Efficiency Rate
- 90% - 99.9% waste powder capture
- Maintenance Requirement
- Almost zero (no moving parts or filters)
- Batch Reconciliation
- Improved with powder recovery
- Automation Level
- Manual operation with optional PLC integration
- Connectivity
- Flexible hose or stainless steel pipework
- Airflow Range
- 25 - 1200 m3/hr depending on model
- Batch vs. Continuous Operation
- Batch and continuous compatible
- Cleaning Method
- Easy clean with Tri-Clamps
- Material Recovery
- Material can be reintroduced to process
- Optional Manifold Integration
- For connection to ancillary equipment
- Noise Level
- 0 dB (no mechanical noise generated)
- HEPA Filter Option
- For additional security after cyclone
- Compatibility with Ancillary Equipment
- Dedusters or capsule polishers
- Cleanability
- Easy dismantling for cleaning
- Biological compatibility
- FDA compliant seals
- Abrasion resistance
- 316L stainless steel construction
- Corrosive resistance (e.g. acids)
- 316L stainless steel
- Density/particle size
- 0.5–2.5 g/cm³ / 50–1000 µm
- Powder handling capability
- OSD processes,capsule filling
- Machine Footprint
- Compact,portable,or fixed installation options available
- Cyclone Body Diameter
- Varies by model
- Inlet/Outlet Pipe Diameter
- Varies by model
- Product Discharge Diameter
- Varies by model
- Construction Material
- Stainless Steel 316L contact parts,304 non-contact parts
- Mounting Options
- Portable trolley,wall-bracket,floor pedestal,free-standing
- Assembled Using
- Tri-Clamps for easy dismantling
- Weight
- Varies by model
- Noise Level
- 0 dB (no moving parts)
- Optional Manifold
- For connection to ancillary equipment like deduster or polishing machine
- Safe-Change
- Optional feature for added control
- Level Control
- Optional feature to monitor cyclone performance
- Sight Glass
- Optional in catchpot for visual monitoring
- Isolation Valve
- Optional feature for process control
- Air Balancing Valves
- Optional feature for airflow management
- Retrofit Capability
- Can be retrofitted to existing dust extraction lines
- Portable Trolley
- Supplied for easy relocation
- Side Channel Blower
- Option for dedicated vacuum source
