Vibratory finishing and deburring technology

Achieve precise surface finishing and deburring with advanced vibratory motion, perfect for enhancing product quality and efficiency in demanding production environments.

Performs Finishing, Deburring, and Smoothing Operations

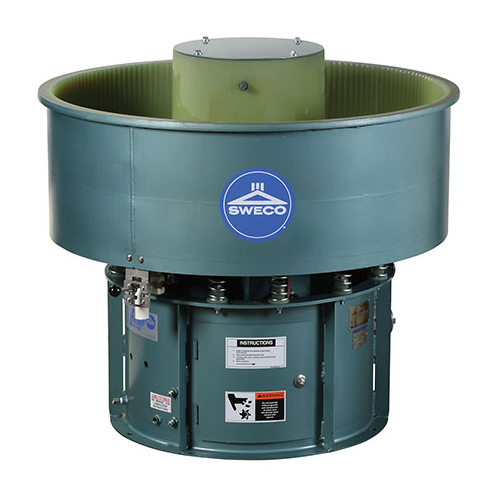

The SWECO FMD-7LR Vibratory Finishing Mill exemplifies versatile engineering in material finishing. This mill utilizes vibro-energy technology, creating a three-dimensional movement that consistently subjects the parts to high-frequency tilting, enhancing the deburring, scrubbing, and smoothing operations. Ideal for industries ranging from pharmaceuticals to plastics, its applications span edge-breaking on steel abrasives to surface refinement of ceramic tiles and plastic pellets. With adjustable amplitude and vibration rates, it optimizes finishing action, while accommodating batch operations. The FMD-7LR is engineered for seamless integration with downstream manual or automatic separation systems, offering quick maintenance with tool-free adjustments. Configurable for various chamber sizes and media options, it supports diverse production requirements, all housed in materials that ensure durability and compatibility.

Benefits

  • Enhances product consistency and quality by enabling precise control over finishing processes.
  • Increases operational efficiency with adjustable vibration and amplitude settings tailored to specific requirements.
  • Facilitates easy integration into existing production lines with both batch and continuous operation capabilities.
  • Lowers maintenance time and effort through tool-free operational adjustments and quick media changeovers.
  • Promotes sustainability and cost-effectiveness by supporting versatile material compatibility, including sustainable and recycled materials.

General


Applications
Chemicals,Food,Ceramics,Biofuels,Detergents,Powder coatings,Beverage,Metals,Coatings,Wastewater,Plastics,Minerals,Agriculture,Recycling,Pharmaceuticals
End products
Powder coat finishes,Pharmaceutical tablets,Liquid detergents,Recycled glass cullets,Biscuit crumbs,Pvc powders,Ceramic tiles,Paint pigments,Steel abrasives,Treated wastewater,Animal feed pellets,Biodiesel,Limestone powder,Plastic pellets,Fruit juices
Steps before
Grinding,Separation,Purification
Steps after
Deburring,Surface Smoothing,Polishing,Cleaning,Edge-Breaking,Flash Removal,Preplate Finishing
Input ingredients
metal parts,raw materials,irregular shapes,unfinished components
Output ingredients
finished parts,deburred components,polished surfaces,smooth edges
Market info
Sweco is known for engineering consulting services, providing expertise in sustainable infrastructure, architecture, and engineering projects, with a strong reputation for delivering comprehensive solutions in urban planning, environmental services, and industrial ETO equipment design and consultancy.

Technical Specifications


Motion Type
Three-dimensional Vibro-Energy motion
Vibration Adjustability
Vertical/horizontal amplitudes and vibration rate adjustable
Capacity
1,3,10,14 and 23 cubic feet bowls
Separation Method
Swing blade and fixed separation screen
Automation
Batch automatic and continuous finishing
Discharge Method
Air-operated discharge gate
Retention Time
Long retention time for single pass applications
Adjustability
Lead angle and motor weight settings adjustable
Function
Deburring,flash removal,edge-breaking,metal clean-up
Finishing Applications
Ball burnishing,media finishing

Operating Characteristics


Vibro-Energy Motion
3D motion
Adjustable Amplitudes
Vertical and horizontal
Automation level
Manual / Automatic
Batch vs. continuous operation
Batch / Continuous
Parts/Media Separation
Manual / Automatic

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Machine footprint
Variable,depending on model
Feed/discharge method
Manual/unloading through bottom door,automatic with swing blade and separation screen
Basket,cone,or tank shape and size
Toroidal chamber design with varying cubic feet options (1,3,10,14,and 23 cubic feet bowls)
Control panel type
Adjustable via motor weight and lead angle settings

Custom Options


Control panel type
Customized HMI / Standard controls
Customizable vibration settings
Vertical/Horizontal amplitude
Removable center column
Yes
