Vacuum dispersion system for high-viscosity products

Eliminate air inclusions during production with a modular vacuum system designed for seamless integration into your existing dissolvers, ensuring uniform and reliable dispersions of high-viscosity products.

Executes Efficient Dispersion and Homogenization

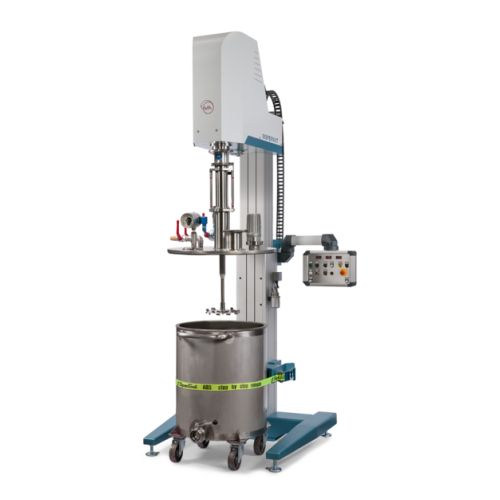

The DISPERMAT® SC4 dissolver from VMA-GETZMANN is designed to meet the diverse needs of industries requiring precise dispersion and homogenization. It stands out due to its modular vacuum dispersion system, enabling batch and continuous processing of high-viscosity products with reduced air inclusions. The dissolver is ideal for applications ranging from automotive coatings and adhesives to food products and pharmaceutical formulations. With a processing capacity accommodating product volumes from 30 to 600 liters, it integrates seamlessly into your production line, offering PLC-controlled automation for reliable and efficient operation. The system is available with single or double-walled temperature-controlled vacuum containers, enhancing energy efficiency. Constructed to resist corrosion, it supports easy maintenance with optional cleaning-in-place capabilities. Custom configurations, including a range of impeller types and rotor speeds, are available to suit specific production requirements, ensuring compliance with industry standards such as GMP and FDA.

Benefits

  • Enhances product quality by ensuring uniform particle distribution.
  • Minimizes operational costs with energy-efficient vacuum processing.
  • Increases production line efficiency with rapid batch turnover.
  • Integrates seamlessly into existing systems with customizable configurations.
  • Ensures safety and compliance with robust material options and certification.

General


Applications
Effect paints,Road marking paints,Printing inks,Building coatings,Ceramic/glass,Agrochemicals,Wind turbine paints,Carbon materials,Textile inks,Pharma and cosmetics,Aerospace coatings,Ship paints,Adhesives and sealants,Conductive coatings,Automotive coatings,Food products,Batteries,Polishing agents
End products
Self-cleaning turbine blades,Emi shielding coatings,Anti-corrosion aircraft coatings,Digital fabric inks,Glass enamels,Structural adhesives,Vitamin supplements,Thermoplastic road markings,Flexographic inks,Lithium-ion batteries,Car paints,Optical polishing powders,Exterior silicone sealants,Anti-fouling marine coatings,Curry pastes,Herbicides,Carbon nanotubes,Metallic effect automotive paints
Steps before
Grinding,Emulsification,Mixing,Pre-dispersing,Dewatering
Steps after
Coating,Sterilization,Packaging,Product Formulation,Final Quality Control
Input ingredients
liquid components,powder components,anode materials,cathode materials,slurries,conductive additives,seed treatment formulations,ceramic inkjet,latex paints,natural pigments,adhesives,silicones,carbon black,nanotubes,color pigments,food dyes,spice particles,pharmaceutical active ingredients,excipients
Output ingredients
homogeneous dispersion,stable dispersion,pre-dispersed color pigments,finely ground pigments,high-quality paints,consistent product quality,vacuum-sealed product,fine particle suspensions,high-viscosity products,dispersion without air inclusions,nano-sized pharmaceutical particles
Market info
VMA-Getzmann is renowned for manufacturing high-quality dispersing, mixing, and milling equipment, particularly for the chemical, coatings, and inks industries, specializing in engineered-to-order solutions that emphasize innovation, reliability, and technical excellence.

Technical Specifications


Power
15–55 kW
Product Capacity
30–2000 litres
Control Type
CN / C / SC / PLC
Vacuum System Capacity
30–600 litres
Basket Mill Power
15–55 kW
Horizontal Bead Mill Product Speed
25–1000 litres/hour

Operating Characteristics


Automation level
Manual / PLC / SCADA
Batch vs. continuous operation
Batch / Inline Continuous
Energy efficiency
0.5–2 kWh/kg moisture
Air incorporation control
Available
Cleaning method
Manual / CIP
CIP/SIP
CIP 121°C / SIP 135°C
Changeover time
Efficient

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Foaming tendency
Low

Physical Characteristics


Control panel type
CN / C / SC / PLC
Tank shape and size
30 – 2000 litres
Baskets
50 – 1600 litres

Custom Options


Control panel type
CN / C / SC / PLC
Integration possibilities
ATEX features
Control panel type
TM / C / PLC
Modular vacuum system
VH4 system
Customization availability
LED lighting,PT100 sensor
Scraper system
ASC System
