Vacuum disperser for high-viscosity products

Optimize high-viscosity product dispersion and prevent air inclusions with a robust vacuum system, perfect for achieving consistency and quality in your production line.

Disperses and Homogenizes High Viscosity Materials

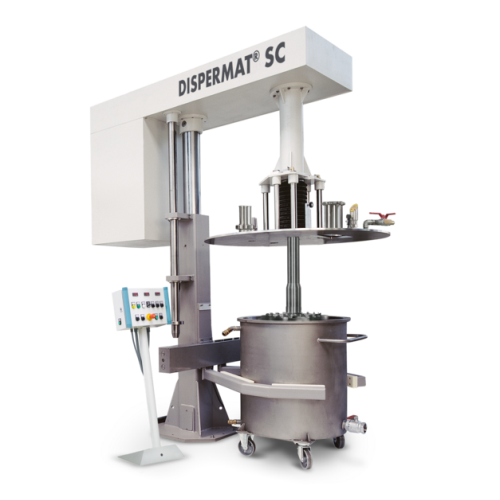

The DISPERMAT® SC4 dissolver from VMA-GETZMANN is an industrial-grade system designed to efficiently disperse and homogenize high viscosity materials while preventing air inclusions during processing. Utilizing a powerful hydraulic system, it accommodates containers up to 600 liters, making it ideal for producing paints, varnishes, inks, and chemical compositions with optimal consistency. The SC4 integrates seamlessly into existing production lines with its PLC-controlled interface, allowing precise adjustments and remote monitoring. Engineered for energy efficiency, its variable-speed motor ensures reduced energy consumption. Constructed from corrosion-resistant materials, it supports a range of applications in agrochemicals, pharmaceuticals, and cosmetics. Equipped with cleaning-in-place (CIP) features, it simplifies maintenance and ensures hygienic operations, meeting industry compliance standards. Optional customization services are available to tailor the system to specific industrial needs.

Benefits

  • Ensures product uniformity by preventing air inclusions during dispersion.
  • Enhances operational efficiency with hydraulic height adjustment for quick setup.
  • Reduces energy usage through optimized variable-speed motor control.
  • Simplifies compliance with integrated safety features and regulatory standards.
  • Streamlines cleaning processes, minimizing contamination risk and maintenance time.

General


Applications
Chemistry,Ceramics,Microbiology,Printing inks,Agrochemicals,Construction chemistry,Coatings,Pharmacy and cosmetics,Pigments and additives,Adhesives,Plastics,Paints and varnishes,Electronics
End products
Dental ceramic material,Emulsion interior wall paint,Anti-corrosion coating,Uv-curable ink,Waterproof coating,Antibiotic ointment,Battery slurry,Epoxy resin,Ceramic glaze,Automotive base coat,Wood floor varnish,Toner for inkjet printers,Wood stain,Automotive clear coat,Polyurethane sealant,Antifungal paint for buildings,Fungicide spray,Pvc plastic sheets,Structural adhesive,Emulsion exterior wall paint,Liquid fertilizer,Skin moisturizer,Ceramic pigment ink
Steps before
Purification,Grinding,Pre-mixing,Homogenization
Steps after
Packing,Coating,Quality Control,Filling,Sterilization
Input ingredients
paints,varnishes,pigments,additives,printing inks,chemicals,plastics,construction chemicals,adhesives,coatings,pharmaceutical ingredients,cosmetic ingredients,microbiological substances,agrochemicals,ceramics
Output ingredients
homogeneous mixtures,dispersed products,high viscosity dispersions,vacuum-dispersed products,finely ground particles,high-quality coatings,uniform color strength,stabilized slurries,smooth adhesives
Market info
VMA-Getzmann is renowned for manufacturing high-quality dispersing, mixing, and milling equipment, particularly for the chemical, coatings, and inks industries, specializing in engineered-to-order solutions that emphasize innovation, reliability, and technical excellence.

Technical Specifications


Power
15 – 55 kW
Product Capacity
30 – 2000 litres
Speed
100 - 985 rpm
Torque
876 - 1069 Nm
Automation
PLC-controlled
Container Capacity
500 – 2500 litres
Height Adjustment
Hydraulic
Dispersing Under Vacuum
Yes
Safety Features
EN ISO 13849-1 certified

Operating Characteristics


Batch vs. continuous operation
Batch / Inline Continuous
Automation level
Manual / PLC / SCADA
Cleaning method
CIP / Manual
Energy efficiency
0.5–2 kWh/kg moisture
Height adjustment
Hydraulic
Option
Process control
Work safe
Directive 2006/42/EC

Material Compatibility


Abrasion resistance
High
Biological compatibility
Yes
Cleanability
Easy
Corrosive resistance (e.g. acids)
Resistant
Density/particle size
Customizable

Product type Characteristics


High viscosity product handling
Yes


TÜV certification
EN ISO 13849-1

Physical Characteristics


Footprint Dimensions
140 x 400 x 310 cm
Container Capacity
500–2500 litres
Container Clamping Range
Ø 80–150 cm
Container Height
85–176 cm
Weight
4300 kg
Basket Mill Size
250–1000 mm diameter

Custom Options


Control panel type
CN / C / SC / PLC
Integration possibilities
USB (Wi-Fi,LAN expected in 2022)
Height adjustment
Hydraulic
