Vacuum breaker valve for Htst pasteurization systems

Prevent vacuum conditions in high-temperature pasteurization systems with this robust pneumatic valve, ensuring consistent product quality and reducing costly downtime.

Prevents Vacuum and Ensures Hygienic Operation

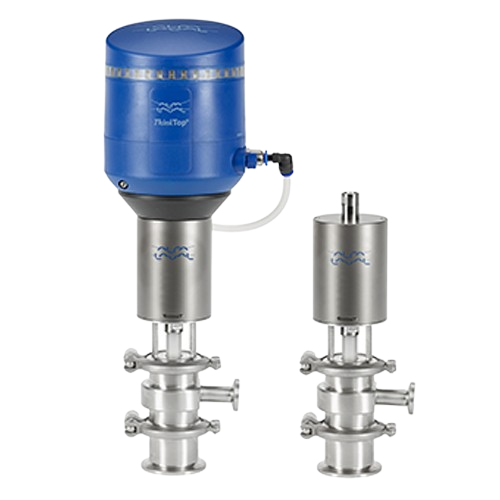

The Unique Vacuum Breaker Valve from Alfa Laval is a pneumatic check valve engineered to address the challenge of vacuum conditions in high-temperature, short-time (HTST) pasteurization systems. Its robust, modular design allows it to fit seamlessly into dairy, food, and beverage production lines, focusing on maintaining hygiene and facilitating Clean-In-Place (CIP) processes. Operating similarly to a ball check valve, it actively manages pressure changes to prevent vacuum formation and ensure uninterrupted operation. This valve integrates easily with Alfa Laval’s ThinkTop V50 for advanced sensing and control, enhancing automation and process oversight. Its construction from stainless steel with a double-acting lip seal minimizes cross-contamination risks, meeting the 3-A sanitary standards. Additionally, its straightforward design reduces maintenance needs and extends valve life, providing cost-effective, reliable performance for liquid processing in industries focusing on products like pasteurized milk, juices, and soft drinks.

Benefits

  • Enhances system reliability by preventing vacuum-induced operational disruptions.
  • Minimizes contamination risk, maintaining product safety and hygiene standards.
  • Reduces maintenance costs with a durable design and fewer moving parts.
  • Increases process efficiency with fast-acting, automated operation.
  • Supports easy integration into existing systems with modular setup and CIP compatibility.

General


Applications
Food,Beverage,Dairy
End products
Sauces,Soups,Wine,Cheese,Pasteurized juice,Pasteurized milk,Butter,Yogurt,Soft drinks,Beer
Steps before
Pasteurization,Pressurization
Steps after
Clean-in-Place (CIP),Ventilation
Input ingredients
pressurized pipelines,CIP fluid
Output ingredients
air,vent port discharge
Market info
Alfa Laval is renowned for its expertise in heat transfer, separation, and fluid handling technologies, providing innovative, energy-efficient engineered-to-order solutions for various industries including food, marine, and energy.

Technical Specifications


Automation
Fully automated
Cleaning method
CIP
Material
Stainless Steel
Actuator type
Pneumatic
Valve type
Check Valve / Pneumatic

Operating Characteristics


Working mechanism
Pneumatic check valve
Integrated steps
Cleaning-in-Place (CIP) with single air connection
Batch vs. continuous operation
Continuous
Automation level
Fully automated with Alfa Laval ThinkTop V50
Cleanability
Designed for exceptional hygiene and CIP
Valve control
Alfa Laval ThinkTop V50 for sensing and control


3A Sanitary Standards
Authorized to carry the 3-A symbol

Physical Characteristics


Valve Body Material
Stainless Steel
Actuator Type
Pneumatic
Valve Configuration
Modular Platform
Size
Compact
Cleaning Method
Clean-In-Place (CIP)
Seal Type
Double-acting lip seal
Internal Mechanism
Ball Check Valve Design

Custom Options


Control System
Compatible with Alfa Laval ThinkTop V50
Cleaning Capability
Easy Cleaning-in-Place (CIP)
Material
Stainless Steel Valve Body
Seal Type
Double-acting Lip Seal
