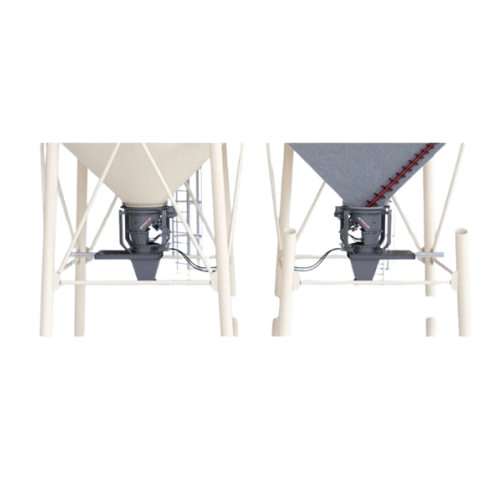

Unloader for conical bottom silos

Eliminate product flow challenges effortlessly with this hydraulic-driven unloader, ensuring complete extraction from conical bottom silos while maintaining safety and preventing contamination.

Efficiently Extracts and Unloads Silo Contents

The Hydracone from Morillon is a hydraulic unloader specifically designed for handling non-free-flowing materials stored in conical bottom silos. Utilizing an Archimedes screw driven by a hydraulic motor, it sweeps the silo cone for complete material extraction. Ideal for processing powders, fibrous, dry, and wet products, it serves diverse industries such as food, agriculture, and chemicals. The Hydracone system operates effectively in demanding environments, supporting high temperatures up to 150°C and hazardous atmospheres. By maintaining low-speed, high-torque operation, it minimizes energy consumption while reducing the risk of material bridging. Available in stainless steel options (304 or 316L) and using biodegradable lubricants, it offers eco-friendly options for sustainable operations. Maintenance is efficient, even when the silo is full, with all essential components easily accessible and separated from the product to prevent contamination. The system is configured to integrate seamlessly into continuous production lines, ensuring consistency and safety.

Benefits

  • Ensures complete silo discharge, preventing material bridging with high-torque hydraulic operation.
  • Enhances operational safety by enclosing all moving parts and segregating drive components.
  • Minimizes maintenance disruptions with accessible components even with a full silo.
  • Supports eco-conscious operations using biodegradable lubricants.
  • Adapts to high-temperature and hazardous environments, increasing versatility across industries.

General


Applications
Lightweight products,Dry products,Chemical products,Temperature-sensitive materials,Industrial materials,Wet products,Fibrous materials,Food products,Powders,Pharmaceutical ingredients,Heavy products,Non-free-flowing products,Biodegradable materials,Hazardous materials
End products
Heavy metal pellets,Polystyrene beads,Chocolate chips,Biodegradable plastics,Sawdust,Cement,Cocoa powder,Fish meal,Compost,Whey protein,Pasta dough,Wood chips,Dehydrated vegetables,Talcum powder,Polyvinyl chloride (pvc),Fertilizers,Pharmaceutical excipients,Fertilizer granules,Hay,Flour,Asbestos
Steps before
Steps after
Input ingredients
heavy products,lightweight products,powdery materials,fibrous materials,dry materials,wet materials,non-free-flowing products
Output ingredients
completely emptied silo,extracted products
Market info
Morillon is known for its expertise in designing and manufacturing industrial unloading systems, particularly silo dischargers suitable for handling bulk solids in challenging conditions, recognized for reliability and robust performance across various industries.

Technical Specifications


Hydraulic Drive Torque
High torque at low speed
Silo Diameter
2.5 metres or more
Cone Angle
45⁰
Max Operating Temperature
150°C
Drive Mechanism
Hydraulic transmission
Material Handling Capability
Heavy,Lightweight,Powdery,Fibrous,Dry,Wet
Safety Features
All moving parts enclosed,separated components
Environment Suitability
Explosive atmospheres,high temperatures

Operating Characteristics


Working mechanism
Hydraulic transmission with Archimedes screw
Motion type
Rotating movement
Product extraction
Complete emptying of silo
Start-up system
Booster start-up system
Product compatibility
Heavy or lightweight,powdery or fibrous,dry or wet
Safety features
Enclosed moving parts
Maintenance capability
Possible when silo is full
Contamination prevention
Separated drive transmission components from product
Torque and speed
High torque at low speed
Automation level
Hydraulic

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm
Biological compatibility
Compatible
Cleanability
Easy to clean
Corrosive resistance (e.g. acids)
Excellent

Product type Characteristics


Eco-friendly option
Green System with biodegradable lubricants

Physical Characteristics


Machine Footprint
Depends on silo size
Drive System
Hydraulic transmission

Custom Options


Material
Stainless steel 304 or 316L
Temperature Resistance
Up to 150°C
Green System Lubrication
Biodegradable lubricants
Explosion Proof Design
For explosive atmospheres
Silo Diameter Compatibility
2.5 meters or more
Cone Angle
45⁰
