Universal mill for fine grinding in food and pharma industries
Achieve unparalleled particle size reduction with high-performance fine grinding, ensuring precision and efficiency in processing sensitive materials like spices and casein, even under challenging temperature conditions.
Reduces Particle Size and Minimizes Moisture

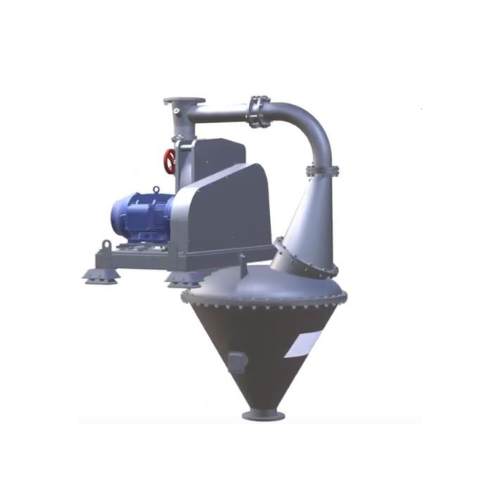

The KEK Universal Mill from Kemutec is engineered to deliver precision fine grinding for diverse industrial applications. Known for its versatility, this mill features interchangeable grinding media, accommodating a range of material types and particle size requirements. It utilizes a closed-loop airless system to minimize moisture absorption, maintaining material integrity. Ideal for industries such as food processing, pharmaceuticals, and chemicals, it produces end-products ranging from cinnamon powder to pharmaceutical-grade whey protein isolate. With throughput options from lab scales to full production, the mill supports continuous, high-speed operations. Optional temperature control and cryogenic capabilities enhance processing for heat-sensitive materials. The system can be easily integrated into existing lines, featuring customizable configurations and material choices, including stainless steel for corrosion resistance. Engineered for minimal downtime, it incorporates a hinge and interlocking door for straightforward maintenance and inspection, ensuring efficient cleaning and certification compliance.
Benefits
- Enhances product quality with precise particle size control.
- Minimizes material degradation through closed-loop airless milling.
- Supports energy-efficient operations with customizable grinding media.
- Facilitates quick maintenance, reducing production downtime.
- Offers flexible integration with existing production lines.
- Applications
- Casein,Trona,Powdered sugar,Pet food ingredients,Wheat flour,Whey powder,Flour,Rice flour,Spices,Nitrates,Sodium bicarbonate,Salt,Sulphur
- End products
- Scouring ammonium,Rubbers and pesticides,Cinnamon powder,Confectioner's sugar,Table salt,Protein-enriched casein supplements,Baking soda,Fish meal for aquaculture,Bakery flour,Whey protein isolate,Fertilizer nitrates,Bread wheat flour,Gluten-free rice flour
- Steps before
- Ingredient Size Reduction,Pre-cooling
- Steps after
- Packaging,Product Mixing,Extrusion,Flavoring,Coating
- Input ingredients
- spices,salt,flour,whey powder,casein,Sodium bicarbonate,Trona,Sulphur,Nitrates
- Output ingredients
- fine powder,100μ to 20μ milled particles,6X powdered sugar,10X powdered sugar,microfine salt,rice flour,wheat flour
- Market info
- Kemutec is known for its expertise in manufacturing industrial powder processing equipment, including sifters, mills, and mixers, tailored to meet specific customer needs. They are reputed for delivering high-quality, reliable engineered-to-order solutions.
- Grinding performance
- High performance,fine grinding
- Particle size range (D50)
- 100μ to 20μ
- Grinding media
- Interchangeable (turbine,screen,pinned disc)
- Moisture absorption
- Minimal
- Temperature control
- Available
- Cryogenic grinding
- Available
- Closed-loop design
- Airless
- Power range
- 3 hp to 125 hp
- Process integration
- Customizable
- Explosion protection
- Available
- System inerting
- Using inert gas
- Working mechanism
- Interchangeable grinding media
- Batch vs. continuous operation
- Batch / Continuous
- Integrated steps
- One-pass fine grinding
- Temperature control capability
- Optional temperature control
- Cryogenic grinding availability
- Yes
- Moisture absorption prevention
- Closed-loop airless design
- System integration
- Flexible system integration
- Cleaning method
- Simple to clean
- Maintenance access
- Hinged and interlocking door
- Particle size range
- D50 - 100μ to 20μ
- Density/particle size
- 0.5–2.5 g/cm³ / 50–1000 µm
- Milling capability
- Fine grinding
- Compact footprint
- Yes
- Control panel type
- PLC Control
- Discharge method
- Integral hopper or remote filler-receiver
- Interchangeable Grinding Media
- Turbine,Screen,Pinned Disc
- Temperature Controlled Grinding
- Temperature control and cryogenic grinding
- Grinding Media Types
- Pinned Disc,Turbine,Screen
- System Integration
- Custom integrated into an existing system
- Explosion Protection
- Bursting Panels,Quench,Suppression System
- System Inerting
- Nitrogen,CO2
