Undervacuum homogenizer for cosmetic and pharmaceutical creams

Optimizing the production of creams and lotions, this undervacuum homogenizer ensures consistent texture and thorough mixing. Perfect for companies seeking to enhance product stability and achieve precise formulation results.

Homogenizes and Mixes Cosmetic and Pharmaceutical Products

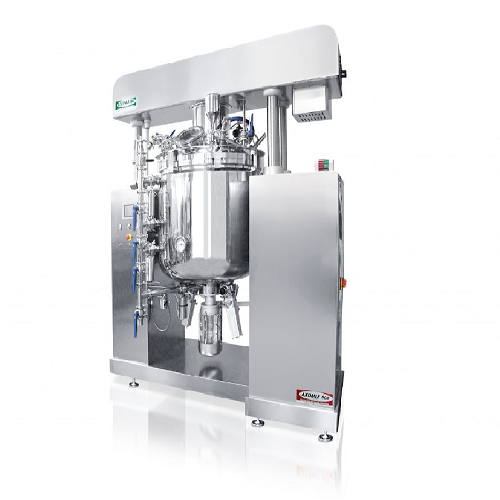

The Axomix 400 – 1000 from Axomatic is an under-vacuum homogenizer designed to streamline cosmetic and pharmaceutical production. It features contra-rotating mixing with Teflon scrapers and a high-speed homogenizing turbine, effectively mixing, heating, and homogenizing ingredients. Suitable for manufacturing creams, lotions, and gels, it operates efficiently across batch and semi-automatic processes. With a fully PLC-controlled system, it integrates seamlessly into existing production lines, while hydraulic lifting and tilting simplify discharge and cleaning. The energy-efficient design includes heating by steam and customizable options like cleaning systems and inspection windows, ensuring compliance with industry standards.

Benefits

  • Enhances product consistency by ensuring uniform mixing and homogenization.
  • Reduces contamination risks with under-vacuum processing.
  • Simplifies maintenance with easy discharging and cleaning features.
  • Lowers energy consumption with efficient steam heating.
  • Adapts to various production requirements with customizable options and configurations.

General


Applications
Personal care products,Pharmaceutical creams,Gels,Toothpaste,Cosmetics,Skincare products,Ointments,Emulsions,Lotions,Haircare products
End products
Whitening toothpaste,Anti-aging serums,Face creams,Sunscreen lotions,Body wash,Oil-in-water emulsions,Moisturizers,Conditioner,Antifungal ointments,Shampoo,Hydrocortisone cream,Aloe vera gel
Steps before
Ingredient Preparation,Material Loading
Steps after
Discharge Finished Product,Packaging,Quality Control
Input ingredients
raw materials,ingredients
Output ingredients
finished product
Market info
Axomatic, part of the Marchesini Group, is known for manufacturing high-quality automated machinery for packaging, particularly in the cosmetic, pharmaceutical, and food industries, with a reputation for innovation and customization in engineered-to-order equipment.

Technical Specifications


Mixing Motor Power
0.50 Kw
Turbine Motor Power
3 Kw
Vacuum Pump Power
0.75 Kw
Heating Elements Power
6 Kw
Homogenizing Turbine Speed
Up to 3,000 rpm
Heating Method
By steam

Operating Characteristics


Mixing mechanism
Contra-rotating slow mixing with teflon scrapers
Homogenizing speed
Up to 3,000 rpm
Cleaning method
Cleaning system by spray balls
Product discharge method
Hydraulic vessel tilting
Vacuum operation
Yes,with vacuum pump
Control system
Control Panel T,amp
S color kind

Physical Characteristics


Feed/Discharge Method
Hydraulic vessel tilting for discharge
Control Panel Type
Color Touch,Screen
Inspection Window
With light to check mixing phases

Custom Options


Control panel type
Touch screen color T,S
Hydraulic vessel tilting
Yes
Hydraulic lifting of cover
Yes
Optionals available
Check weighters,Cleaning system by spray balls,Printing of production data
Heating method
Steam
