Ultrafine grinding mill for calcium carbonate slurries
Achieve precise particle size distribution in your mineral slurries with a system designed for continuous, low-energy ultrafine grinding, ensuring optimal product quality while minimizing maintenance downtime.

Grinds and Separates Mineral and Chemical Slurries

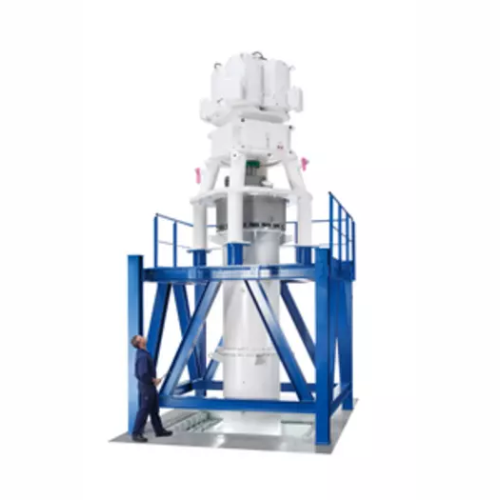

The ANR Vertical Agitated Media Mill from Hosokawa Alpine is a wet grinding system designed to optimize the ultrafine grinding of mineral slurries. This equipment features a vertical configuration for efficient single-pass operation, employing ceramic grinding beads to produce superfine calcium carbonate and other slurry products. Ideal for continuous operation, the ANR is suitable for industries such as pharmaceuticals, chemicals, and recycling, processing a range of materials from metal powders to cocoa. The mill operates with low maintenance, utilizing a mechanically and dynamically separated milling process, and includes features such as cooling for the mill stator and low-speed agitator to ensure minimal energy consumption and extended service life. Constructed from wear-resistant materials, it provides corrosion resistance and high durability. This system is available in varying power capacities, from pilot machines to full-scale production mills. Additionally, the ANR ensures compliance with industry standards and offers customization options for specific engineering needs, making it an adaptable solution for high-quality slurry processing.
Benefits
- Enhances production efficiency with continuous, low-maintenance operation.
- Lowers energy costs through optimized low-speed agitator design.
- Prevents contamination in slurry production with corrosion-resistant materials.
- Facilitates scale-up from pilot to full-scale production seamlessly.
- Minimizes environmental impact with efficient ceramic grinding technology.
- Applications
- Chemicals,Cocoa,Animal feed,Metal powders,Sugar,Recycling materials,Thickening agents,Lithium-ion batteries,Crop protection agents,Additive manufacturing,Spices,Minerals,Lactose,Dairy products,Calcium carbonate,Pharmaceuticals
- End products
- Steps before
- Purification,Drying,Emulsification
- Steps after
- Sterilization,Packing,Coating
- Input ingredients
- calcium carbonate,mineral powder slurries,limestone slurries
- Output ingredients
- ultrafine mineral powders,high whiteness mineral powders,superfine calcium carbonate
- Market info
- Hosokawa Alpine is known for its expertise in manufacturing advanced process equipment and systems for powder and particle processing technology. It has a strong reputation for innovation, quality engineering, and customer-focused solutions in various industries.
- Grinding Process
- Wet
- Machine Design
- Open-design vertical agitated media mill
- Operation Mode
- Continuous
- Material Type
- Mineral Powder Slurries
- Capacity Range
- From Pilot Machines to MW Range
- Maintenance
- Low-maintenance
- Cooling System
- Efficient cooling of the mill stator
- Abrasion Resistance
- Ceramic wear protection
- Grinding Media
- Zirconium silicate or zirconium oxide
- Fineness
- High degree of whiteness and abrasiveness
- Energy Requirement
- Low
- Scale-up Capability
- Trouble-free scale-up to high production capacities
- Agitator Speed
- Low-speed
- Working mechanism
- Vertical agitated media mill
- Flow pattern
- Bottom to top
- Operation mode
- Continuous
- Grinding energy requirement
- Low
- Automation level
- PLC-controlled
- Cooling system
- Efficient cooling of mill stator
- Scale-up potential
- Trouble-free scale-up to high production-scale
- Grinding beads
- Ceramic (zirconium silicate or zirconium oxide)
- Separation mechanism
- Mechanical and dynamic separating element
- Maintenance
- Low-maintenance
- Abrasion resistance
- Ceramic wear protection
- Corrosive resistance (e.g. acids)
- Wear-resistant hardened materials
- Machine Footprint
- Compact Vertical Design
- Shape
- Open-design Vertical Agitated Media Mill
- Feed Method
- Bottom to Top
- Discharge Method
- Low-maintenance Combination of Mechanical and Dynamic Separating Element
- Ceramic Wear Protection
- Yes - Ensures High Degree of Whiteness
- Grinding Beads
- Ceramic Grinding Beads (Zirconium Silicate or Zirconium Oxide)
- Agitator Elements Material
- Wear-resistant Hardened Materials
- Cooling System
- Efficient Cooling of Mill Stator
- Control panel type
- HMI / Touchscreen
- Integration possibilities
- SCADA / PLC integration
- Agitator type
- Low-speed agitator
- Grinding bead material
- Zirconium silicate / Zirconium oxide
- Ceramic wear protection
- Yes
- Cooling system
- Efficient mill stator cooling
