Ultra centrifugal mill for size reduction of soft and medium-hard materials
Achieve precise particle size reduction and consistent sample preparation across various materials with our high-speed grinder, optimized for rapid and gentle processing—even for temperature-sensitive substances.
Processes and Pulverizes Materials at High Speed

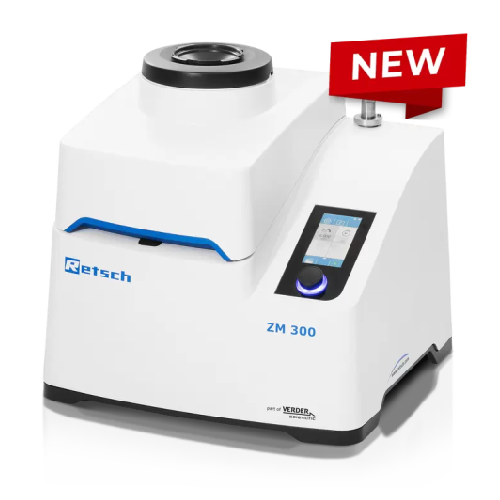

The Ultra Centrifugal Mill ZM 300 from Retsch GmbH is a versatile rotor mill designed for high-speed size reduction of soft to medium-hard materials. It employs an impact and shearing principle to efficiently pulverize samples, maintaining sample integrity with minimal temperature increase. Ideal for applications ranging from agriculture and food processing to pharmaceuticals and polymers, the ZM 300 delivers precise and consistent results. The mill features a variable speed range of 6,000 to 23,000 rpm, allowing customization for different material requirements. It supports batch and continuous operations, integrating seamlessly into existing production lines. Equipped with an integrated temperature sensor, the ZM 300 ensures reproducibility and optimal process control. Its stainless steel and titanium construction offer durability and resistance to wear, while easy-to-clean components minimize downtime. The ZM 300 accommodates various sample sizes, with options for cryogenic grinding for sensitive materials. Compliance with relevant industry standards and extensive customization options further enhance its suitability for specific research and industrial needs.
Benefits
- Ensures sample integrity with precise temperature monitoring, maximizing reproducibility.
- Customizable speed range optimizes processing for diverse material requirements.
- Supports efficient cryogenic grinding for heat-sensitive and volatile samples.
- Streamlines cleaning processes with quick, tool-free component removal.
- Enhances operational flexibility with comprehensive accessory options for varying sample sizes.
- Applications
- Food,Polymers,Chemistry,Animal feed,Metallurgy,Construction materials,Medicine,Geology,Biology,Environment,Spices,Plastics,Minerals,Agriculture,Textiles,Electronics,Recycling,Pharmaceuticals
- End products
- Muesli base flakes,Mineral supplements,Textile fibers,Epoxy resin formulations,Recyclable plastic flakes,Cornflakes,Mineral ores,Biopolymers,Electronic component powders,Powdered spices,Granola,Herbal extracts,Animal feed pellets,Pvc compounds,Pharmaceutical powders,Prebiotic fibers,Cement additives,Polypropylene pellets
- Steps before
- Drying,Preparation,Sample Collection,Cryogenic Embrittlement
- Steps after
- Analysis,Collecting,Storing,Sieving,Packaging
- Input ingredients
- bones,cereals,chemical products,coal,coffee beans,collagen,corn,dried fruit and vegetables,dried larvae,drugs,electronic components,feed pellets,fertilizers,food,grain,graphite,minerals,paper,pharmaceutical materials,plant materials,polymers,powder coatings,rice,rubber,seeds,spices,straw,sweets,textiles,tobacco,waste,wood
- Output ingredients
- fine powder,reduced particle size,ground sample,fine samples,coarsely ground grains
- Market info
- Retsch is renowned for manufacturing high-quality laboratory equipment, specializing in milling, sieving, and assisting technologies for sample preparation and characterization, known for precision, reliability, and innovation in the scientific and industrial laboratory markets.
- Speed
- 6,000 - 23,000 rpm
- Capacity
- 250 ml - 4,500 ml
- Feed Material
- Soft,medium-hard,brittle,fibrous
- Grinding Principle
- Impact and shearing
- Feed size
- < 10 mm
- Final Fineness
- < 40 µm
- Rotor Peripheral Speed
- 31 - 119 m/s
- Rotor Diameter
- 99 mm
- Sieve Sizes
- 0.08 - 10 mm
- Drive
- 3-phase asynchronous motor with frequency converter
- Power Consumption
- 1750 VA (200..240V),1400 VA (110..120V)
- Dimensions (W x H x D)
- 452 x 431 x 426 mm
- Net Weight
- ~ 38 kg
- Protection Code
- IP 20
- Cryogenic Grinding Capability
- Yes
- Temperature Monitoring
- Yes
- Sample Volume with Cassette
- 300 ml - 600 ml
- Variable speed
- 6,000 - 23,000 rpm
- Temperature monitoring
- Integrated sensor
- Batch vs. continuous operation
- Batch
- Grinding mechanism
- Impact and shearing
- Cryogenic grinding capability
- Yes
- Ease of cleaning
- Quick and tool-free
- Automation level
- Manual with touch display
- Sample size compatibility
- Up to 600 ml
- Modular design
- Interchangeable rotors and sieves
- Cooling option
- Cryogenic
- Cleanability
- Easy cleaning with water or dishwasher
- Corrosive resistance (e.g. acids)
- Available in stainless steel
- Density/particle size
- 0.5–2.5 g/cm³ / 50–1000 µm
- Flexibility in grinding
- Cryogenic,fibrous materials
- Material types
- Polymers,grains,coal
- Standards Compliance
- ISO 9001
- IP Protection
- IP 20
- Machine footprint
- 452 x 431 x 426 mm
- Net weight
- ~ 38 kg
- Control panel type
- Large touch display with rotary knob
- Cassette volume
- 900 ml with standard cassette,1200 ml with volume cassette
- Rotor diameter
- 99 mm
- Discharge method
- Collecting cassette or cyclone system
- Speed range
- 6,000 - 23,000 min-1
- Control panel type
- Large touch display with rotary knob
- Rotor types
- 6-tooth / 12-tooth / 24-tooth
- Sieve sizes
- 0.08 – 10 mm
- Temperature monitoring
- Integrated sensor
- Cassette types
- Standard and large-volume options
- Accessory availability
- Various rotors,ring sieves,cassettes
- Cyclone system
- Optional cyclone-suction-combination
