Twin screw pelletizer for continuous production 150 kg/h

Achieve precise pellet density adjustments and seamless integration in your production line with this adaptable extruder and spheronization system, optimizing processes from formulation to scaling, while maintaining continuous operation for varied material outputs.

Adjusts Density and Shapes Pellets for Production

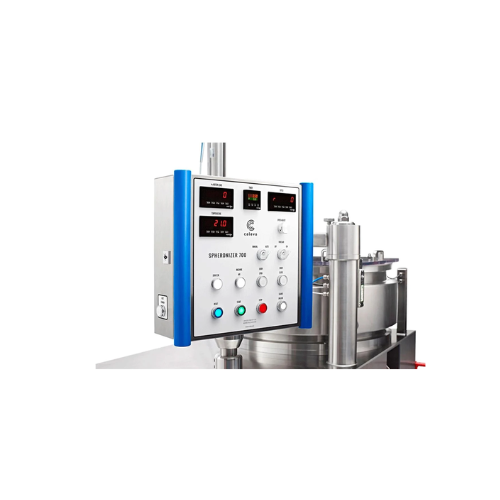

The Caleva Variable Density Twin Screw Extruder VD-TSE70 and Spheronizer 700 system is engineered for flexible density and shape control of pellets across pharmaceutical, catalyst, cosmetics, and more. The VD-TSE70 employs advanced twin-screw technology for continuous or intermittent extrusion, enabling precise density modifications to meet diverse material specifications. With a capacity to handle up to 200 kg per hour and axial extrusion capabilities, it supports the production of pharmaceutical pellets, biofuel pellets, and catalyst granules effectively. Meanwhile, the Caleva Spheronizer 700 ensures smooth sphere formation through its batch operation with automatic air blast discharge, optimizing the surface finish and consistency of final products. Both units feature easy assembly and disassembly minimizing tool use, and incorporating cooling and heating jackets to maintain optimal processing conditions. Designed with a hygienic build for effective CIP and sterilization, these units are ideal for compliance with stringent pharmaceutical and GMP standards. The system’s durability and minimal maintenance requirements, coupled with Caleva’s engineering support, make them well-suited for companies seeking robust, long-lasting production equipment.

Benefits

  • Enhances production flexibility with variable density control for diverse material requirements.
  • Reduces cleaning and maintenance time through tool-minimal assembly and disassembly.
  • Ensures consistent product quality with precise spheronization and automated batch discharge.
  • Maintains optimal processing conditions with integrated heating and cooling jackets.
  • Complies with GMP and FDA standards, supporting pharmaceutical production needs.

General


Applications
Food,Biofuels,Agrichemicals,Cosmetics,Petrochemicals,Zeolites,Catalysts,Pharmaceuticals
End products
Pharmaceutical pellets,Petrochemical granules,Zeolite beads,Food pellets,Cosmetic beads,Biofuel pellets,Catalytic converters,Fertilizer pellets
Steps before
Formulation Development,Purification,Mixing
Steps after
Coating,Drying,Packing
Input ingredients
pharmaceutical materials,catalyst materials,cosmetics ingredients,aquaculture components,chemical engineering substances,zeolites,biofuels,petrochemical materials,agrichemical inputs,food ingredients
Output ingredients
pellets,extrudates
Market info
Caleva Process Solutions is known for manufacturing and supplying specialized equipment for pellet and extrudate production in the pharmaceutical, nutraceutical, chemical, and food industries, emphasizing innovative process solutions and customer-focused engineering.

Technical Specifications


Capacity
150 kg per hour
Capacity
200 kg per hour
Die patterns
Various (clover-leaf,trilobe,etc.)
Automation
PLC-controlled
Cooling option
Water jacket
Cooling technology
Cooling jacket
Material of construction
Designed for industrial environment
Discharge method
Fully automatic
Screw type
Twin Screw
Production type
Continuous/Intermittent
Operation temperature monitoring
Digital display
Product type
Extrudate and pellets
Density variation capability
Yes

Operating Characteristics


Batch vs. continuous operation
Continuous / Intermittent
Changeover time
Quick turnaround
Automation level
Advanced / PLC-controlled
CIP/SIP
Minimal tools for assembly and disassembly
Cleaning method
Easy to clean
Energy efficiency
High efficiency
Cooling option
Water jacket / Cooling jacket

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Compact footprint
Surprisingly compact
Extruder size
VD-TSE70
Spheronizer size
Spheronizer 700
Discharge method
Automatic discharge
Cooling options
Cooling jacket included
Control panel type
Digital display
Die configuration
Different die patterns and shapes
Batch or continuous operation
Continuous or intermittent production

Custom Options


Control panel type
Digital / Manual
Integration possibilities
PLC / SCADA
Cooling option
Water jacket / Air blast
Discharge method
Automatic / Manual
