Tube filling solution for plastic, laminate, and aluminum tubes
Optimize your production line with a versatile tube filling solution, designed for precision and efficiency in handling various tube materials and sizes, suitable for continuous high-speed operations.
Fills and Packs Tubes with Precision

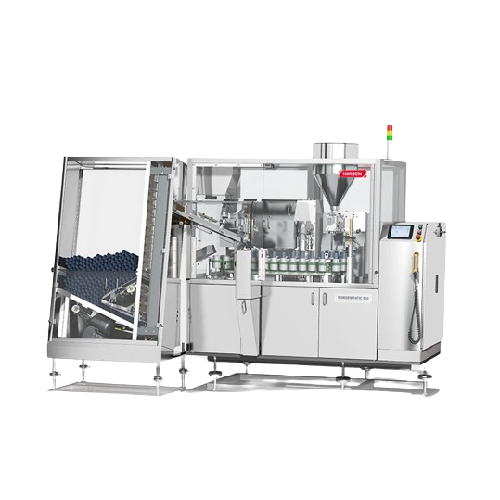

The NM 902 from Norden is a robust and versatile tube filling machine designed for continuous operation in industries such as food, personal care, and pharmaceuticals. With a capacity of up to 120 tubes per minute, it excels in handling a wide range of tube types, including plastic, laminate, and aluminum. The machine is ideal for producing mayonnaise sachets, toothpaste, sunscreens, and more. Featuring a semi-automatic infeed system with storage capacity and a motorized sorting device, it ensures efficient tube loading and sorting. The ergonomic design and optional robot tube loader enhance line efficiency, accommodating both small and large tube diameters. Its clean-room suitability and durable construction make it perfect for 24/7 operations, while the PLC-controlled system allows seamless integration into existing production lines. Additionally, the NM 902 supports compliance with industry standards, offering a reliable solution for high-speed, precise tube filling and packaging.
Benefits
- Ensures consistent production with 24/7 operation capability.
- Enhances line efficiency with ergonomic loading and robot tube loading options.
- Supports a wide range of tube sizes and materials, offering flexibility in production.
- Facilitates smooth integration with existing systems via PLC-controlled operations.
- Maintains clean-room standards, ensuring high-quality product output.
- Applications
- Food,Home care,Personal care,Chemicals,Pharma,Healthcare
- End products
- Toothpaste tubes,Sunscreen tubes,Antibacterial ointment tubes,Mayonnaise sachets,Shaving cream tubes,Hair conditioner sachets,Deodorant tubes,Liquid soap tubes,Paint sample tubes,Gel-based lotions
- Steps before
- Tube preparation,Sorting,Infeed loading
- Steps after
- Packing,Tray packing,Case packing,Cartoning
- Input ingredients
- plastic tubes,laminate tubes,aluminum tubes
- Output ingredients
- filled tubes,sealed tubes
- Market info
- Norden Machinery, part of the Coesia Group, is renowned for its expertise in designing and manufacturing advanced tube filling machines, particularly for the pharmaceutical, cosmetics, and food industries, emphasizing precision and high-speed performance.
- Operating mode
- Intermittent
- Max filling volume
- 300 ml
- Min filling volume
- 1 ml
- Max pack diameter
- 50 mm
- Min pack diameter
- 10 mm
- Max pack length
- 250 mm
- Min pack length
- 50 mm
- Machine depth
- 1550 mm
- Machine height
- 2115 mm
- Machine length
- 2900 mm
- Machine weight
- 3000 kg
- Production capacity (standard)
- 100 tube/min
- Production capacity (option)
- 120 tube/min
- Production capacity
- 100 tpm (standard) / 120 tpm (option)
- 24/7 production capability
- Yes
- Infeed systems
- Semi-automatic / Robot tube loader
- Cleanability
- Suitable for clean room production
- Heat sensitivity
- Suitable for clean room production
- Machine depth
- 1550 mm
- Machine height
- 2115 mm
- Machine length
- 2900 mm
- Machine weight
- 3000 kg
- Integration possibilities
- Robot tube loader
- Infeed system
- Semi-automatic
- Infeed system
- Motorized sorting device
- Infeed system
- Ergonomic tube loader
- Construction
- Sturdy design suitable for 24/7 production
