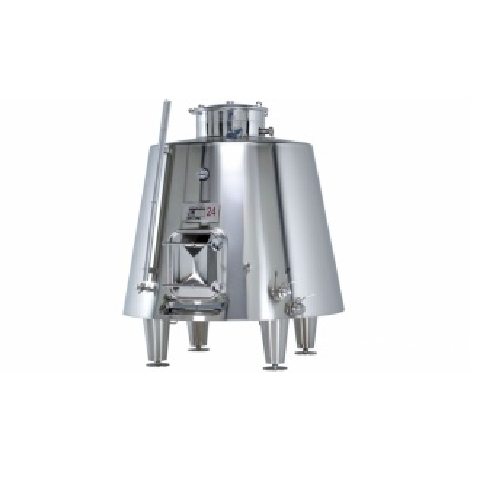

Truncated wine fermentation tank

Achieve optimal temperature control and efficient maceration for red wine production with a tank design that enhances grape juice and marc interaction, ensuring superior flavor profiles in your final product.

Optimizes Fermentation and Temperature Control

The ST Truncated Tank from The SERAP Group offers an innovative solution for red wine producers seeking precision and efficiency in their fermentation process. This specialized tank enhances the maceration of grape juice and marc through its optimized truncated shape, promoting thorough immersion of two-thirds of the cap. The tank is constructed from AISI 304 stainless steel with a bright annealed interior finish, ensuring minimal cleaning and high corrosion resistance. With a capacity ranging from 25 to 206 hectolitres, it adeptly manages temperature variations for both cooling and heating phases, crucial during fermentation and maceration.

The ST Truncated Tank integrates into existing workflows with ease, featuring a laser-welded heat exchange system that delivers exact temperature control without internal tank marking. An isothermal option enhances efficiency by reducing energy usage through polyurethane foam insulation, preventing condensation. This equipment is ideal for crafting a range of red wines, including Cabernet Sauvignon and Pinot Noir, while maintaining controlled atmospheres for optimal storage conditions. The tank supports batch processing, offering wineries and large-scale producers a robust and flexible solution, backed by SERAP’s engineering expertise and support.

Benefits

  • Enhances flavor extraction with optimal maceration due to precise temperature control.
  • Lowers energy costs through efficient insulation and minimized condensation.
  • Ensures easy maintenance and minimizes contamination risks with a bright annealed stainless steel finish.
  • Supports scalable production needs with capacities up to 206 hectolitres.
  • Integrates seamlessly with existing workflow, offering flexibility for high-scale wine production.

General


Applications
Wine storage,Winemaking projects,Red wines,Wine-making
End products
Cabernet sauvignon,Syrah,Sangiovese,Bordeaux blend,Pinot noir,Tempranillo,Malbec,Merlot,Zinfandel,Red wine blend
Steps before
Grape harvest,Cold pre-fermentation maceration,Grape juice/marc exchanges
Steps after
Hot post-fermentation maceration,Wine storage at controlled temperatures,Off-loading with cap collapse
Input ingredients
grape juice,grape marc,grape harvest
Output ingredients
red wine
Market info

Technical Specifications


Capacity
25 to 206 hectolitres
Material
AISI 304 stainless steel
Interior Finish
Bright annealed stainless steel plate
Exterior Finish
Circular-polished
Temperature Control
Optimised via laser-welded exchange surfaces
Cleaning Method
Minimum cleaning due to bright annealed surface
Insulation Option
Polyurethane foam injection
Shape
Truncated
Temperature Maintenance
Isothermal option available

Operating Characteristics


Temperature Control
Optimised temperature control throughout the wine-making phases
Cleaning Method
Minimum cleaning due to bright annealed stainless steel
Run-off System
Large drain grid for run-off
Insulation Option
Polyurethane foam injection
Energy Efficiency
Energy savings with isothermal option
Cap Clearing
Facilitated by smaller surface
Cap Immersion
Two-thirds cap immersion
Temperature Rise
Rapid for hot post-fermentation maceration
Cold Pre-fermentation Maceration
Cooling and maintaining grape harvest at chosen temperature
Off-loading Efficiency
Cap collapse facilitates off-loading
Batch vs. Continuous Operation
Batch

Material Compatibility


Abrasion resistance
Yes
Biological compatibility
Food-grade,suitable for wine
Cleanability
Bright annealed stainless steel for easy cleaning
Corrosive resistance (e.g. acids)
Highly resistant to acidic conditions in wine
Density/particle size
N/A

Physical Characteristics


Tank shape
Truncated
Capacity
25 to 206 hectolitres
Material
AISI 304 (standard 1.4301) stainless steel
Interior finish
Bright annealed stainless steel plate
Exterior finish
Circular-polished finish
Discharge method
Large drain grid

Custom Options


Insulation option
Polyurethane foam injection
Exterior finish
Circular-polished
Interior finish
Bright annealed stainless steel plate
Model option
Compartmented model available
Shape
Optimised truncated shape
