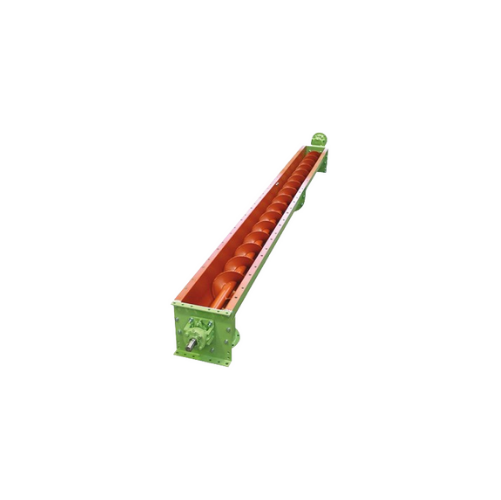

Trough screw conveyors for powdery and granular materials
Optimize your material handling process with a flexible screw conveyor system that efficiently manages the flow of powdery and granular substances across diverse applications, ensuring seamless integration into existing production lines.
Transports and Processes Powders and Granules Efficiently
The CA Trough Screw Conveyor system from WAMGROUP is engineered to deliver versatile material handling solutions across a range of industries, from pet food and plastics processing to cement and mining. This modular system utilizes helicoid screw flighting within a U or V-shaped design, optimizing transport of powders and granules for applications producing end-products such as plastic pellets and cement powder. With configurations to suit light to extra heavy-duty needs, it ensures efficient integration into existing production lines through features like direct gear motor drives and customizable spout options. The conveyor is ATEX, Zone 22 certified, accommodating high safety standards for hazardous environments. Constructed from carbon steel, it offers robust resistance against wear while maintaining worldwide spare parts availability through WAM subsidiaries.
Benefits
- Ensures continuous operation with modular and adaptable design, reducing production interruptions.
- Decreases maintenance costs with readily available matching spare parts.
- Enhances safety and compliance with ATEX, Zone 22 certification for hazardous applications.
- Minimizes material loss and contamination through robust shaft sealing and gear motor integration.
- Adapts to diverse industrial needs with customizable configurations for different material types and weights.
- Applications
- Chemicals,Lime,Animal feed,Washing powder,Detergents,Pet food,Soap,Wood processing,Environmental technology,Plastics,Gypsum,Mining,Cement
- End products
- Pelleted animal feed,Wood chips,Crushed ore,Bar soap,Dry pet food kibbles,Liquid detergents,Industrial chemicals (e.g,Cement powder,Gypsum boards,Recycled materials,Hydrated lime,Laundry powder,Plastic pellets,Fertilizers)
- Steps before
- Grinding,Emulsification,Mixing
- Steps after
- Packing,Bagging,Storage
- Input ingredients
- powders,granular materials,pet food ingredients,plastics pellets,soap ingredients,washing powder,detergents,animal feed,wood chips,chemicals,cement,lime,gypsum,mining materials
- Output ingredients
- conveyed powder,conveyed granular materials,processed pet food,processed plastic products,manufactured soap,produced washing powder,final detergent products,animal feed products,wood processed materials,processed chemicals,conveyed cement,processed lime,processed gypsum,mined materials
- Market info
- WAMGROUP is known for its expertise in manufacturing bulk material handling and processing equipment, including screw conveyors, dust collectors, and valve systems, with a strong reputation for innovation, quality, and global market presence.
- Material Handling
- Powdery or granular materials
- Construction Material
- Carbon steel with surface finishing
- Trough Shape
- U or V-shaped
- Trough Length
- Modular flanged sections
- Drive Options
- Bare shaft,direct compact gear motor drive,direct gear motor with semi-elastic coupling,offset gear motor drive with chain or belt transmission
- Certification
- ATEX,Zone 22
- Load Design
- Light,medium-heavy,or extra heavy-duty
- Intermediate Bearings
- Greased or self-lubricating slide bushes
- Screw Flighting Type
- Helicoid flighting welded on center pipe
- Outlet Spout
- Square or rectangular outlet spouts
- Automation level
- Manual / PLC / SCADA
- Batch vs. continuous operation
- Batch / Inline Continuous
- Energy efficiency
- 0.5–2 kWh/kg moisture
- CIP/SIP
- CIP 121°C / SIP 135°C
- Cleaning method
- CIP / Manual
- Abrasion resistance
- Yes
- Cleanability
- Easy to clean
- Corrosive resistance (e.g. acids)
- Yes
- Density/particle size compatibility
- 0.5–2.5 g/cm³ / 50–3000 µm
- ATEX certification
- Zone 22
- Discharge method
- Outlet spouts with integrated WAM standard drilled flanges
- Shape
- U or V-shaped trough
- Shaft Configuration
- Helicoid screw flighting welded on a centre pipe
- Drive Unit Position
- Mounted at inlet or outlet end
- Material
- Carbon steel with suitable surface finishing
- Intermediate Bearing
- Hanger bearings with greased or self-lubricating slide bushes
- Flange Type
- Flanged end bearing assemblies with shaft seals
- Modularity
- Trough in standard length modular flanged sections
- Covers
- Bolted trough cover sections
- Control panel type
- Manual / PLC / SCADA
- Drive type
- Bare shaft / Direct compact gear motor drive / Offset gear motor drive with chain transmission / Offset drive with belt transmission
- Intermediate bearings
- Greased / self-lubricating slide bushes
- Screw type
- Ribbon flight / Paddles / Helicoid flighting
- Inlet/outlet configuration
- Square / Rectangular / Circular spouts with or without connecting flange
- Trough design
- U or V-shaped with modular flanged sections
- Trough cover
- Bolted trough cover modules (end module with integrated inlet spout)
- Shaft seals
- Standard / Gas or air-purged / Grease chamber
- Material options for screws
- Carbon steel / Special wear-resistant materials for medium heavy and heavy-duty versions
