Tray erecting system for various tray styles

Effortlessly configure diverse tray styles with an efficient system designed to streamline your packaging line, eliminating manual changeovers and minimizing downtime for continuous operation.

Erects and Forms Trays and Cases

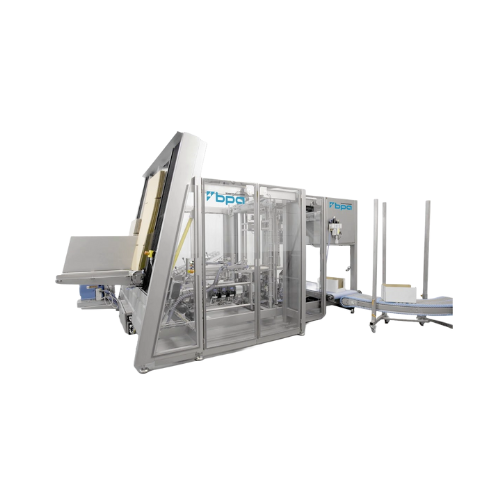

The BoxForm 300 from BluePrint Automation is engineered to meet the diverse needs of packaging lines across various industries. This automatic tray and case former excels in erecting open, wrap-around, stack, and corner post trays, utilizing an ergonomic design that accommodates two case sizes simultaneously with no need for additional change parts. It is ideal for applications ranging from bakery goods to pharmaceutical products, ready to handle everything from bread rolls to vitamin tablets. The BoxForm 300 integrates seamlessly into existing production lines with its single or double magazine configuration, ensuring high-speed and continuous operation. Its flexibility makes it suitable for any plant layout, and its design minimizes energy consumption. Customization options allow for tailored solutions to fit unique production requirements, supported by BPA’s expert engineering team.

Benefits

  • Enhances production efficiency by handling multiple tray styles without manual adjustments.
  • Integrates effortlessly into existing lines, supporting diverse plant configurations.
  • Minimizes energy usage with automated case size adjustments.
  • Offers customizable options for specific industry needs, ensuring optimal system compatibility.
  • Reduces operational costs through high-speed, continuous operation.

General


Applications
Personal care,Frozen,Protein,Pet food,Snacks,Bakery,Confectionery,Fresh produce,Dry food,Pharma,Ice cream,Dairy
End products
Chocolate truffles,Bread rolls,Powdered milk,Lettuce,Dog food kibbles,Dried pasta,Ice cream tubs,Vitamin tablets,Frozen vegetables,Potato chips,Cheese blocks,Shampoo bottles,Protein bars
Steps before
Processing
Steps after
Palletizing
Input ingredients
trays,cases,cartons
Output ingredients
erected open trays,wrap around trays,stack trays,corner post cases
Market info
BluePrint Automation is known for designing and manufacturing innovative packaging automation systems, specializing in end-of-line robotic case packing solutions for various industries, enhancing operational efficiency and product handling with a strong reputation for quality and innovation.

Technical Specifications


Tray Erecting Styles
Open,wrap around,stack,corner post
Case Sizes
Two sizes simultanously
Automation
Automatic change over
Change Over Parts
No change parts
Magazine Configuration
Single or double
Plant Compatibility
Fits most plant configurations

Operating Characteristics


Trays Style
Open,Wrap Around,Stack,Corner Post
Case Size Erection
Two sizes at once
Automatic Change Over
No change parts
Magazine Type
Single or Double
Integration Level
Turnkey Solution
Ergonomic Design
Yes

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Tray style
Open / Wrap around / Stack / Corner post
Case size range
Adjustable

Physical Characteristics


Machine footprint
Customizable to fit various plant configurations
Tray style capability
Open,wrap around,stack,corner post cases
Case size capacity
Two case sizes concurrently
Magazine type
Single or double
Ergonomic design
Yes

Custom Options


Auto changeover
Yes
Control panel type
Touchscreen HMI
Integration possibilities
Fully Integrated Line
Case size capability
Duel Sizes Simultaneously
Magazine type
Single or Double
Plant configuration compatibility
Fits Most Configurations
