Transfer valve cleaning for sterility assurance
Ensure seamless cleaning and sterility while maintaining containment integrity, essential for safely processing hazardous materials in pharmaceutical and biotech production environments.
Facilitates In-Place Cleaning and Sterilization

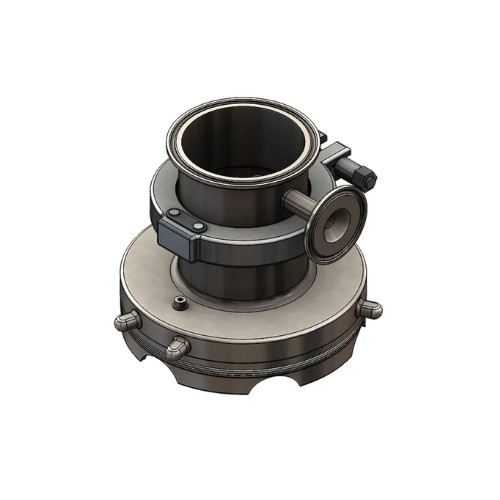

The Active Cleaning Cap from ChargePoint Technology excels in enhancing the cleanliness and sterility of transfer valve systems within the challenging environments of pharmaceutical and chemical manufacturing. This equipment offers unique features such as a GMP-compliant design that maximizes exposure of the active unit’s surface area during the cleaning cycle. With a special sealing methodology, it eliminates traditional seat/disc components, ensuring thorough decontamination and reducing cross-contamination risks. Ideal for applications in sterility assurance and powder containment, it supports processes like WIP, CIP, and SIP. Its compatibility with active pharmaceutical ingredients and hazardous chemical powders makes it vital for maintaining a controlled environment in aseptic manufacturing. Available in various configurations and materials like 316L stainless steel and optional A22, this system offers both manual and batch operation flexibility. Its integration capability within existing systems is seamless, providing manufacturers with a reliable solution for comprehensive in-place cleaning and sterilization.
Benefits
- Enhances cleaning efficiency, reducing cross-contamination risks significantly.
- Protects operator safety by ensuring contained cleaning of hazardous residues.
- Maintains aseptic conditions with seamless in-place sterilization capabilities.
- Versatile for varied production setups with multiple configuration options.
- Optimizes facility compliance with GMP standards, ensuring quality assurance.
- Applications
- Fine chemicals,Battery industry,Sterility assurance,Biopharmaceuticals,Powder containment,Pharmaceuticals
- End products
- Biologics,Active pharmaceutical ingredients,Lithium-ion battery materials,Hazardous chemical powders,Monoclonal antibodies,Oral solid dosage forms,Oncology drugs,Cathode and anode powders,Lyophilised products,Sterile injectables
- Steps before
- Grinding,Milling,Mixing
- Steps after
- Sterilization,Drying,Packing
- Input ingredients
- cleaning media,steam for sterilisation,decontamination fluid
- Output ingredients
- hazardous product residues,condensate,process drain
- Market info
- Chargepoint Technology is known for its expertise in designing and manufacturing high containment and sterile transfer solutions for pharmaceutical and biopharmaceutical industries, particularly in powder containment and aseptic transfer systems.
- Size (compatible Active unit bore dia.)
- 50mm (2”),100mm (4”),150mm (6”),200mm (8”)
- Product contact material
- 316L,Optional
- Seal material
- EPDM,FKM,FFKM,PTFES
- Spray Connection
- 25mm (1”) Tri-Clamp
- Drain connection
- None or 75mm (3”) Tri-Clamp
- Pressure Rating
- None,Optional
- Cleaning method
- WIP / CIP / SIP
- Automation level
- Manual / PLC / SCADA
- Batch vs. continuous operation
- Batch
- Biological compatibility
- Yes
- Cleanability
- GMP design,steam sterilizable
- Corrosive resistance (e.g. acids)
- 316L Stainless Steel
- Seal material
- EPDM,FKM,FFKM
- Chemical resistance
- Acids and decontaminants
- Size (compatible Active unit bore dia.)
- 50mm (2”),100mm (4”),150mm (6”),200mm (8”)
- Product contact material
- 316L
- Optional
- A22
- Seal material
- EPDM,FKM,FFKM/PTFE
- Spray Connection
- 25mm (1”) Tri-Clamp
- Drain connection
- 75mm (3”) Tri-Clamp
- Pressure Rating
- None
- Optional
- Up to 6Bar (check per size)
- Weight Options
- Available in a lightweight version with plastic materials for 200mm size
- Handling Features
- Larger sizes feature lifting handles for manual docking
- Sealing Methodology
- Outer perimeter seal
- Connection Type
- Tri-Clamp
- Attachment Size
- 50mm,100mm,150mm,200mm
- Material of Construction
- 316L / POM / A22
- Spray Connection
- 25mm Tri-Clamp
- Drain Connection
- 75mm Tri-Clamp
- Pressure Rating
- Up to 6Bar
- Handle Option
- Lifting handles for 150mm and 200mm
- Lightweight Version
- Available for 200mm size
