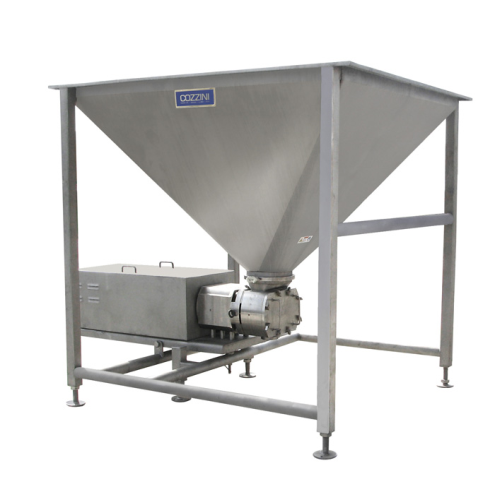

Transfer hopper with stainless Pd pump for food processing

Eliminate spillage and maintain continuous flow with a positive displacement transfer hopper, efficiently connecting mixers to storage or production lines in high-speed food processing operations.

Transfers and Pumps Solid and Slurry Products

The Transfer Hopper with Stainless PD Pump from Cozzini is designed to seamlessly integrate into your emulsion processing line, efficiently facilitating the high-speed transport and pumping of solids and slurry products. By positioning the hopper directly under mixers, it negates the need for elevation to discharge product, allowing for streamlined operation in pet food, processed meats, protein blends, and sauce production. With capacities up to 20,000 lbs and transfer rates reaching 1,000 lbs per minute, it is ideal for high-volume operations such as canned dog food, chicken nuggets, and mayonnaise production. The system is powered by either electric or hydraulic pumps, including the PD650, and features a pivoting pump base for enhanced sanitation. Constructed from stainless steel, it offers excellent corrosion resistance and complies with USDA and CE standards, adhering to AMI sanitary equipment design. Cozzini’s engineering support also allows customization to fit specific application needs, ensuring a tailored solution for continuous, efficient production.

Benefits

  • Increases production efficiency by enabling continuous, high-speed transfer without the need to elevate mixers.
  • Minimizes product spillage with its design that fully spans mixer discharge areas.
  • Ensures compliance with sanitization standards, reducing contamination risks.
  • Enhances operational flexibility with options for electric or hydraulic power.
  • Facilitates easy cleaning and maintenance with a pivoting pump base.

General


Applications
Sauces,Food emulsions,Pet food,Protein blends,Processed meats
End products
Chicken nuggets,Canned dog food,Mayonnaise,Protein bars,Tomato ketchup
Steps before
Emulsification,Blending,Mixing
Steps after
Storage,Continuous Feed,Stuffing,Linking
Input ingredients
blended material,mixer discharge
Output ingredients
emulsion,storage silo,stuffers,linkers
Market info
Cozzini (Middleby) is known for manufacturing industrial food processing equipment, specializing in grinding, mixing, and emulsifying machinery, with a strong reputation for innovation, quality, and customer service in engineered-to-order solutions for the food processing industry.

Technical Specifications


Capacity
Up to 20,000 lbs (9,100 kg)
Transfer rate
Up to 1,000 lbs/min (450 kg/min)
Pump type
Positive Displacement Pump (PD650)
Power type
Electric or hydraulic powered
Pump base
Pivoting for easy sanitation

Operating Characteristics


Working mechanism
Positive displacement pump
Integrated steps
Transfer from mixer/blender to storage silo or vessel
Changeover time
Quick pivoting pump base
Batch vs. continuous operation
Continuous feed
Automation level
Manual / PLC
CIP/SIP
Easy sanitation
Cleaning method
Pivoting pump base for sanitation

Material Compatibility


Corrosive resistance (e.g. acids)
Stainless steel
Biological compatibility
Food-grade materials

Physical Characteristics


Machine footprint
Custom sizes,fits under mixer
Capacity
Up to 20,000 lbs (9,100 kg)
Discharge method
Pump
Pumping rate
Up to 1,000 lbs/min (450 kg/min)
Power options
Electric or hydraulic
Pump base type
Pivoting for easy sanitation

Custom Options


Pump size
500,575,650 PD
Power type
Electric / Hydraulic
Pump base
Pivoting
