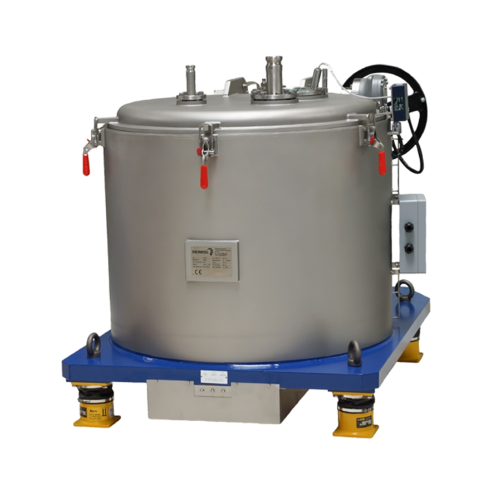

Top discharge centrifuge for chemical manufacturing

Achieve precise filtration and separation with top discharge centrifuges, ideal for handling diverse product characteristics and ensuring gentle solids discharge without particle destruction in your batch processing operations.

Efficiently Separates and Processes Diverse Solid-Liquid Mixtures

The V 630 – 1600 TC Series from HEINKEL is a range of top discharge centrifuges engineered for versatile applications across chemical, pharmaceutical, and food processing sectors. These centrifuges are designed to effectively handle diverse solid-liquid mixtures, leveraging a user-friendly basket design for batch processing. Each unit is adept at filtration, separation, washing, and extraction, ensuring high-quality outputs such as dyes, APIs, and herbal extracts. With basket diameters ranging from 630 mm to 1600 mm, they are suitable for variable batch sizes, providing flexibility in production lines. The centrifuges feature lossless filter cake discharge and gentle solids handling to preserve particle integrity. Engineered to integrate seamlessly with existing systems, these units offer PLC control and can be customized for different material specifications to ensure chemical and corrosion resistance. Ideal for multiple industries, these centrifuges meet stringent process requirements while facilitating easy cleaning and maintenance through a rugged, simple design and reliable removal systems.

Benefits

  • Enhances production flexibility by adapting easily to various product characteristics.
  • Ensures product integrity with gentle solids discharge that prevents particle destruction.
  • Minimizes operational costs through efficient washing and extraction processes.
  • Reduces maintenance time with a simple and robust system for filter bag removal.
  • Supports diverse industry applications, from pharmaceuticals to metal recycling.

General


Applications
Surface coating,Fine chemicals,Chemical products,Metal recycling,Food products,Pharmaceuticals
End products
Herbal extract powders,Recycled aluminum or copper powders,Active pharmaceutical ingredients (apis),Food colorants,Coating dispersions,Dyes and pigments,Metal powders for 3d printing,Dry food ingredients like spices and protein powders
Steps before
Mixing,Blending,Crystallization,Precipitation
Steps after
Washing,Drying,Packing,Solids Handling
Input ingredients
chemical products,fine chemicals,difficult to filter products
Output ingredients
filtered product,lossless filter cake discharge,gentle solids
Market info
Heinkel is known for manufacturing high-quality industrial equipment, specializing in centrifuges, dryers, and other engineered-to-order machinery for the chemical, pharmaceutical, and environmental sectors, with a reputation for innovation and reliability.

Technical Specifications


Basket diameter
630 mm - 1600 mm
Basket depth
630 mm
Filter area
0.796 m² - 4.028 m²
Nominal volume
160 l - 820 l
Max. filling
276 kg - 1,025 kg
Max. speed
750 1/min - 1,900 1/min
Centrifugal force
503 x g - 1,271 x g
Capacity
Small to large batches
Discharge method
Top discharge
Washing and extraction effect
Excellent

Operating Characteristics


Product Adaptability
Flexible adaptation for difficult to filter products
Discharge Type
Lossless filter cake discharge
Gentle Solids Discharge
Without particle destruction
Washing and Extraction Effect
Excellent
Batch Operation
Yes
Filter Bag Removal
Reliable system for removal of the filter bag

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Material flexibility
Adaptable to a variety of products
Batch size compatibility
Small to large batches
Filter difficulty
Suitable for difficult to filter products

Physical Characteristics


Basket diameter
630 mm – 1,600 mm
Basket depth
400 mm – 800 mm
Machine footprint
1,420 mm x 950 mm to 2,500 mm x 1,750 mm
Machine height
1,250 mm – 1,650 mm
Machine weight
1,200 kg – 5,900 kg
Discharge method
Top discharge
Filter area
0.79 m² – 4.02 m²
Nominal volume
63 l – 820 l

Custom Options


Product adaptability
Adjustable for small to large batches
Filter bag system
Detachable border ring
Control panel type
PLC-controlled
Discharge method
Lossless filter cake discharge
