Tablet pressing system for solid chemicals and cosmetic products

Optimize your tableting process for diverse solid products with reliable compression and forming capabilities, ensuring consistent quality and high-speed production efficiency.

Compresses and Forms Solid and Granular Tablets

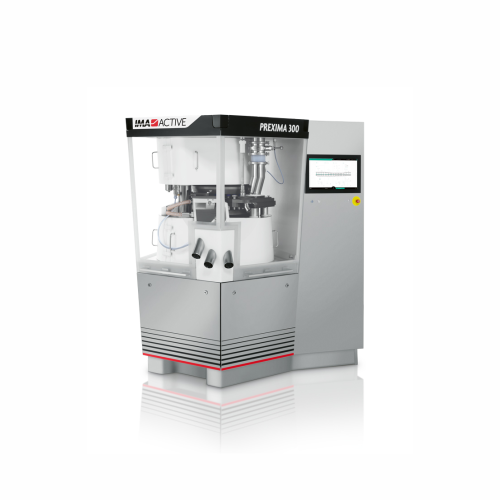

The PREXIMA series from IMA Group represents a robust solution for high-speed, continuous tablet production across pharmaceutical, chemical, and cosmetic industries. Engineered for precision, these tablet presses utilize interchangeable die tables and tooling to accommodate diverse tablet shapes and sizes, including complex bilayer formations. Featuring advanced isolation with special seals, the equipment minimizes contamination risks while maintaining optimal performance, delivering pre-compression and main compression forces up to 100 kN. Its high-yield motorization minimizes heat, enhancing efficiency without external cooling devices. The series includes models with output capabilities of up to 21,000 tablets per minute, designed for easy integration into existing production lines. PREXIMA’s user-friendly design incorporates a strategic HMI for enhanced operator efficiency and streamlined maintenance processes. It ensures compliance with industry standards, offering customization options tailored to specific material requirements in demanding operational environments.

Benefits

  • Enhances production efficiency by accommodating multiple tablet sizes and shapes with quick tooling changes.
  • Ensures consistent tablet quality with robust compression up to 100 kN.
  • Minimizes maintenance downtime through optimized lubrication and efficient design.
  • Achieves low operational noise, improving workplace conditions.
  • Facilitates seamless integration into production lines with compact footprint and in-line connectivity.

General


Applications
Solid chemicals,Cosmetic products,Pharmaceutical tablets
End products
Ibuprofen tablets,Detergent tablets,Vitamin c tablets,Antacid tablets,Dishwasher tablets,Face powders,Chemical absorbent tablets,Calcium supplements,Pharmaceutical caplets,Bath bombs,Effervescent tablets,Fertilizer tablets,Aspirin tablets,Paracetamol tablets,Blush powders
Steps before
Formulation,Blending,Granulation
Steps after
Inspection,Packaging,Cartoning
Input ingredients
solid chemicals,cosmetic products
Output ingredients
tablets,bilayer tablets
Market info
IMA is known for its expertise in manufacturing automated packaging machines and solutions, particularly for the pharmaceutical, cosmetics, food, tea, and coffee industries, offering innovative, high-quality equipment and comprehensive customer service.

Technical Specifications


Die type
IMA 32DBBBIMA 8IMA 32 T
Tool type
IMA 32DBIMA 8IMA 32 T
Maximum tablet diameter (mm)
39 / 25 / 16 / 13
Number of press stations
18 / 27 / 33 / 41 / 55 / 20
Maximum output (tbl/min)
1,620 / 3,240 / 3,960 / 4,920 / 6,600 / 1,800 / 1,620
Maximum speed (rpm)
90 / 120
Maximum die filling (mm)
24 / 19 / 40
Maximum tablet thickness (mm)
1.5-12 / 1.5-10 / 20
Maximum pre-compression force (kN)
100
Maximum compaction force (kN)
100
Electrical power requirement (kW)
14 / 27
Standard voltage
400V (+/- 10%) 50-60 Hz

Operating Characteristics


Automation level
Manual / PLC / SCADA
Batch vs. continuous operation
Batch / Inline Continuous
Cleaning method
CIP / Manual
Noise level
<75 dB

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Machine footprint
Compact design
Tablet shape adaptability
Multiple shapes
Die table interchangeability
Yes
Noise level
< 75 dB
Compression tooling replacement
Easy to replace
Transport system
Compact and efficient
Panel type
Sound-proof panels
Installation type
Standalone or inline
HMI type
MAX new corporate HMI

Custom Options


Tablet shape customization
Wide range of tablet shapes and dimensions
Compression tooling
Interchangeable tooling for different tablet sizes
Die table configuration
Interchangeable die table for best configuration
Bilayer tablet capability
Available on PREXIMA 800 and 800T
HMI type
MAX new corporate HMI
Installation options
Stand alone or in-line connection
Transport system configuration
Conveyed to same exit chute for compact footprint
