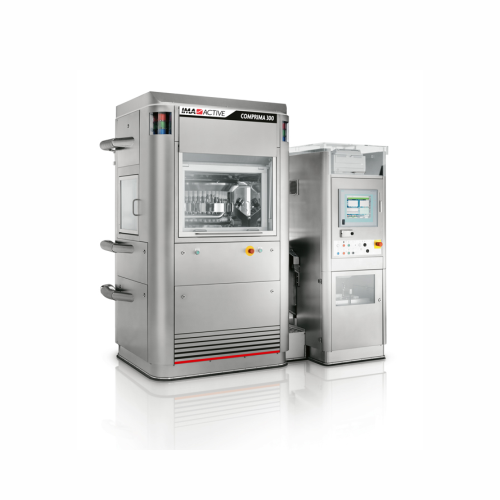

Tablet press for high-quality pharmaceutical tablets

Ensure optimal tablet quality and yield with an advanced compression system that prevents powder mix segregation, ideal for high-speed, continuous production of diverse tablet forms.

Compresses and Feeds Tablets Efficiently

The COMPRIMA series from IMA Group revolutionizes tablet manufacturing with its innovative compression system. Utilizing centrifugal force for precision powder feeding, it minimizes segregation and ensures optimal die filling. Applicable for pharmaceutical and biotech industries, it supports a variety of products such as Paracetamol, Ibuprofen, and multivitamins. Available in three models—COMPRIMA 150, 250, and 300—it offers production capacities up to 300,000 tablets per hour. The machines feature a fully automatic CIP system for efficient cleaning and high containment options (OEL 5), ensuring operator safety and product integrity. Designed for continuous operation, they integrate easily into existing lines with PLC automation, reducing downtime and enhancing productivity. The units comply with GMP standards, supporting the stringent requirements of pharmaceutical manufacturers.

Benefits

  • Ensures high tablet quality with up to 99.5% yield, minimizing waste.
  • Integrates seamlessly into high-speed production lines, enhancing efficiency.
  • Reduces contamination risks with advanced isolation and containment features.
  • Simplifies maintenance with a fully automatic CIP system, reducing downtime.
  • Complies with GMP standards, ensuring regulatory compliance in pharmaceutical manufacturing.

General


Applications
Supplements,Vitamins,Pharmaceutical tablets
End products
Ibuprofen tablets,Omega-3 supplements,Vitamin c tablets,Calcium supplements,Multivitamin tablets,Aspirin tablets,Paracetamol tablets
Steps before
Purification,Drying,Powder Mixing
Steps after
Coating,Packing,Inspection,Sterilization
Input ingredients
powder,tableting materials
Output ingredients
tablets,round tablets,oblong tablets,shaped tablets
Market info
IMA is known for its expertise in manufacturing automated packaging machines and solutions, particularly for the pharmaceutical, cosmetics, food, tea, and coffee industries, offering innovative, high-quality equipment and comprehensive customer service.

Technical Specifications


Maximum output (tablets/hour)
150,000 - 300,000
Maximum turret speed (RPM)
138
Number of stations
18 - 30
Round tablet dimensions (mm)
5÷17
Oblong tablets dimensions (mm)
5÷21.5
Compression force (kN)
Up to 80
Standard voltage
400 V (±10%) – 50 Hz
Maximum installed power
25 kW (50 Hz) – 27 kW (60 Hz)
Compressed air
300 l/minute at 6 bar
Minimum water delivery
70 l/minute – 3 bar – 60°
Weight (kg)
3,400
Automation
Fully automatic cleaning cycle
Cleaning method
Clean In Place system

Operating Characteristics


Working mechanism
Rotating turret with centrifugal force
Powder feeding system
Centrifugal die filling
Automation level
Fully automated with PLC
CIP/SIP
CIP system for automatic cleaning
Containment
High containment (OEL 5)
Changeover time
Minimized due to innovative design
Batch vs. continuous operation
Continuous operation
Safety features
Sealed doors and negative pressure

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Machine footprint
N/A
Weight
3,400 kg
Die filling mechanism
Centrifugal die filling
Control panel type
PLC-controlled
Isolation technology
Seals and bellows with glove ports

Custom Options


Integration possibilities
High containment,isolation technology
Discharge method
Glove ports
