Tablet coater for precision pan coating
Achieve precise coating control for pharmaceuticals and nutraceuticals, accommodating a wide range of batch sizes with quick changeovers and adjustable spray systems for consistent, high-quality end-products.
Coats and Dries Tablets Efficiently

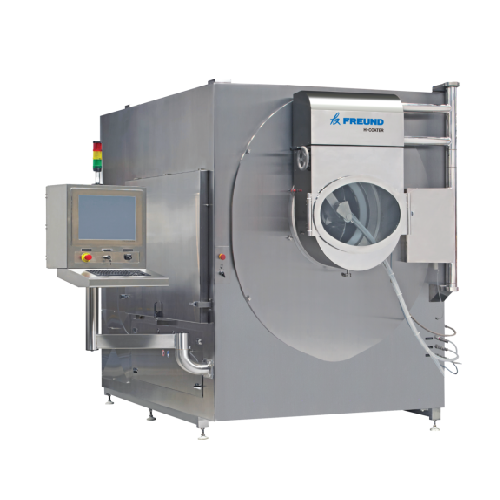

The Multi HI-COATER® from Freund is a sophisticated tablet coating system designed for pharmaceutical and nutraceutical applications. This system supports diverse coating requirements with interchangeable fully perforated pans, catering to batch volumes from pilot to full-scale production. The coating process is driven by AT-PRO™ Spray guns mounted on a patented manifold spray bar system, ensuring precise control over pattern and atomization airflow. This flexibility allows for efficient use in producing aspirin, multivitamins, and herbal extracts among others.
The Multi HI-COATER® accommodates film, sugar, and solvent coatings, with capacity options ranging from 11.5 to 1070 liters. Its automated, recipe-driven controls facilitate seamless integration into existing production lines, with front-of-unit pan access aiding swift changeovers within five minutes. This minimizes production downtime and maximizes throughput. The system’s optional Smart-Safe™ containment and EcoClean™ technology enhance safety and cleanliness, making it compliant with industry standards. Moreover, the construction features abrasion-resistant perforations and a sanitary mirror-smooth finish for durability and easy maintenance, supported by a continuous weld pan housing to eliminate potential leaks.
Benefits
- Enhances production efficiency with rapid five-minute pan changeovers, minimizing downtime.
- Optimizes coating quality with AT-PRO™ Spray guns, ensuring precise control and uniform coverage.
- Accommodates a wide range of batch sizes and coating types, providing flexibility for diverse product lines.
- Integrates seamlessly into existing workflows with automated, recipe-driven operations, reducing manual intervention.
- Ensures safety and compliance with optional Smart-Safe™ containment and hygienic design features.
- Applications
- Vitamins,Supplements,Pharmaceutical tablets,Nutraceuticals,Coating materials
- End products
- Herbal extract tablets,Calcium tablets,Coated ibuprofen tablets,Probiotic supplements,Vitamin c supplements,Multivitamin tablets,Omega-3 capsules,Aspirin tablets
- Steps before
- Granulation,Mixing,Drying
- Steps after
- Packing,Sterilization,Tablet Pressing
- Input ingredients
- film coating materials,sugar coating materials,solvent coating materials,tablets
- Output ingredients
- coated tablets
- Market info
- Freund is known for its expertise in granulation and coating technology, supplying high-quality industrial equipment for pharmaceutical, chemical, and food industries. Renowned for innovation and reliability, Freund consistently delivers engineered-to-order solutions tailored to client needs.
- Pan Diameter
- 991 mm (39"),1219 mm (48"),1524 mm (60"),1676 mm (66")
- Batch Range Size
- 9.2–856 kg
- Volume Min/Max
- 11.5–1070 L
- Spray Guns
- 4–8 guns
- Coating Method
- Pan Coating
- Interchangeable Pans
- HC-48 Multi,HC-60 Multi,HC-66 Multi
- Automation
- Automatic (Recipe-Driven) and Manual Modes
- Spray Control
- Atomization and Spray Pattern Control
- Material Handling
- Formed Anti-Slide Baffles
- Batch vs. continuous operation
- Batch
- Changeover time
- 5 Minutes or Less
- Automation level
- Automatic (Recipe-Driven) and Manual Modes
- Cleaning method
- Trolley Removed For Processing and Cleaning
- In-process adjustable
- Adjustable Spray Bar
- Front access
- Front-Of-Unit Pan Access
- Safety feature
- Smart-Safe™ Containment Optional
- Containment
- Contained Front Discharge As Option
- Abrasion resistance
- Abrasion Resistant Perforations
- Cleanability
- Sanitary Mirror-Smooth Finish
- Density/particle size
- 0.8 g/cc bulk density
- Pan volume capacity
- 10% to 100% brim volume
- Pan sizes
- HC-48 Multi
- HC-60 Multi
- 240L,340L,490L,675L,820L
- HC-66 Multi
- 340L,490L,675L,890L,1070L
- Pan diameter
- 991 mm (39"),1219 mm (48"),1524 mm (60"),1676 mm (66")
- Pan access
- Front of unit
- Changeover time
- 5 minutes or less
- Discharge method
- Contained front discharge (as option)
- Pan interior finish
- Sanitary mirror-smooth finish
- Footprint
- Compact
- Control panel type
- Color Touchscreen
- Discharge method
- Contained Front Discharge
- Interchangeable Pan Sizes
- 115L to 1070L
- Customizable Automation Level
- Automatic / Manual
- Spray Bar Adjustability
- In-Process Adjustable
- Cleaning Option
- Trolley Removed for Processing and Cleaning
- Exhaust Plenum
- Streamlined for Easy Lifting and Cleaning
- Pan Change Method
- Change-Over in 5 Minutes or Less
