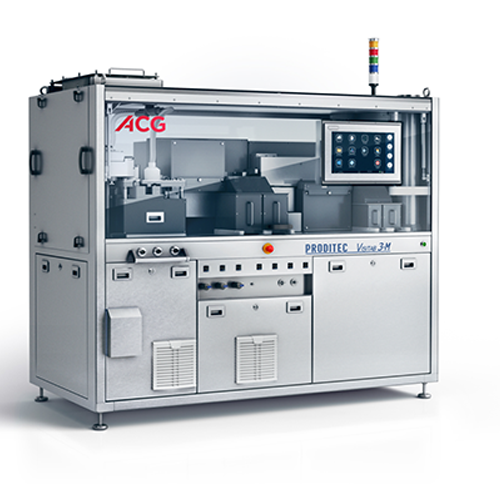

Tablet and capsule visual inspection system

Achieve unparalleled precision in tablet and capsule inspection with a high-speed system that detects even the smallest defects, ensuring quality control and compliance with pharmaceutical standards.

Inspects and Sorts Pharmaceutical Tablets and Capsules

The VISITAB 3-M from ACG is a cutting-edge, vision-based inspection system tailored for pharmaceutical manufacturers who demand meticulous quality control and efficiency. This system uses ten new-generation color cameras and 3D high-resolution laser sensors per track, delivering 360° inspection of tablets and capsules to identify cosmetic defects with precision. It is capable of sorting up to 600,000 units per hour, making it ideal for large-scale production of products like aspirin, multivitamin, and Omega-3 capsules. Its plug-and-play tooling allows for seamless integration into existing production lines with minimal storage requirements. The system is 21 CFR Part 11-compliant, ensuring adherence to regulatory standards, while its intuitive configuration means setup can be completed in as little as 30 minutes. With its robust design and anti-jamming feeding mechanism, the VISITAB 3-M is engineered to handle complex-shaped tablets, ranging from 5mm to 13mm in diameter.

Benefits

  • Ensures top-tier quality control by detecting even the smallest defects, ensuring product integrity.
  • Elevates production efficiency with high-speed sorting up to 600,000 tablets per hour.
  • Minimizes setup time to 30 minutes with user-friendly, template-based configuration.
  • Guarantees regulatory compliance with 21 CFR Part 11 standards for secure and audit-friendly operation.
  • Seamlessly integrates into existing lines with compact, low-storage plug-and-play tooling.

General


Applications
Capsules,Pharmaceutical tablets
End products
Gelatin capsules,Ibuprofen tablets,Vitamin d capsules,Fish oil capsules,Multivitamin tablets,Omega-3 capsules,Aspirin tablets,Paracetamol tablets
Steps before
Granulation,Pelletisation,Tablet Pressing
Steps after
Packing,Tablet Coating,Blister Packaging
Input ingredients
tablets,capsules,complex-shaped tablets,flat tablets,semi-convex tablets
Output ingredients
inspected tablets,inspected capsules,tablets with surface analysis,tablets sorted by optical criteria
Market info
ACG World is known for its expertise in manufacturing pharmaceutical and nutraceutical processing and packaging machinery, offering innovative equipment solutions and maintaining a strong reputation for quality and reliability in the global market.

Technical Specifications


Inspection speed
Up to 600,000 tablets/hr
Tablet size range
5 - 13 mm (width/diameter)
Inspection technology
New-generation colour cameras and Blu-ray laser technology
Number of cameras
10 per track
Laser sensors
Two 3D high resolution laser sensors per track
Feeding mechanism
Two high-speed vacuum tracks with anti-jamming
Configuration set-up time
30 minutes
Regulatory compliance
21 CFR Part 11-compliant

Operating Characteristics


Automation level
PLC / SCADA
Inspection speed
Up to 600,000 tablets/hr
Changeover time
30 minutes
CIP/SIP
Not specified

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Machine Footprint
Compact
Feed Method
Anti-jamming vacuum tracks
Tablet Size
5 - 13 mm diameter/width
Control Panel Type
Intuitive,template-based
Compact Footprint
Yes
Discharge Method
High-speed sorting

Custom Options


Control panel type
Intuitive configuration with template-based set-up
Integration possibilities
21 CFR Part 11-compliant,Regulatory audit-friendly
Inspection technology
Colour camera and Blu-ray laser technology
Tablet feeding format parts
All included
Tooling
Plug-and-play,low-volume storage
