Tablet and capsule ink printing and laser writing solution

Maximize efficiency in marking and coding with a high-speed solution capable of printing and laser writing on tablets, capsules, and caplets, ensuring accurate and durable product identification at outputs of up to 180,000 pieces per hour.

Prints and Marks Tablets and Capsules

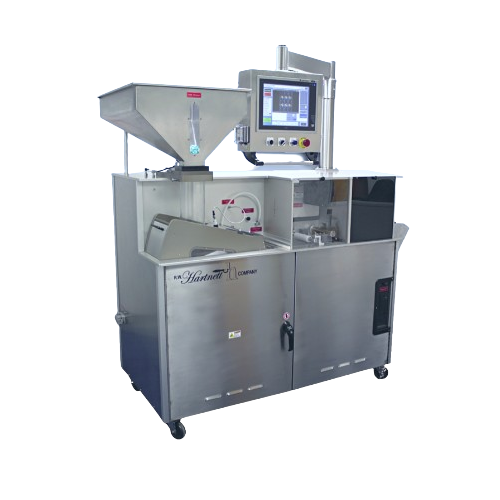

The H-Track Combination Ink Printing and Laser Writer from RW Hartnett is a sophisticated solution designed for pharmaceutical and nutraceutical manufacturers aiming for precise marking on solid dosage forms. This equipment offers single-sided ink printing and laser marking capabilities, seamlessly integrating into high-speed production lines with an output of 120,000 to 180,000 pieces per hour. Equipped with an adjustable feed hopper and additional bulk hopper, it ensures consistent fill rates and production speed. Utilizing a servo drive system, it achieves precision print registration, while a swingarm 15” touchscreen HMI facilitates user interaction and process control.

Its Wi-Fi connectivity, batch recording, and compliance with 21 CFR Part 11 make it ideal for stringent regulatory environments. Optional features such as a vision inspection system, ink viscosity system, and rubber roll cleaning system further enhance its functionality. The H-Track system is CE and UL certified, ensuring adherence to international safety and quality standards. Designed for ease of maintenance, the quick-change carrier bar tooling allows minimal downtime, while additional engineering support is available for customization needs.

Benefits

  • Enhances production efficiency with a throughput of up to 180,000 pieces per hour.
  • Ensures precision and quality with servo drive-controlled ink printing and laser marking.
  • Simplifies operation and monitoring through intuitive 15” touchscreen HMI and Wi-Fi connectivity.
  • Facilitates regulatory compliance with 21 CFR Part 11 certification.
  • Minimizes production interruptions with quick-change tooling and optional vision inspection.

General


Applications
Supplements,Soft gelatin capsules,Pharmaceutical tablets,Caplets
End products
Acetaminophen tablets,Multivitamin supplements,Vitamin d caplets,Omega-3 soft gel capsules
Steps before
Tablet Compression,Capsule Filling,Caplet Formation
Steps after
Product Inspection,Packaging,Quality Control Testing
Input ingredients
tablet,soft gelatin capsule,caplet
Output ingredients
ink printed tablet,laser marked tablet,ink printed soft gelatin capsule,laser marked soft gelatin capsule,ink printed caplet,laser marked caplet
Market info
RW Hartnett is known for designing and manufacturing precision printing and vision inspection equipment for the pharmaceutical and confectionery industries, offering high-quality, innovative solutions tailored to client needs, with a strong reputation for reliability and excellence.

Technical Specifications


Production Output
120,000 to 180,000 pieces per hour
Electrical
240 VAC / 30 amp/ 3 phase
Air Pressure
90 psi @ 5 scfm
Print Registration
Servo drive system
Connectivity
Wi-Fi connectivity
HMI
Swingarm 15” touchscreen

Operating Characteristics


Single sided operation
Ink printing and laser marking
Automation level
Servo drive system
Production speed
120,000 to 180,000 pieces per hour
Batch recording
21 CFR Part 11 Compliant
Wi-Fi connectivity
Available
HMI type
Swingarm 15” touchscreen
Changeover time
Quick change carrier bar tooling
Bulk Hopper
Maintains high production speeds

Physical Characteristics


Feed/discharge method
Adjustable feed hopper
Control panel type
Swingarm 15” touchscreen HMI
Automation level
Wi-Fi connectivity
Batch recording
21 CFR Part 11 Compliant

Custom Options


Control panel type
Swingarm 15” touchscreen HMI
Integration possibilities
Wi-Fi connectivity
Batch recording capability
Yes
Change carrier bar tooling
Quick change
Additional hopper
Bulk hopper
