Surge bins for material handling
Ensure efficient material flow and storage in your production line with surge bins that feature a steep 60-degree slope, promoting seamless discharge of solids, powders, and granules.
Stores and Manages Bulk Material Efficiently

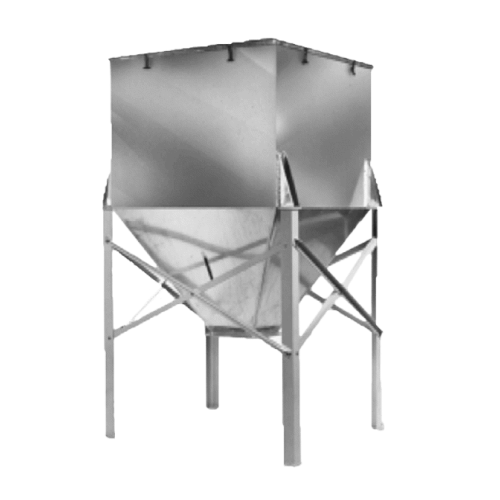

The Aluminum Surge Bins from Coperion K-Tron are engineered for seamless integration into your production line, addressing storage and material handling needs across various industries. With working volumes from 425 to 2125 liters, these bins facilitate the reliable storage of solids, powders, and granules for continuous operations. The design incorporates a steep 60-degree slope for optimized material flow, essential in preventing blockages. Enhanced with quick release hold-down straps and an internally-filtered vent, they ensure secure lid fitting and effective ventilation. Ideal for applications ranging from polyethylene pellets to pharmaceutical tablets, the bins are constructed from durable aluminum with steel support legs, ensuring longevity and corrosion resistance in demanding environments. Compatible with Coperion K-Tron’s Series II 2400 receivers, these units are easily integrated with existing material handling systems, providing a streamlined approach to pre-processing and processing departments.
Benefits
- Enhances operational efficiency by ensuring continuous material flow through optimized hopper design.
- Reduces maintenance requirements with durable aluminum construction and corrosion-resistant components.
- Minimizes installation time and integrates smoothly using standard receiver compatibility.
- Improves process safety with secure quick release straps and effective internal ventilation.
- Versatile application across multiple industries supports diverse production needs.
- Applications
- Chemicals,Food,Nonwovens,Pet food,Plastics recycling,Plastics,Minerals,Pharmaceuticals
- End products
- Polyethylene pellets,Dog kibble,Pharmaceutical tablets,Cement powder,Nonwoven fabric rolls,Recycled pet flakes,Plant-based protein powders,Polymer resins,Chemical granules
- Steps before
- Material Handling,Bulk Material Conveying,Feeding,Mixing
- Steps after
- Discharging,Compounding,Extrusion,Packaging
- Input ingredients
- bulk materials,plastics,recyclable plastics,chemicals,food ingredients,pharmaceutical ingredients,minerals,nonwovens
- Output ingredients
- discharged bulk materials,processed plastics,processed chemicals,handled food ingredients,processed pharmaceutical ingredients,discharged minerals,handled nonwovens
- Market info
- Coperion is known for its expertise in manufacturing industrial compounding and extrusion equipment, bulk materials handling systems, and services for various industries, such as plastics, chemicals, and food processing, with a strong reputation for innovative engineering solutions and customer support.
- Material
- Aluminum
- Working Volume
- 425 to 2125 liters (15 to 75 cu.ft.)
- Hopper Slope
- 60°
- Lid Feature
- Quick release hold-down straps
- Vent
- Internally-filtered
- Discharge Flange matching
- Coperion K-Tron’s 12" sq. probe box
- Lid Drilling
- Standard/Optional to match specific applications
- Support Legs
- Steel
- Sight Glass
- In the hopper section
- Receiver Compatibility
- Series 2400 receivers
- Material Flow Encouragement
- 60° slope
- Lid Access
- Quick release hold-down straps
- Compatibility with Receivers
- Series 2400 Receivers
- Ventilation
- Internally-filtered vent
- Density/particle size
- 0.5–2.5 g/cm³ / 50–1000 µm
- Working Volume
- 425 to 2125 liters (15 to 75 cu.ft.)
- Hopper Slope
- 60°
- Material
- Aluminum
- Support Material
- Steel Support Legs
- Discharge Flange
- 12" sq. probe box match
- Lid Type
- Quick release hold-down straps
- Lid Compatibility
- Series 2400 receiver
- Sight Glass
- Included in hopper section
- Vent
- Internally-filtered vent
- Integration possibilities
- Series II 2400 receiver
- Material construction
- Aluminum with steel support
- Sight glass incorporation
- Yes
- Slope angle of hopper
- 60 degrees
- Quick release hold-down straps
- Yes
- Volume capacity range
- 15 cu.ft. to 75 cu.ft. / 425 to 2125 liters
- Internally-filtered vent
- Yes
- Discharge flange compatibility
- Coperion K-Tron’s 12" sq. probe box
