Supercentrifuge for solid-liquid separation and liquid phase separation
Optimize your separation processes with advanced centrifugal force, achieving precise solid-liquid separation and efficient dual liquid phase separation with minimized contamination risk.
Separates and Clarifies Biopharmaceutical Slurries

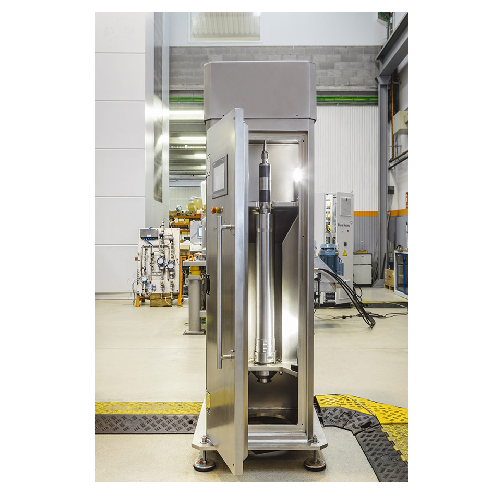

The RINA SRP-AD from Riera Nadeu is a state-of-the-art supercentrifuge designed to meet the rigorous demands of the pharmaceutical and biotech industries. Uniquely featuring a non-invasive automatic solid discharge system, it enhances separation efficiency with minimal contamination risk. Operating at centrifugal forces up to 20,000 xG, it excels in applications such as insulin purification and viral vaccine production. With rotor options crafted from AISI-316L stainless steel and titanium, it offers superior corrosion resistance suitable for harsh chemical environments. Fully compliant with GMP standards, the RINA SRP-AD supports seamless integration into production lines, employing CIP and SIP systems for efficient cleaning. Its robust design, combined with ATEX certification for explosive atmospheres, makes it an ideal solution for diverse industries seeking reliable separation and clarification.
Benefits
- Enhances operational efficiency by eliminating manual intervention with fully automatic solid discharge.
- Ensures high-purity outputs, critical for biopharmaceutical and chemical applications.
- Supports regulatory compliance with GMP standards and ATEX certification for explosive environments.
- Offers superior corrosion resistance, extending equipment life in challenging processing conditions.
- Facilitates rapid project implementation with easy installation and integration into existing systems.
- Applications
- Biotechnology,Upcycling,Fine chemicals,Gas,Oil,Food processing,Biopharmaceuticals,Mining,Pharmaceuticals
- End products
- Viral vaccines,Antibiotic compounds,Insulin purification,Lipid nanoparticle encapsulation,Plastic additives,Protein isolates,Fiber recovery,Oil residue clarification,Mineral purification,Hydrocarbon separation,Flavor extracts,Essential oils
- Steps before
- Emulsification,Purification,Grinding
- Steps after
- Clarification,Sterilization,Filtration,Packing
- Input ingredients
- solid-liquid suspension,two liquid phases,non-miscible liquid phases,solid impurities,low solid concentration
- Output ingredients
- clarified liquid,separated liquid phases,automatically discharged solid,continuous flows of each liquid
- Market info
- Riera Nadeu is known for its expertise in manufacturing centrifuges and drying equipment, particularly for industrial applications. They are reputed for high-quality, customized, engineered-to-order solutions in separation technologies for various industries.
- Speed
- up to 18,000–25,000 rpm
- Capacity
- 0.25–5.5 L
- G factor
- up to 20,000 xG
- Automation
- Non-invasive automatic solid discharge
- Material
- AISI-316L Stainless Steel and Titanium rotor
- Motor power
- up to 13,300 hp
- Cooling/Heating option
- Available
- CIP/SIP systems
- Available
- Explosion proof
- CE ATEX
- Working mechanism
- Centrifugal separation
- Integrated steps
- Automatic solid discharge
- Automation level
- Non-invasive,automatic
- Batch vs. continuous operation
- Continuous
- Cleaning method
- CIP/SIP available
- Contamination control
- Automatic,non-invasive process
- Abrasion resistance
- AISI-316L stainless steel
- Cleanability
- CIP/SIP systems
- Corrosive resistance (e.g. acids)
- Titanium rotor
- Material
- AISI-316L stainless steel,Titanium
- Rotor type
- Vertical tubular rotor
- Bowl diameter
- 0.25 to 10 inches
- Bowl height
- 2 to 57 inches
- Volume
- 0.01 to 0.35 cu. ft.
- Discharge method
- Non-invasive automatic solid discharge
- Footprint
- Compact
- G force
- up to 20,000 xG
- Installation type
- Easy to install and operate
- Material
- AISI-316L stainless steel,Titanium
- Rotor Configuration
- Vertical tubular rotor
- Heating/Cooling Options
- CIP/SIP systems
- ATEX Certification
- Explosive atmospheres compliance
- Control Panel Type
- Servomotor-driven
