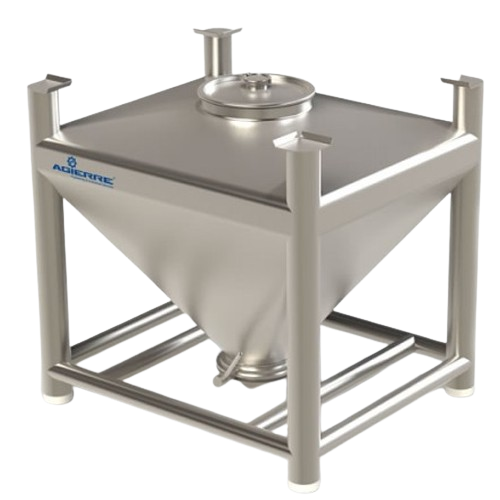

Stainless steel pharma bin for powder containment

Ensure precise powder handling and containment with this stainless steel bin, designed for seamless integration into your production line, enhancing efficiency in mixing, blending, and discharge operations.

Handles and Contains Pharmaceutical Powders Efficiently

The BIN Pharma, crafted by AGIERRE, is a robust solution for handling pharmaceutical powders, nutraceuticals, and fine chemicals with precision and safety. Engineered from AISI 316L stainless steel, this containment system optimizes powder flow through its pyramid shape with a 50-60° inclination, eliminating dead zones and ensuring complete discharge. It accommodates various valves for seamless integration into your production line, catering to both gravity-fed and pneumatic systems. Designed for stacking, it maximizes storage efficiency while the mirror-polished internal surface and CIP-ready construction simplify maintenance and uphold hygiene standards. Suitable for batch, manual, or continuous operations, the BIN Pharma is cGMP compliant, guaranteeing compatibility with strict regulatory environments.

Benefits

  • Enhances product purity by preventing contamination with seamless powder discharge.
  • Lowers storage costs through efficient stackable design.
  • Ensures regulatory compliance with cGMP standards.
  • Simplifies maintenance with easy-clean stainless steel construction.
  • Integrates smoothly into existing systems, supporting flexible production configurations.

General


Applications
Supplements,Vitamins,Fine chemicals,Nutraceuticals,Pharmaceutical powders,Pharmaceuticals
End products
Mineral supplements,Nutraceutical blends,Protein powders,Capsule powders,Powdered chemical compounds,Vitamin supplements,Herbal supplements,Excipient mixtures,Tablets,Pharmaceutical granules
Steps before
Drying,Powder Loading,Mixing
Steps after
Dust-free Discharge,Sterilization,Packing,Tablet Pressing
Input ingredients
pharmaceutical powders,powder mixtures
Output ingredients
compressed tablets,encapsulated products,packaged pharmaceuticals
Market info
Agierre is known for its expertise in designing and manufacturing customized engineered-to-order industrial equipment, with a strong reputation for innovation, quality, and delivering tailored solutions to meet specific client needs in various industries.

Technical Specifications


Material
Stainless Steel AISI 316L / AISI 304
Container Type
Pharma BIN
Design
Pyramidal with 50-60° inclination
Capacity
300L to 1500L
Surface Finish
Mirror polished internally,satin externally
Automation
Manual / Auto feeding
Valve Options
Butterfly Valve / Rotary Valve
Cleaning
CIP / OEB4 Containment
Stackable Design
Yes
Transportation
Pallet jack compatible

Operating Characteristics


Batch vs. continuous operation
Batch
Cleaning method
CIP
Automation level
Manual / PLC

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Shape
Pyramidal with adequate inclination (50-60°)
Base Type
Rectangular or square
Material
Stainless Steel AISI 316L and 304
Surface Finish
Mirror-polished internally,satin-finished externally
Lid Type
Clamp closure with silicone gasket and safety pin
Stackable
Yes
Loading Port
Clamp-type with screen-gasket
Footprint
Suitable for pallet truck movement
Discharge Method
Butterfly valve,rotary valve,or product recovery shoe
Volume
300L,850L,1200L,1300L,1500L

Custom Options


Material of Construction
Stainless Steel AISI 316L
Surface Finish
Mirror polished internally,Satin externally
Discharge Valve Options
Butterfly Valve,Rotovalve
Structure Type
Stackable
Base Shape
Rectangular or Square
Lid Features
Silicone gasket,Clamp closure with safety pin
Cleaning Features
Clamp for screen-gasket filter
Bin Shape
Pyramidal with 50-60° Inclination
Integration with Machinery
Gravity or pneumatic feed to tablet press,capsule filling,or sachet machines
