Small scale cashew nut processing plant
Optimize your nut processing with our comprehensive cashew line, designed to streamline operations from initial grading to final sorting, ensuring high-quality, diverse end-products in each batch.

Processes and Peels Cashew Nuts Efficiently
The small scale cashew nut processing line from Zhengzhou Taizy Machinery Co., Ltd. offers a robust solution for nut processing companies and snack manufacturers. This line specializes in grading, shelling, and peeling cashew nuts to produce high-quality end products such as salted, honey-roasted, and chocolate-covered cashews. Utilizing a series of semi-automatic machines, it includes hoists, grading machines, steam cookers, shelling machines, and more, enabling streamlined processing from pre-processing through final conditioning. With a capacity of handling up to 500 kg/hour, this line optimizes production efficiency with a focus on precise grading and shelling to enhance product integrity. Energy-efficient designs and sturdy construction adhere to food processing standards, making it a reliable choice for processors seeking reduced manual labor and pollution-free operations. Customizable to meet specific requirements, it ensures seamless integration into existing production lines, backed by Taizy Machinery’s engineering support for tailored solutions.
Benefits
- Streamlines cashew processing, ensuring uniform product quality and reducing manual handling.
- Enhances production efficiency, handling up to 500 kg/hour with minimal operator intervention.
- Lowers energy usage, contributing to cost savings and environmental responsibility.
- Customizable design allows easy adaptation to specific processing needs and production scales.
- Complies with food safety standards, ensuring safe and clean processing operations.
- Applications
- Nuts,Sweets,Snacks
- End products
- Cashew brittle,Chocolate-covered cashews,Spiced cashew nuts,Salted cashews,Honey-roasted cashews
- Steps before
- Harvesting,Cleaning,Dehusking
- Steps after
- Flavoring,Packaging,Roasting
- Input ingredients
- raw cashew nuts,unpeeled cashew nuts
- Output ingredients
- peeled cashew nuts,shelled cashew nuts,graded cashew nuts,dried cashew nuts
- Market info
- Taizy Food Machinery is known for manufacturing industrial food processing equipment, specializing in engineered-to-order (ETO) machinery. They have a reputation for innovative, high-quality solutions tailored to meet various customer specifications globally.
- Hoist Size
- 3500*700*2500mm
- Hoist Weight
- 150 kg
- Hoist Power
- 0.75kw
- Hoist Capacity
- 400-500kg/h

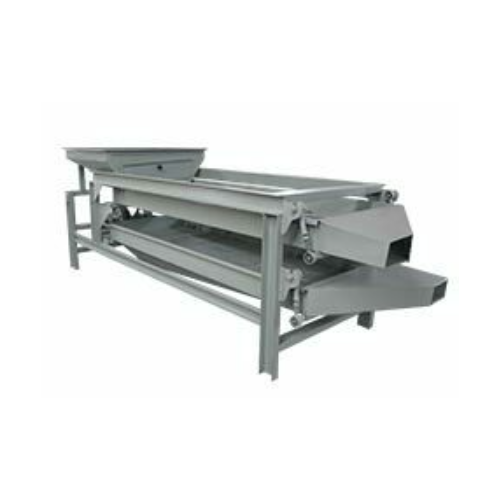

- Grading Machine Size
- 2600*1050*1800 mm
- Grading Machine Weight
- 1000 kg
- Grading Machine Power
- 3.3kw
- Grading Machine Capacity
- 400-500kg/h
- Steam Cooker Size
- 2500*1600*3250 mm
- Steam Cooker Weight
- 420 kg
- Steam Cooker Power
- 18kw
- Steam Cooker Capacity
- 400-500kg/h
- Cashew Shelling Machine Size
- 1400*1.050*1300 mm
- Cashew Shelling Machine Weight
- 420 kg
- Cashew Shelling Machine Power
- 3kw
- Cashew Shelling Machine Capacity
- 100-150kg/h
- Shell Kernel Screening Machine Size
- 3500*900*900mm
- Shell Kernel Screening Machine Weight
- 280kg
- Shell Kernel Screening Machine Power
- 1.1kw
- Shell Kernel Screening Machine Capacity
- 400-500kg/h
- Cashew Nut Drying Machine Size
- 4100*1800*2300 mm
- Cashew Nut Drying Machine Weight
- 1200 kg
- Cashew Nut Drying Machine Power
- 12.55kw
- Cashew Nut Drying Machine Capacity
- 400-500kg/h
- Cashew Nut Peeling Machine Size
- 1000*700*1600 mm
- Cashew Nut Peeling Machine Weight
- 100 kg
- Cashew Nut Peeling Machine Power
- 0.22kw
- Cashew Nut Peeling Machine Capacity
- 400-500kg/h
- Cashew Nut Sorting Machine Size
- 2500*1100*1600 mm
- Cashew Nut Sorting Machine Weight
- 400 kg
- Cashew Nut Sorting Machine Power
- 1.1kw
- Cashew Nut Sorting Machine Capacity
- 400-500kg/h
- Working mechanism
- Semi-automatic
- Integrated steps
- Grading,shelling,drying,peeling,sorting
- Automation level
- Semi-automatic
- Batch vs. continuous operation
- Batch
- Cleaning method
- Manual
- Energy efficiency
- Low energy consumption
- Abrasion resistance
- Yes
- Biological compatibility
- Food grade materials
- Cleanability
- Easy to clean,CIP-compatible
- Corrosive resistance (e.g. acids)
- Stainless steel construction
- Density/particle size
- Varies with cashew size
- Machine footprint
- Hoist
- Weight
- Hoist
- Discharge method
- Gravity-dependent through graded sieves
- Control panel type
- Speed regulation motor for hoist
- Control panel type
- Adjustable speed regulation motor
- Adjustable machine settings
- Gap adjustments for feed hopper and blade height
