Single use powder handling bags for pharmaceutical ingredients

Achieve contamination-free powder transfers with ease, maintaining sterility and integrity throughout the handling and storage process, ideal for aseptic manufacturing environments requiring cost-effective and efficient single-use solutions.

Ensures Sterility and Containment in Powder Handling

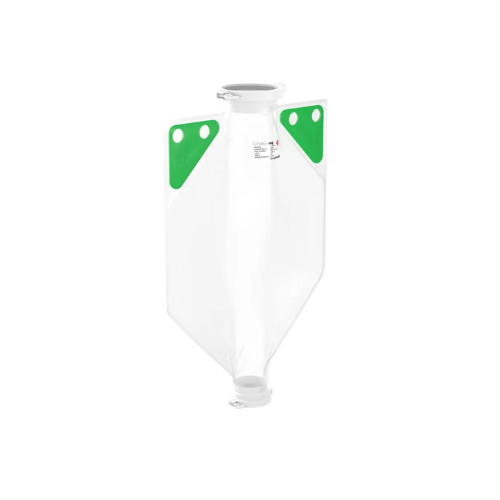

The ChargeBag® PE-S from ChargePoint Technology is a single use powder transfer solution designed specifically for aseptic processing in pharmaceutical and biotech environments. This system reduces the risk of cross-contamination and eliminates the need for cleaning and validation, making it ideal for handling sensitive bio-pharmaceutical ingredients and powders. Manufactured with HiPureTM ULP7 film, it provides mechanical strength and anti-static properties, ensuring product safety and purity. The ChargeBag® PE-S integrates seamlessly with existing systems via an industry standard tri-clamp ferrule, facilitating easy connection to various transfer devices or process vessels. Each bag is pressure decay tested and gamma sterilized, offering superior containment and sterility assurance. With dedicated lifting points and an HDPE reinforced handle, it supports ergonomic manual or automated lifting processes, catering to efficient operations. The ChargeBag® PE-S meets rigorous chemical, biological, and physical compliance standards, ensuring compatibility with cGMP manufacturing facilities.

Benefits

  • Minimizes cross-contamination risks, enhancing product safety and compliance.
  • Eliminates cleaning and validation time, resulting in cost savings and increased operational efficiency.
  • Ensures reliable aseptic conditions with gamma sterilization and pressure decay testing.
  • Facilitates seamless integration and adaptability with standard process connections.
  • Enhances ergonomic handling and lifting, reducing manual labor strain.

General


Applications
Vial stoppers,Solid dose formulation,Buffer media powders,Api,Tablets,Excipients,Bio-pharmaceutical powders,Formulations,Pharmaceutical ingredients,Aseptic processing,Capsules,Bioprocessing
End products
Steps before
Chemical synthesis,Drying,Grinding
Steps after
Aseptic processing,Filling,Packing
Input ingredients
pharmaceutical ingredients,bio-pharmaceutical powders,buffer powders,media powders,API,excipients,formulations,tablets,capsules,vial stoppers
Output ingredients
bio-pharmaceutical powders,chemical synthesis products,solid dose formulations,aseptic processing components,bioprocessing materials
Market info
Chargepoint Technology is known for its expertise in designing and manufacturing high containment and sterile transfer solutions for pharmaceutical and biopharmaceutical industries, particularly in powder containment and aseptic transfer systems.

Technical Specifications


Pressure Decay Tested
100%
Sterility
Gamma Sterilised
Cleanroom Classification
ISO 6
Film Material
HiPure™ ULP7
Material Type
LLDPE Film
Anti-static Properties
Yes
Bag Integration
Tri-clamp Ferrule
Handle Type
HDPE Reinforced
Compatibility
Bio-pharmaceutical Powders
Temperature Range
Not Specified
Containment Level
High
Ergonomic Design
Yes
Connectability
Easy Adaptation

Operating Characteristics


Batch vs. continuous operation
Batch
Sterility assurance
Gamma sterilised
Ergonomic handling
HDPE reinforced handle
Powder transfer method
Single-use system
Cross-contamination risk reduction
High integrity construction
Adaptability to existing processes
Tri-clamp ferrule connection
Containment level
High containment
Anti-static handling
Non-migrating additive
Visual inspection
Transparent material

Material Compatibility


Abrasion resistance
High
Biological compatibility
Yes
Cleanability
Single Use,No Clean Required
Corrosive resistance (e.g. acids)
Moderate
Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Visibility
Transparent for visual confirmation
Containment level
High containment with split butterfly valve option


ISO Cleanroom Standards
ISO 6

Physical Characteristics


Bag Type
Single Use Powder Transfer Bag
Material
HiPure™ ULP7 LLDPE film
Handle Type
HDPE Reinforced Handle
Transparent Characteristics
Yes,pliable and transparent
Anti-static Feature
Non-migrating,Anti-static Additive
Sterilization Method
Gamma Sterilized
Connection Method
Hygienic Tri-clamp Ferrule
Testing
100% Pressure Decay Test

Custom Options


Bag type
Single Use
Material
HiPure™ ULP7 LLDPE Film
Handle
HDPE Reinforced
Anti-static Property
Permanent,Non-migrating
Connection Type
Tri-clamp Ferrule
Valve Integration
Passive Split Butterfly Valve
Sterilisation Method
Gamma Sterilised
