Sieve for bean to bar chocolate filtering

Ensure consistency and safety in your chocolate production by eliminating impurities and excess fibers through precise sieving, delivering a smoother final product that enhances the texture and quality of your bean-to-bar chocolate.

Filters and Sifts Chocolate for Impurity Removal

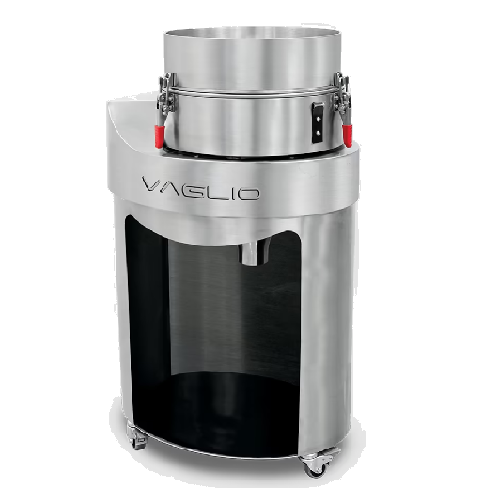

The Vaglio by Selmi is a specialized sieving machine designed for Bean to Bar chocolate production lines. It features a robust vibration system that sifts chocolate mass post-refinement, efficiently removing excess fiber and foreign particles. This contributes to a smooth product texture, essential for high-quality chocolate bars and truffles. With a sieving diameter of 390 mm and an hourly production capacity of 50-60 kg, the Vaglio integrates seamlessly into continuous production setups. Its compact form and enhanced sieving surfaces ensure optimal performance while remaining easy to clean and maintain. The machine’s energy-efficient design aligns with modern sustainability goals, operating at 0.18 kW power. Its construction prioritizes durability and hygiene, meeting strict food industry standards, making it ideal for artisanal chocolate makers and industrial-scale producers alike.

Benefits

  • Ensures consistent chocolate texture by effectively removing impurities.
  • Enhances product safety with reliable sieving and sifting processes.
  • Minimizes maintenance downtime with user-friendly cleaning design.
  • Integrates seamlessly into existing production lines for continuous operation.
  • Optimizes energy efficiency, reducing operational costs.

General


Applications
Cocoa,Nuts,Sweets,Spreadable creams,Chocolate,Truffles
End products
Chocolate truffles,Bean to bar chocolate,Milk chocolate,Spreadable chocolate creams,Chocolate bars,Specialty chocolate,Dark chocolate,Cocoa mass,Nut pastes
Steps before
Roasting,Crushing,Grinding,Refining
Steps after
Conching,Molding,Cooling,Tempering,Packing
Input ingredients
refined Bean to Bar chocolate,residual excess fibre,foreign bodies
Output ingredients
sifted Bean to Bar chocolate,output compound of about 16 microns,filtered chocolate
Market info
Selmi is renowned for manufacturing high-quality chocolate processing equipment, such as tempering, enrobing, and cooling machines, with a strong reputation for precision, innovation, and reliability in the confectionery and chocolate industry.

Technical Specifications


Electrical Specification
400 V three phase - 50 Hz
Power Required
0.18 Kw - 0.61 A - 5 poles
Hourly Production Rate
50-60 kg
Dimensions
620x710x1460 mm (LxWxH)
Sieve Diameter
390 mm
Granulometry
About 16 microns

Operating Characteristics


Working mechanism
Vibrating sieve
Integrated steps
Sifting after refining
Batch vs. continuous operation
Continuous inline
Automation level
Automated sieve
Cleaning method
Easily removable and washable

Material Compatibility


Abrasion resistance
Yes
Biological compatibility
Food-grade materials
Cleanability
Easy to clean,removable parts
Corrosive resistance (e.g. acids)
Stainless steel components
Density/particle size
Fine particles,approx. 16 microns

Product type Characteristics


Particle size
16 microns
Granulometry
Imperceptible to the palate
Material compatibility
Chocolate
Vibration system
Increased intensity
Capacity
50-60 kg/hour
Compact dimensions
620x710x1460 mm

Physical Characteristics


Machine dimensions
620x710x1460 mm
Sieve diameter
390 mm
Discharge method
Vibration system
Compact footprint
Yes
Loading hopper
Easily removable and washable

Custom Options


Compact dimensions
620x710x1460 mm
Vibration intensity
Adjustable
Sieve surface area
Increased
Loading hopper
Removable and washable
