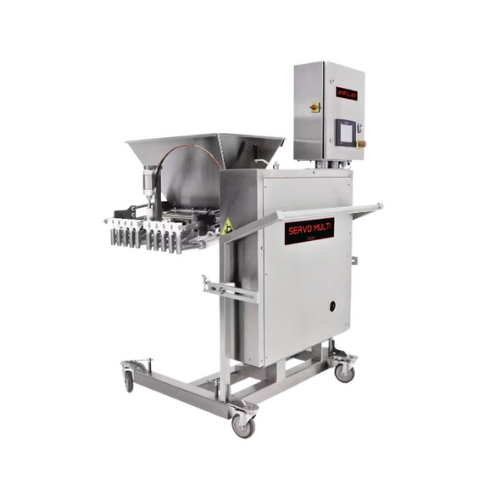

Servo multi piston depositor for bakery production
Streamline your bakery production with precise portion control and high-speed depositing, ensuring consistent product quality and reducing labor costs on the production line.
Deposits and Controls Portions in High-Speed Applications
The Servo Multi Piston Depositor from Unifiller is meticulously engineered for high-speed bakery and food production lines, offering precision portion control and versatile depositing capabilities. Leveraging servo-driven technology, it ensures consistency across a range of applications, from desserts to cosmetics. Its integrated nozzle bridge with computer-controlled diving action allows for seamless integration with automated systems, optimizing throughput and efficiency. The machine boasts a capacity of up to 80 cycles per minute, with a wide deposit range to accommodate various product sizes and types, including macaroons, cheesecakes, and vitamin capsules. Designed with a programmable touch screen and multiple deposit modes, this depositor offers flexibility for customization and process control. The use of less compressed air compared to pneumatic alternatives enhances energy efficiency, while the easy washdown feature streamlines maintenance. With port configurations from 4 to 12 and a 16 US Gal hopper, the depositor is adaptable to both small-batch and large-scale productions, ideal for operations in bakeries, food production, and beyond.
Benefits
- Enhances process efficiency by reducing energy usage through minimized compressed air consumption.
- Increases production versatility with multiple port configurations and programmable deposit modes.
- Supports easy integration into automated lines, reducing manual intervention and potential errors.
- Simplifies maintenance with a tool-free, easy washdown design, minimizing operational interruptions.
- Boosts production accuracy with precise portion control, ensuring consistent product quality.
- Applications
- Baked goods,Macaroons,Pet food,Cosmetics,Pharma,Pies,Desserts,Cake batter
- End products
- Vitamin capsules,Cupcake batter,Dog food pellets,Cheesecakes,Tartlets,Face cream,Lip balm,Fruit pies
- Steps before
- Mixing,Batch Preparation
- Steps after
- Baking,Cooling,Packaging
- Input ingredients
- cake batter,pie filling,single serve dessert ingredients
- Output ingredients
- macaroons,single serve desserts,pies,portioned cake batter
- Market info
- Unifiller Systems is known for manufacturing innovative and precise food processing and bakery equipment, specializing in automated portioning and depositing solutions that enhance efficiency and consistency for bakeries and food production lines globally.
- Speed
- Up to 80 cycles per minute
- Deposit Range
- 0.2–18 oz per nozzle
- Particle Size
- < 3/4″ cubes (19 mm)
- Power Requirement
- Air
- Automation
- Programmable touch screen with 6 deposit modes
- Port Configurations
- 4,6,8,10 and 12 port configurations
- Hopper Capacity
- 16 US Gal (60 litres)
- Washdown
- Easy Washdown
- Control Panel
- No tools required
- Working mechanism
- Servo driven electric depositor
- Automation level
- Programmable touch screen
- Batch vs. continuous operation
- Batch
- Cleaning method
- Easy washdown
- Port configurations
- 4,6,8,10,12 port
- Portion control
- Accurate portion control through each nozzle
- Deposit modes
- 6 deposit modes to choose from
- Cycle speed
- Up to 80 cycles per minute
- Cleanability
- Easy Washdown
- Density/particle size
- ,lt
- 3/4" cubes (19 mm)
- Hopper Size
- 16 US Gal (60 litres) rectangular
- Nozzle Bridge
- Computer controlled 1.75″ (4.4cm) diving action
- Machine Footprint
- Compact
- Port Configurations
- 4,6,8,10,and 12 port options
- Control Panel
- Programmable touch screen
