Separation of cutting fluids from metal chips

Enhance your production line efficiency by effectively separating cutting fluids, recovering valuable oils from metal chips, and delivering superior moisture control for various materials without compromising speed or throughput.

Hydro-extracts and Separates Fluids from Solids

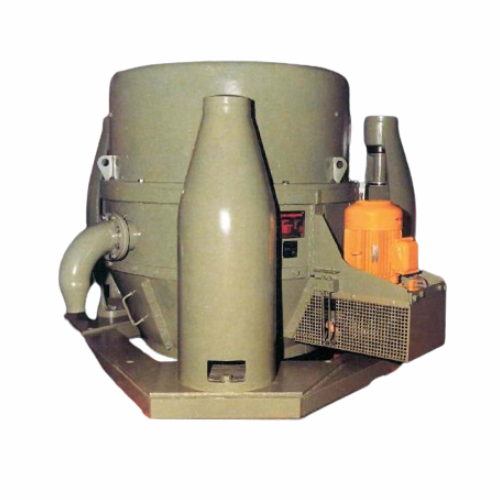

The HEINKEL Vertical De-oiling Pusher Centrifuge series, including models V 600 IS, V 750 IS, V 900 IS, and V 1100 IS, is engineered to efficiently separate fluids from metal chips and plastic pellets. Built with a unique vertical design, it utilizes a rotating perforated basket and a hydraulically operated pusher plate to optimize hydro-extraction. This centrifuge is ideal for applications in metal recycling, chemical production, and food processing, producing high-purity cutting fluid-extracted metal chips and de-oiled plastic pellets.

Designed for continuous high-speed operations, these models accommodate varying throughput needs, handling up to 10 tons per hour, contingent upon material type. Automation is enhanced with adjustable pusher frequency and pre-selectable centrifugal forces, providing flexibility and optimizing material retention time for superior separation results. Constructed with durable materials, the centrifuge ensures resilience in harsh industrial environments while offering maintenance ease through accessible design features.

Engineered for seamless integration into existing production lines, this equipment is ideal for processing, cleaning, and environmental departments, offering significant energy savings with minimal operator intervention. The series supports fast installation and commissioning, backed by HEINKEL’s engineering expertise and global technical support network.

Benefits

  • Enhances material purity and recycling efficiency by effectively removing fluids from solids.
  • Increases production capacity with customizable retention time and pusher frequency adjustments.
  • Minimizes operational costs through continuous high-speed operation and reduced energy consumption.
  • Integrates seamlessly with existing production lines, optimizing overall workflow.
  • Reduces maintenance efforts with robust construction and easy access for cleaning.

General


Applications
Chemicals,Fine chemicals,Metal chips,Food products,Recycling,Pharmaceuticals
End products
Pharmaceutical intermediates,De-oiled plastic pellets,Recovered coolant oils,Active pharmaceutical ingredients (apis),Food flavoring extracts,Dewatered chemical compounds,Cutting fluid-extracted metal chips,Extracted edible oils
Steps before
Cutting,Chip Processing,Production of Metal Chips,Plastic Pellet Formation
Steps after
Liquid Recovery,Oil Separation,Filtration,Delivery to Conveyor,Coolant Processing
Input ingredients
cutting fluids,coolants,steel chips,cast chips,metal chips,plastic pellets
Output ingredients
recovered liquids,oil,de-oiled chips,separated coolants
Market info
Heinkel is known for manufacturing high-quality industrial equipment, specializing in centrifuges, dryers, and other engineered-to-order machinery for the chemical, pharmaceutical, and environmental sectors, with a reputation for innovation and reliability.

Technical Specifications


Basket diameter
600 mm - 1150 mm
Basket height
390 mm - 580 mm
Max. Speed
650 - 1100 1/min
Steel capacity
1.2 - 10 t/h
Brass capacity
1.2 - 10 t/h
Aluminium capacity
0.4 - 3 t/h
Length
1830 mm - 3200 mm
Width
1670 mm - 2800 mm
Height
1335 mm - 2120 mm
Weight
3700 kg - 9100 kg
Pusher plate clock frequency
up to 12 strokes per minute
Pusher stroke distance
about 1/4 of the basket height

Operating Characteristics


Working mechanism
Centrifugal force separation
Integrated steps
Filling,hydro-extraction,discharging
Automation level
Hydraulically operated pusher plate
Batch vs. continuous operation
Batch process
Clock frequency of pusher plate
Up to 12 strokes per minute
Retention time control
Adjustable clock frequency

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Machine footprint length
1830–3200 mm
Machine footprint width
1670–2800 mm
Machine footprint height
1335–2120 mm
Weight
3700–9100 kg
Basket diameter
600–1150 mm
Basket height
390–580 mm
Max Speed
650–1100 1/min
Discharge method
Hydraulic pusher plate

Custom Options


Pusher plate clock frequency
Up to 12 strokes per minute
Basket diameter range
600–1150 mm
Retention time optimization
Based on centrifugal force and chip characteristics
Hydraulic operation
Hydraulic pusher plate
Integrated Conveyor Device
For central and even filling
Filtrate Housing
For liquid collection and drainage
