Semi-automatic filling solution for syringes and vials in isolators

Achieve precise aseptic fill-finish operations for injectable pharmaceuticals with this bench-top solution, ideal for maintaining sterility and consistency in lab-scale syringe, cartridge, and vial production.

Fills, Stopers, and Crimps Injectable Containers

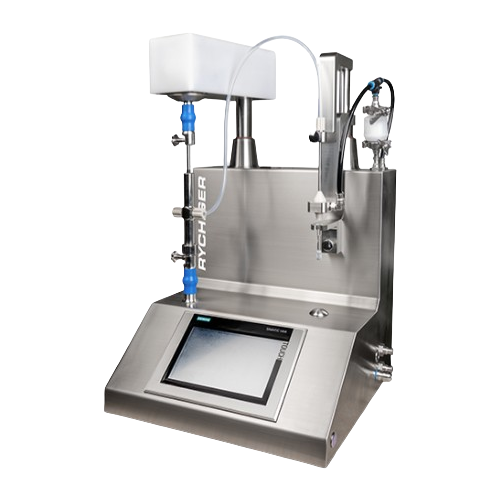

The Z-Lab by Rychiger is a series of bench-top semi-automatic modules specifically engineered for the precise lab-scale production of injectable parenteral preparations. This versatile equipment excels in filling, stoppering, and crimping syringes, cartridges, and vials, making it indispensable for pharmaceutical, biotech, and life sciences applications. Utilizing Siemens PLC control for reliable operation, it allows for flexible handling of various container types and product viscosities, supporting batch operations with capacities of 5 to 10 containers per minute. The system integrates seamlessly with isolators and features a user-friendly two-button operation for enhanced safety. Designed to meet cGMP requirements, it also supports integration with containment systems and VHP cycles, offering a comprehensive framework for high-quality aseptic processing. The compact design with integrated electronics allows easy transition between different product types, ensuring optimal space utilization in laboratory environments. Additionally, the modularity of Z-Lab provides customization options to adapt to specific processing needs, ensuring alignment with your unique production requirements.

Benefits

  • Enhances production flexibility with interchangeable formats for syringes, vials, and cartridges.
  • Minimizes human error and increases safety through intuitive two-button operation.
  • Ensures process integrity and product consistency with automated recipe management.
  • Facilitates seamless integration into cleanroom environments, supporting aseptic processing.
  • Reduces setup time and manual intervention, optimizing lab-based pilot production.

General


Applications
Pharmaceutical solutions,Syringes,Vials,Injectable parenteral preparations,Cartridges
End products
Hormone therapies,Antibiotic vials,Vaccines,Pain management syringes,Rehydration solutions,Vitamin b12 injections,Insulin injections
Steps before
Cleanroom preparation,Isolator setup,Ingredient mixing,Container preparation
Steps after
Sterilization,Labeling,Packing,Quality Assurance
Input ingredients
syringes,cartridges,vials,injectable preparations,parenteral preparations
Output ingredients
filled syringes,filled cartridges,filled vials,aseptic injectable products,bubble-free products
Market info
Rychiger is known for engineering high-precision filling and sealing machines for the food and medical industries, offering customized, innovative automation solutions, with a strong reputation for reliability and exceptional engineering expertise in the packaging sector.

Technical Specifications


Operation speed
5 - 10 containers/min
Filling range
0.2-150 ml
Weight
74 kg
Dimensions
0.48 x 0.46 x 0.75 m
Automation
Siemens PLC control
Filling technologies
All common technologies
Container types
Syringes,cartridges,vials
Load cell option
100% IPC
Cycle activation
1 cycle per operation
Integration
Designed for isolators
Batch documentation
cGMP documentation
Compatibility
VHP cycle
Control interface
9 inch HMI

Operating Characteristics


Working mechanism
Semi-automatic
Integrated steps
Filling,stoppering,crimping
CIP/SIP suitability
Not specified
Batch vs. continuous operation
Batch
Automation level
PLC-controlled
Cleaning method
Not specified
Changeover time
Not specified
Compatibility with isolation systems
Isolator
Operator safety
Two-button operation
Cycle activation
1 cycle per operation

Product type Characteristics


Container type
Syringes,cartridges,vials

Physical Characteristics


Machine footprint
0.48 x 0.46 x 0.75m
Machine weight
74 kg
Compact design
Yes
Control panel
9 inch HMI

Custom Options


Control panel type
Siemens PLC control
Integration possibilities
Integration inside Isolator
HMI type
9 inch,integrated or remotely positioned
Flexibility for container type
Easy transition between syringes,vials,or cartridges
Safety operation
Two button safe operation
